Before operate the 3735DUO, please read this before.
Install the extruder

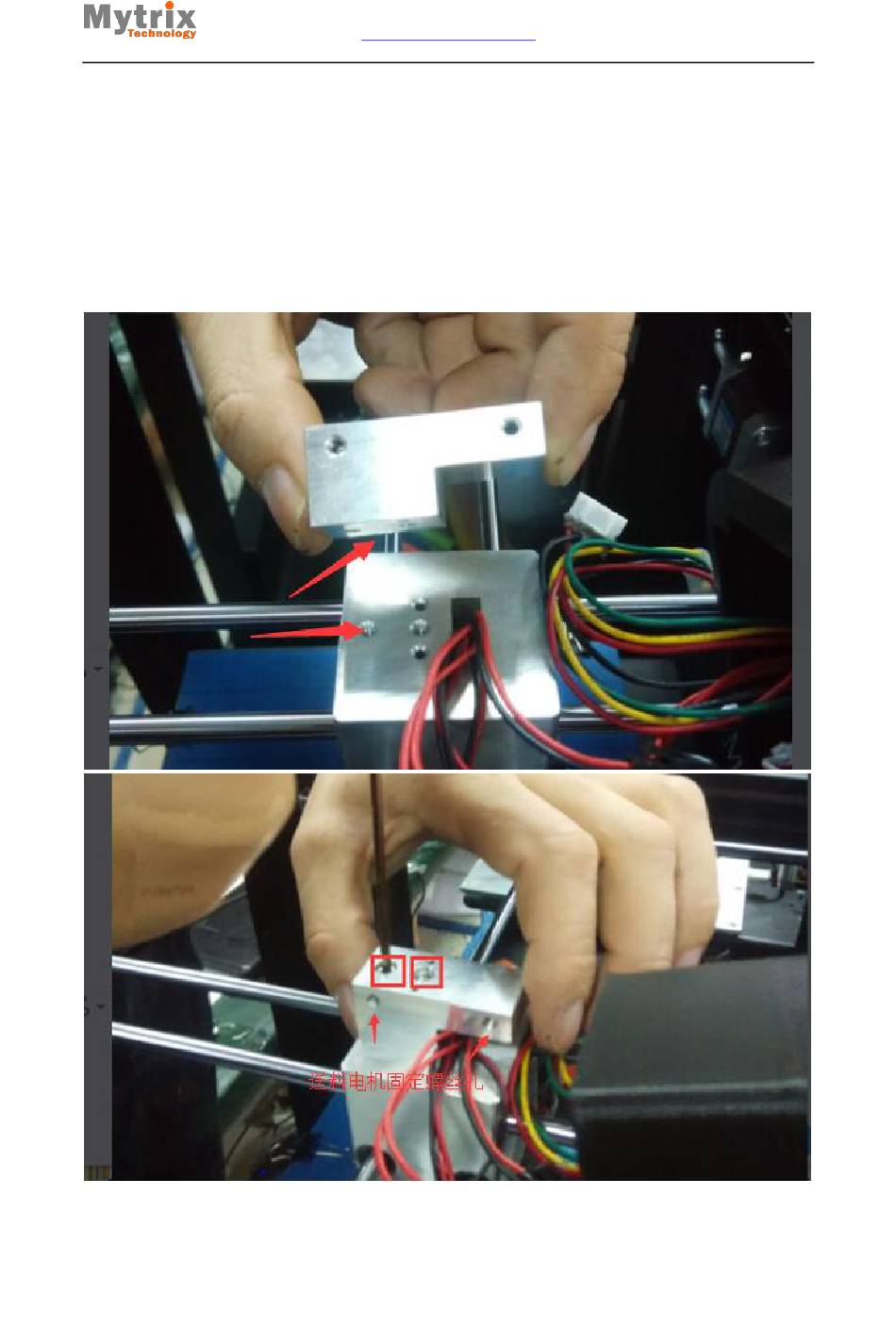

1, Align the screw holes of the fixed block to the cross-shaped sliding
table, then install the 2 screws as below.
2, Tighten the 2 fastening bolt in the 2 side of the motor to the fixed
1 / 9
Advertisement
Related Manuals for MYTRIX 3735DUO
Summary of Contents for MYTRIX 3735DUO
- Page 1 Mytrix Technology - http://www.mytrixtech.com Before operate the 3735DUO, please read this before. Install the extruder 1, Align the screw holes of the fixed block to the cross-shaped sliding table, then install the 2 screws as below. 2, Tighten the 2 fastening bolt in the 2 side of the motor to the fixed...
- Page 2 Mytrix Technology - http://www.mytrixtech.com block. 3, connect the power wire to the motor correctly as marked, or the motor will reverse when loading, please do as below. 2 / 9...
- Page 3 Mytrix Technology - http://www.mytrixtech.com 4.1，install the front fan case, put the main wire in the groove of the case and use the cable tie fix it to the case and connect the white plugs, show as below. 4.2 Before install the back case, put the wires from cross-shaped sliding table in the groove, avoiding the back case pressing the wires.
- Page 4 Mytrix Technology - http://www.mytrixtech.com 4 / 9...
-
Page 5: Load The Filament
Mytrix Technology - http://www.mytrixtech.com Load the filament 1, put the filament into the extruder at the same time as below, make sure the filament go through the gear. 5 / 9... -
Page 6: Software Setting
Mytrix Technology - http://www.mytrixtech.com 2, rotate and press the knob, choose prepare-》change filament-》 load .wait for the loading, then put the 2 tubes into the upper hole of the fan case. Show as below. Software Setting 1, Mixing color model. - Page 7 Mytrix Technology - http://www.mytrixtech.com Imagine that, you are facing to the 3735DUO, and the yellow filament load into the left motor and pink filament load into the right motor. If you set the parameters as below, Color A as 0 and Color B as 100.and...
- Page 8 Mytrix Technology - http://www.mytrixtech.com 2, Click to load the two file of dual color model as below. 3, after loading the files, move the cursor to the showing space and click the right bottom of the mouse then choose and click the dual extrusion...
- Page 9 Mytrix Technology - http://www.mytrixtech.com 3, click the mode with the right bottom, choose and click center on platform 9 / 9...
