Mircom Universal Series Installation Instructions

Gooseneck Mounting
The TX3-UGA and TX3-USGA Universal Series Gooseneck Adaptors are used to connect the universal series
enclosures to a pedestal or other type of enclosure. The TX3 universal enclosure uses the supplied screws and the four
mounting holes at the back of the enclosure to connect to the gooseneck adaptor.

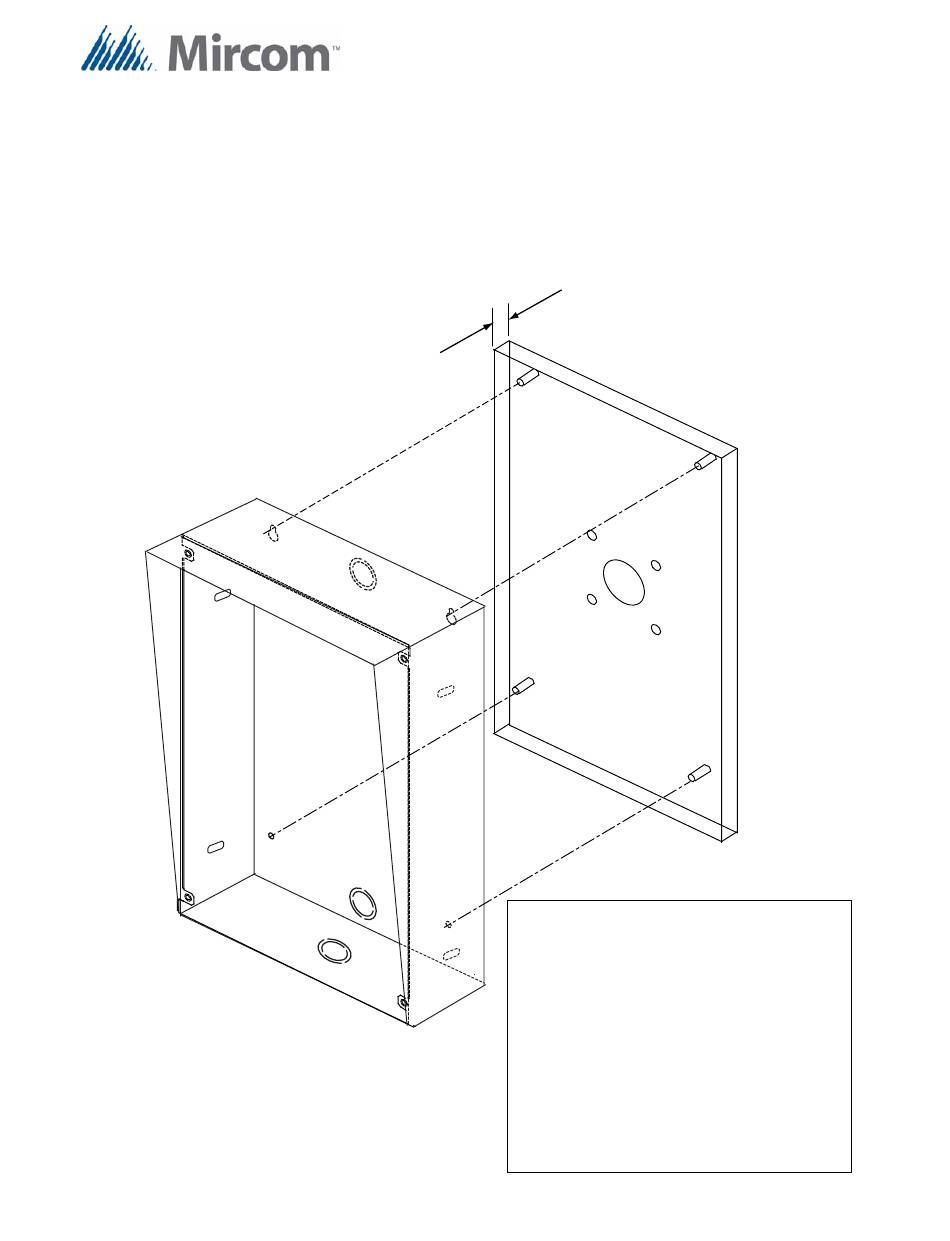

Figure 1: TX3-UGA Universal Series Gooseneck Adaptor
TX3 UNIVERSAL
ENCLOSURE
Dimension of the Universal Enclosure without
the flush trim is:
16.25" H x 10.6" W x 2.75" D at bottom, 3" at top
Model TX3-UGA and TX3-USG
Universal Series Gooseneck Adaptors
0.625"
0.4" dia
Feed the wires from the TX3 telephone access
through the centre large hole of the gooseneck
adaptor. Then mount the gooseneck adaptor to the
pedestal or other enclosure. Secure the gooseneck
with four screws whose holes surround the centre
large hole.
Place the TX3 backbox on top on the gooseneck
adaptor. Use the four 8-32" screws provided with the
TX3 panel to fasten the TX3 backbox to the goose-
neck adaptor through the mounting holes to the
standoffs on the gooseneck adaptor as shown by
dotted line.

Installation Instructions

TX3-UGA
GOOSENECK ADAPTOR
0.4" dia
0.4" dia
0.4" dia
LT-983 Rev 0
September 2009
