TRULUX DMX Receiver
12-36V

INSTALLATION INSTRUCTIONS

REC-DMX-5A-4Z
WARNING
These products may represent a possible shock or
fire hazard if improperly installed or attached in any
way. Products should be installed in accordance
with these instructions, current electrical codes,
and/or the current National Electric Code (NEC).
WARNING
This receiver requires a 12-36V DC power
supply (LED-DR series driver recommended, sold
separately). Disconnect supply power at the source
prior to installation.
INSTALLING RECEIVER (SEE FIGURE 1):
This receiver requires a 12-36V DC power supply (12V DC or 24V DC LED-DR series driver recommended, sold separately).
This receiver requires a Trulux DMX controller (sold separately) or another auxiliary DMX master control (not included).
1. Determine desired location of receiver. Mounting tabs on either end of the receiver may be utilized to secure receiver in place via screws.
2. This receiver has 4 x 5A current output terminals that can be used with single color, Tunable CCT, RGB, and RGB+WW fixtures. Wire the receiver
to a fixture by following the fixture's instructions manual and wiring diagrams, ensuring to match polarity (wiring varies depending on product).
Connect fixture prior to bringing any power to the system.
3. Bring 12-36V DC supply power to the receiver, matching polarity (See Figure 1).

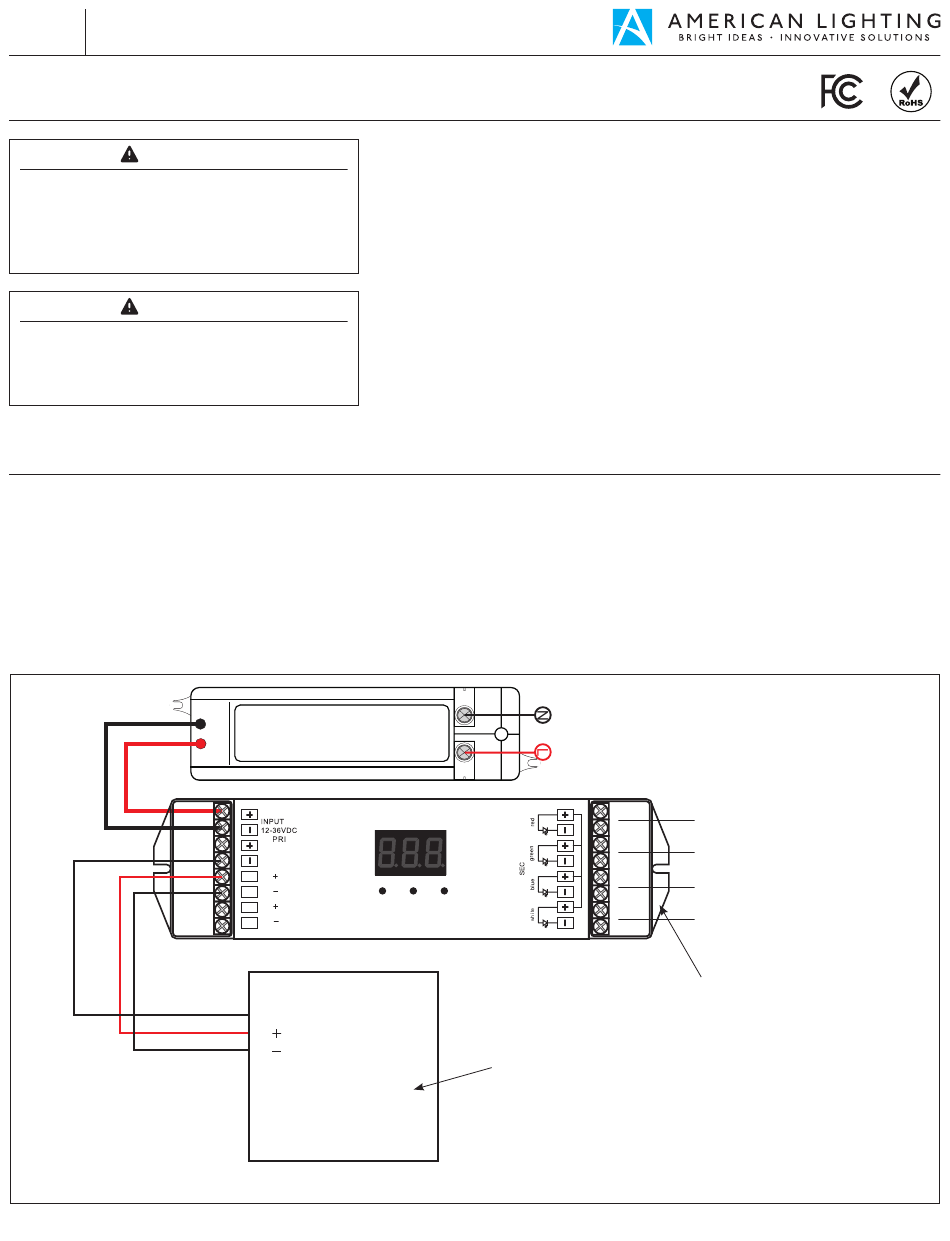

FIGURE 1
- +
-
+
GND
©2017 American Lighting, Inc. REV1734 www.AmericanLighting.com

SAFETY INFORMATION

• Read all instructions before beginning; Save these instructions for future use.
• To reduce the risk of fire, electric shock, or injury to person(s), pay close attention
to this manual and stay within its guidelines when using this product.
• This receiver is rated IP20; avoid the sun and moisture.
• Avoid using receiver in areas where extreme hot, cold, dust, or humidity exist.
• This receiver is suitable for indoor, dry locations only.
• Always be sure to mount this controller in an area with proper ventilation to
avoid overheating.
• This product has an operating temperature range of -20°C to 50°C.
• Never connect any cables while power is on and always ensure correct connections
to avoid short circuits prior to switching on. Ensure all wires and cables are secured
tightly in the connector prior to operation.
• For cleaning, use a soft, dry or damp cloth. Do not use harsh chemicals or
abrasives.
• This receiver is rated for 12-36V DC input with a maximum line-in of 20.5A.
• This receiver has 4 output terminals rated for 5A/60-180W each.
12-36V DC
Power Supply
GN D
D1
D1
D2
DMX RECEIVER
D2
GND
D1
D1
DMX Master
Controller
Controllers and receivers may be powered
by the same driver on the secondary side
to 120V AC
Wire a DMX master controller to the DMX
receiver by following the instructions for the
DMX master controller.
Page 1 of 2 11775 E. 45th Ave. Denver, CO 80239 Ph: 1-800-880-1180 Fax: 303-695-7633
CH 1: R/WW output (+/-)
CH 2: G/CW output (+/-)
CH 3: B/WW output (+/-)
CH 4: W/CW output (+/-)
Mounting tabs
