TRULUX DMX/RJ45 Receiver
12-24V

INSTALLATION INSTRUCTIONS

REC-DMX-RJ45A-5CH
WARNING
These products may represent a possible shock or
fire hazard if improperly installed or attached in any
way. Products should be installed in accordance
with these instructions, current electrical codes,
and/or the current National Electric Code (NEC).
WARNING
This receiver requires a 12-24V DC power
supply (LED-DR series driver recommended, sold
separately). Disconnect supply power at the source
prior to installation.

INSTALLING RECEIVER (SEE FIGURE 1):

This receiver requires a 12-24V DC power supply (12V DC or 24V DC LED-DR series driver recommended, sold separately).
This receiver requires a Trulux DMX controller (sold separately) or another auxiliary DMX master control (not included).
1. Determine desired location of receiver. Mounting tabs on either end of the receiver may be utilized to secure receiver in place via screws.
2. This receiver has 5 x 8A current output terminals that can be used with single color, Tunable CCT, RGB/RGBW, or RGB+Tunable WH fixtures.
Wire the receiver to a fixture by following the fixture's instruction manual and wiring diagrams, ensuring to match polarity (wiring varies
depending on product). Connect fixture prior to bringing any power to the system.
3. Bring 12-24V DC supply power to the receiver, matching polarity (See Figure 1).

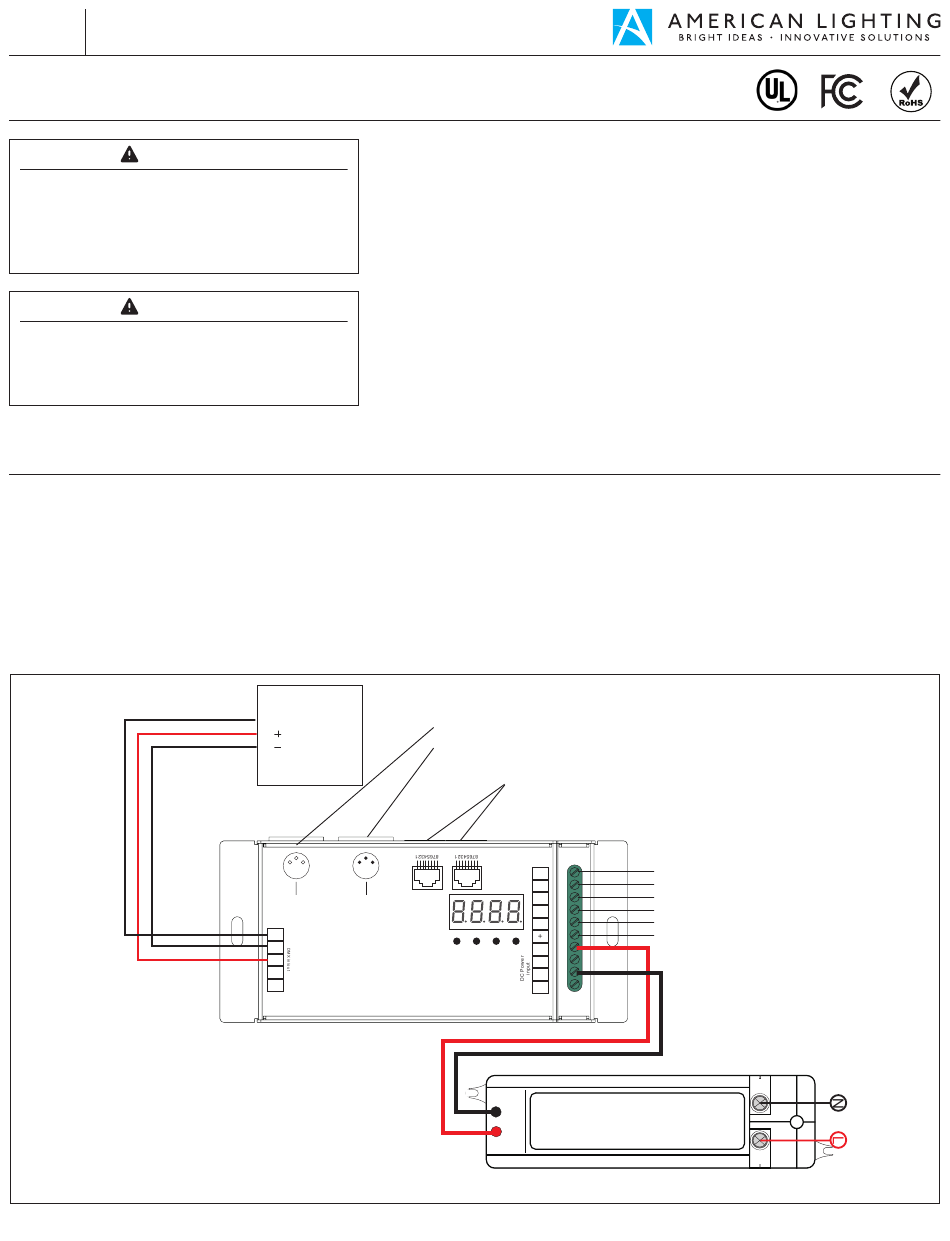

FIGURE 1
©2019 American Lighting, Inc. REV1913 www.AmericanLighting.com

SAFETY INFORMATION

• Read all instructions before beginning; Save these instructions for future use.
• To reduce the risk of fire, electric shock, or injury to person(s), pay close attention
to this manual and stay within its guidelines when using this product.
• This receiver is rated IP20; avoid the sun and moisture.
• Avoid using receiver in areas where extreme hot, cold, dust, or humidity exist.
• This receiver is suitable for indoor, dry locations only.
• Always be sure to mount this controller in an area with proper ventilation to
avoid overheating.
• This product has an operating temperature range of -20°C to 50°C.
• Never connect any cables while power is on and always ensure correct connections
to avoid short circuits prior to switching on. Ensure all wires and cables are secured
tightly in the connector prior to operation.
• For cleaning, use a soft, dry or damp cloth. Do not use harsh chemicals or
abrasives.
• This receiver is rated for 12-24V DC input with a maximum line-in of 20.5A.
• This receiver has 5 output terminals rated for 8A/96-192W each.
GND
DMX Master
XLR3 Female
D1
Controller
XLR3 Male
D1
DMX in/ou t
3 3
1 1
2 2
DM X Signal Pin1:GN D DM X Signa l Pin1:GND
Female Pin2:D - Male Pin2:D -
Pin3:D + Pin3:D +
GN D
D-
D+
D-
D+
Controllers and receivers may be powered
by the same driver on the secondary side
RJ45 Ports
DM X in/ou t
DM X Signal
RJ4 5
Pin1:Data+
5/W2 -
Pin2:Data-
Pin7:GN D
Pin8:GN D
4/W1 -
3/B-
2/G-
1/R-
Back Ente rU pD ow n V+
V+
V-
V-
-
12-24V DC
Power Supply
+
Page 1 of 3 11775 E. 45th Ave. Denver, CO 80239 Ph: 1-800-880-1180 Fax: 303-695-7633
CH 5: W/WW output (-)
CH 4: W/CW output (-)
CH 3: B/WW output (-)
CH 2: G/CW output (-)
CH 1: R/WW output (-)
Common Anode output (+)
to 120V AC
