PLEASE READ THIS GUIDE CAREFULLY BEFORE ATTEMPTING TO OPERATE THE

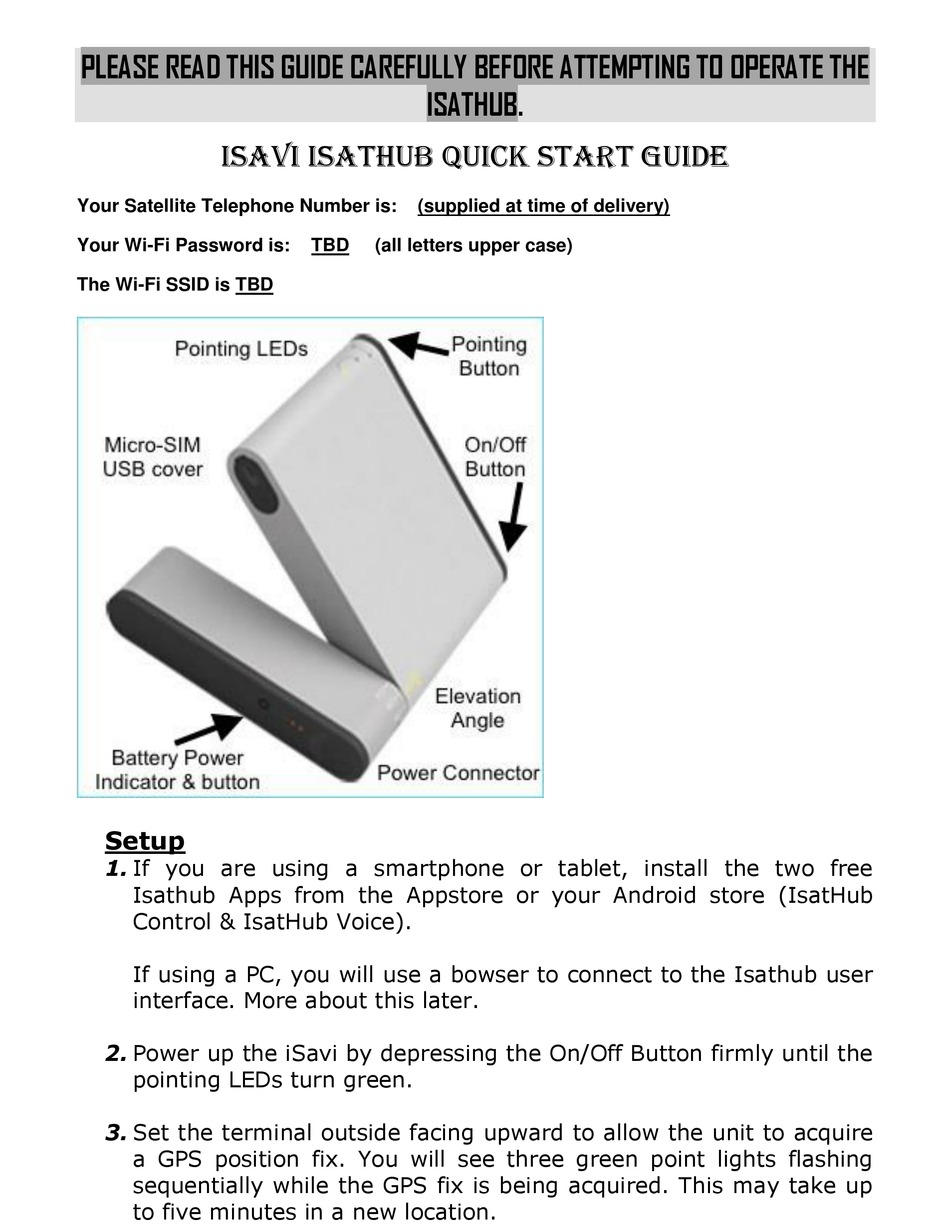

ISAVI ISATHUB QUICK START GUIDE
Your Satellite Telephone Number is:
Your Wi-Fi Password is:
The Wi-Fi SSID is TBD
Setup
1. If you are using a smartphone or tablet, install the two free
Isathub Apps from the Appstore or your Android store (IsatHub
Control & IsatHub Voice).
If using a PC, you will use a bowser to connect to the Isathub user
interface. More about this later.
2. Power up the iSavi by depressing the On/Off Button firmly until the
pointing LEDs turn green.
3. Set the terminal outside facing upward to allow the unit to acquire
a GPS position fix. You will see three green point lights flashing
sequentially while the GPS fix is being acquired. This may take up
to five minutes in a new location.
ISATHUB.
(supplied at time of delivery)
TBD
(all letters upper case)
Advertisement
Related Manuals for Wideye ISAVI ISATHUB
Summary of Contents for Wideye ISAVI ISATHUB
- Page 1 PLEASE READ THIS GUIDE CAREFULLY BEFORE ATTEMPTING TO OPERATE THE ISATHUB. ISAVI ISATHUB QUICK START GUIDE Your Satellite Telephone Number is: (supplied at time of delivery) Your Wi-Fi Password is: (all letters upper case) The Wi-Fi SSID is TBD Setup 1.
- Page 2 4. Point the iSavi as described by the flashing green Pointing LEDs. (tip up and down and pan left or right). Once all four Pointing LEDs are solid green press the Pointing Button. The ISavi is now connected to the Isathub network (but not yet connected to the internet, and not using you data allotment).
- Page 3 Connecting to the Internet w/ a Wi-Fi PC 1. Connect your PC to the iSavi Wi-Fi hotspot using the standard Wi- Fi connection process. The Wi-Fi password can be found on the back of the iSavi terminal and at the top of this instruction sheet. 2.
- Page 4 7. If the device is not yet registered with the network, click “Register Network”. Wait while the terminal registers. 8. Once registered, the terminal is ready to send and receive text messages. Use the SMS tab for these operations. 9. After registration is complete, you will see the following data on the Home page.
- Page 5 Call out using the Voice App on Smart Phone Dial (00) + (Country Code) + (Phone Number) Example: If you want to dial 1-510-923-9123 you would dial 00-1-510-923-9123 and press the “phone” button at the bottom of the dial pad. (please note: The country code for the United State is ALWAYS “...
