E-BIKE OWNER'S MANUAL
THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 92804 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KENT 92804

Summary of Contents for KENT 92804

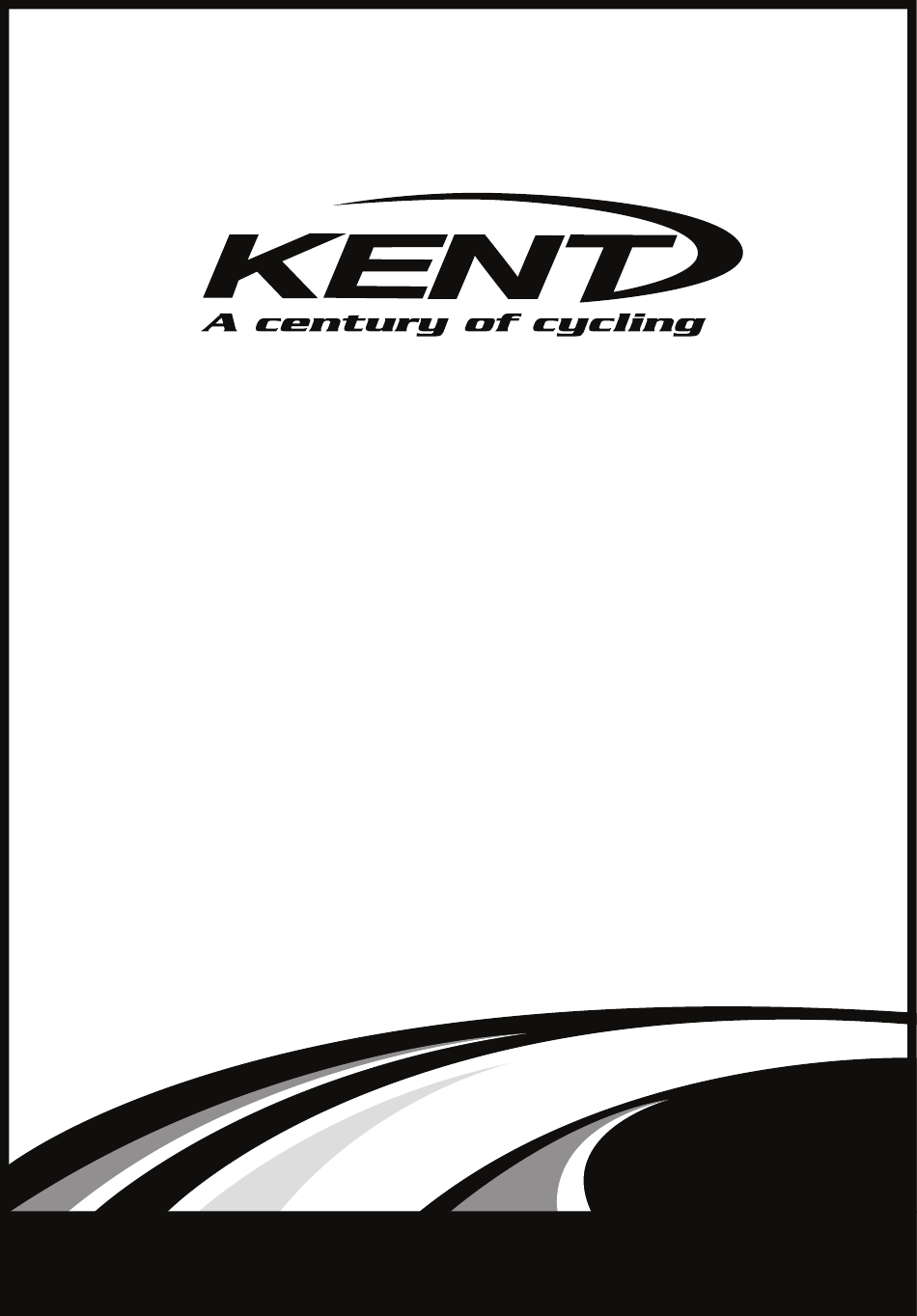

  • Page 1 E-BIKE OWNER’S MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
  • Page 2 Take your first ride in a large, open, level area away from traffic. If you have a problem, call customer service at 800-451-KENT (5368). Check and read this decal on...

  • Page 3: Table Of Contents

    CONTENTS PREFACE ................2-4 PARTS IDENTIFICATION CHART ........5-6 BEFORE RIDING .............7-12 ASSEMBLING YOUR BIKE ...........13-28 OPERATING PROCEDURES..........29-32 MONITOR DISPLAY ............33 MAINTENANCE/REPAIR ..........34-48 TROUBLESHOOTING ...........49-52 ELECTRIC BIKE FAQs ...........53-54 LIMITED WARRANTY ..........55-56 IMPORTANT INFORMATION ..........57...

  • Page 4: Preface

    If you have any questions or do not understand something, take responsibility for your safety and contact Kent customer service at 1-800-451-KENT (5368). ALWAYS WEAR A PROPERLY FITTED HELMET WHEN YOU RIDE YOUR...
  • Page 5 PREFACE RESPONSIBILITY OF THE OWNER! IMPORTANT: Reading and following the information and instructions in this manual are essential to the ability of the owner or any other persons allowed to use this bicycle in order to ride safely. 1. It is the responsibility of the owner or in the case of a younger rider the parents of the rider to be certain all assembly instructions have been followed, even if the bike has been assembled by the seller or a professional assembly company.
  • Page 6 NOTE: BEFORE TRANSPORTING THE BIKE AND/OR BATTERY, CALL CUSTOMER SERVICE AT 1-800-451-KENT (5368) FOR SPECIFIC DETAILED INSTRUCTIONS. ALWAYS WEAR A HELMET-IT COULD SAVE YOUR LIFE! A properly fitting, CPSC approved, bicycle helmet should be worn at all times when riding your bicycle.

  • Page 7: Parts Identification

    PARTS IDENTIFICATION 1. Handlebar 2. Handlebar Stem CIRCUIT DIAGRAM 3. Monitor Display 4. Headset TORQUE SENSOR MOTOR 5. Fork 6. Front Brake 7. Pedal 8. Pedal Crank Arm 9. Torque Sensor 10. Chain 11. Rear Derailleur 12. Motor MONITOR BATTERY 13.
  • Page 8 PARTS IDENTIFICATION 1. Monitor Display 2. Handlebar CIRCUIT DIAGRAM 3. Handlebar Stem 4. Headset TORQUE SENSOR MOTOR 5. Fork 6. Front Brake 7. Pedal 8. Pedal Crank Arm 9. Torque Sensor 10. Chain 11. Rear Derailleur 12. Motor MONITOR BATTERY 13.

  • Page 9: Before Riding

    BEFORE RIDING WARNING - ON AND OFF ROAD CONDITIONS: The condition of the riding surface is very important to your safety. If the surface is wet, or has sand, leaves, small rocks or other loose debris on the surface where you plan to ride, carefully decrease the speed of the bicycle and ride with extra caution.
  • Page 10 BEFORE RIDING 8. Keep to the RIGHT SIDE of the road. Follow the traffic flow in a straight line close to the curb. Watch out for opening car doors and cars moving in and out of traffic. Use caution at intersections.
  • Page 11 BEFORE RIDING Your new bicycle was assembled and tuned in the factory and then partially disassembled for shipping. The following instructions will enable you to prepare your bicycle for years of enjoyable cycling. For more details on inspection, lubrication, maintenance and adjustment of any area please refer to the relevant sections in this manual.
  • Page 12 BEFORE RIDING Just a minute spent before each ride can significantly improve your safety and the enjoyment of your ride. So, EACH TIME before you ride make a habit of performing the following safety checks: • Stand in front of the bicycle facing rearward and hold the front wheel securely between your legs.
  • Page 13 BEFORE RIDING CORRECT FRAME SIZING: When selecting a new bicycle, the correct choice of frame size is a very important safety consideration. The ideal clearance will vary between types of bicycles and rider preference. This makes straddling the frame when off the saddle easier and safer in situations such as sudden traffic stops.
  • Page 14 BEFORE RIDING RIDING POSITION: Arms not SADDLE HEIGHT overextended In order to obtain the most comfortable riding Handlebar stem position and offer the best possible pedaling, correct height saddle height should not allow leg strain from over- about the same as extension, and the hips should not rock from side to seat height side when pedaling.

  • Page 15: Assembling Your Bike

    ASSEMBLING YOUR BIKE PREPARATION It is important that you read this owner’s manual before you start to assemble your bicycle. WE RECOMMEND THAT YOU CONSULT A PROFESSIONAL BICYCLE MECHANIC IF YOU HAVE DOUBTS OR CONCERNS AS TO YOUR ABILITY TO PROPERLY ASSEMBLE, REPAIR, OR MAINTAIN YOUR BICYCLE.
  • Page 16 ASSEMBLING YOUR BIKE QUICK RELEASE FRONT WHEEL Some bicycles have wheel axles that incorporate a Quick Release (QR) mechanism. This allows easy wheel removal without the need for tools. The mechanism uses a long bolt (called a skewer) with an Adjusting Nut on one end, and a lever operating a cam-action tensioner on the other.
  • Page 17 ASSEMBLING YOUR BIKE KICKSTAND If your bike is equipped with a kickstand, please follow the instructions below. 1. Place the bicycle in an upright position. 2. Remove the top plate from the kickstand. 3. From the left side of the bicycle (opposite side from chainring), place the kickstand in position beneath the two rear fork legs.
  • Page 18 ASSEMBLING YOUR BIKE PEDAL INSTALLATION 1. Apply a small amount of grease to the threads of each pedal. Look for the letter “L” or “R” on the side or end of each pedal spindle (picture). Turning the spindle clockwise by hand (Picture), thread the pedal marked “R”...
  • Page 19 ASSEMBLING YOUR BIKE ADJUSTABLE STEM 1. Remove plastic packaging covering the expander wedge. Loosen the stem expander bolt, if necessary, so the wedge nut is in line with the stem body. See illustration. Angle Adjustment Screw (6mm) 2. Insert the stem into the head tube past the minimum insertion line indicated on the stem.
  • Page 20 ASSEMBLING YOUR BIKE A-HEAD STEM ASSEMBLY WARNING! ALWAYS TIGHTEN FASTENERS TO THE CORRECT TORQUE. BOLTS THAT ARE TOO TIGHT CAN DEFORM. BOLTS THAT ARE TOO LOOSE CAN MOVE AND FATIGUE. EITHER MISTAKE CAN LEAD TO LOSS OF CONTROL, SERIOUS INJURY OR DEATH. IF YOU DO NOT FEEL COMFORTABLE WITH YOUR SKILLS IN ASSEMBLING OR ADJUSTING THE BIKE, PLEASE TAKE...
  • Page 21 ASSEMBLING YOUR BIKE SEAT & SEAT POST ASSEMBLY 1. Loosen the seat clamp nuts. 2. Insert the top portion of the seat post into the seat clamp. Be sure the seat post is completely inserted into the seat clamp and butted tightly against the underside of the seat. 3.
  • Page 22 ASSEMBLING YOUR BIKE DISC BRAKES We suggest that if your bike comes equipped with a disc brake that you consult a professional bicycle mechanic for any adjustments or repair needed for this brake. SAFETY PRECAUTIONS 1. Adjust the inner cable so that the protruding length is less than 20mm. If the protruding length is any longer, the end of the cable may become stuck in the rotor, which could cause the wheel to lock and the bicycle could fall forward causing injuries.
  • Page 23 ASSEMBLING YOUR BIKE DISC BRAKES continued 11. It is important to completely understand the operation of your bicycle’s brake system. Improper use of your brake system may result in loss of control or an accident, which could lead to severe injury. Because each bicycle may handle differently be sure to learn proper braking technique (including brake lever pressure and bicycle control characteristics) and operation of your bicycle.
  • Page 24 ASSEMBLING YOUR BIKE DISC BRAKES continued Brake is adjusted correctly when the brake pads do not drag on the rotor when the brake is open and when applied, the brake pads contact the rim before the brake lever reaches about 1/3 of the way to the handlebar.
  • Page 25 ASSEMBLING YOUR BIKE TIRES AND TUBES After assembling your bike, it will be necessary to inflate the tires. Check the side wall of the tire for the correct tire pressure (PSI) and inflate tires accordingly with a MANUAL BICYCLE PUMP. Improper inflation is the biggest cause of tire failure. Due to the slightly porous nature of bicycle inner tubes, it is normal for your bike tires to lose pressure over time.
  • Page 26 ASSEMBLING YOUR BIKE REFLECTORS Your bike is supplied with one front reflector (white), one rear reflector (red), two wheel reflectors (white) and four pedal reflectors (orange). These are an important safety and legal requirement, and should remain securely fitted and in good condition at all times. Periodically, inspect all reflectors, brackets and mounting hardware for signes of wear or damage.
  • Page 27 ASSEMBLING YOUR BIKE FORK MOUNT REFLECTORS First insert one washer onto the hex bolt and insert hex bolt through the reflector bracked and then through the fork. Next, insert a second washer onto the bolt and thread a hex nut onto the bolt behind the fork. Tighten bolts until snug, making sure the reflector is in an upright position.
  • Page 28 ASSEMBLING YOUR BIKE SHIFTING GEARS If your bike is a multi-speed bike, please read the information below to familiarize yourself with the basics of shifting gears. Your multi-speed bicycle will have a derailleur drivetrain (see 1. below), an internal gear hub drivetrain (see 2.
  • Page 29 ASSEMBLING YOUR BIKE b. Shifting The Rear Derailleur The rear derailleur is controlled by the right shifter. The function of the rear derailleur is to move the drive chain from one gear sprocket to another. The smaller sprockets on the gear cluster produce higher gear ratios.
  • Page 30 ASSEMBLING YOUR BIKE 2. How An Internal Gear Hub Drivetrain Works If your bicycle has an internal gear hub drivetrain, the gear changing mechanism will consist of: – one, or sometimes two shifters – one or two control cables~ one front sprocket called a chainring –...

  • Page 31: Operating Procedures

    OPERATING PROCEDURES START YOUR E-BIKE: Turn on the battery using the on/off switch. The switch is located on the left side of the frame - opposite the charging port. Then press the ON/OFF BUTTON on the monitor display for 3 seconds. The monitor display will turn on.
  • Page 32 OPERATING PROCEDURES BATTERY CHARGE INDICATOR MONITOR DISPLAY: INCREASE MOTOR Your e-bike is equipped with an LCD ASSIST meter that monitors motor assist, speed, MOTOR odometer, trip distance, riding time, and ASSIST LEVEL battery energy level. To turn the meter on, make sure the battery is charged in DECREASE MOTOR the e-bike and the on/off switch is in the...
  • Page 33 • Do not cover the charger when it is charging. • Please keep and use our charger in a dry and ventilated area. • During charging, if the charger emits any smell or it becomes excessively hot, please stop charging and call customer service at 800-451-KENT (5368).
  • Page 34 OPERATING PROCEDURES SHIFTING GEARS: Your bike is equipped with 7 speeds. The first gear is for easier and uphill pedaling, and the last gear is for maximum speed on level or downhill terrain. Change gears only while pedaling. The rear wheel contains seven chain sprockets. When the chain is around the largest sprocket, you are in 1st gear, or the lowest gear.

  • Page 35: Monitor Display

    MONITOR DISPLAY Your new e-bike is equipped with a Monitor Display. This monitor display is powered by the bike’s battery. The bike must be powered on for the monitor display to function. TURNING THE MONITOR DISPLAY ON: To power on the monitor display, press and hold the ON/OFF BUTTON.

  • Page 36: Maintenance/Repair

    Do not over lubricate - remove excess lubricant to prevent dirt build up. Never use a degreaser to lubricate your chain (WD-40™) CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 37 Check all points as per monthly service Check and replace brake pads, if required Check chain for excess play or wear Yearly Lubrication as per schedule 1 CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 38 1. Spare tube 2. Patch kit 3. Pump 4. Tire levers 5. Multi-tool 6. Cell phone or change for a pay phone CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 39 Adjustment is required. • Axle nuts: Check that these are tight before each ride. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 40 RECOMMENDED TIRE PRESSURES: The recommended pressure is molded on the sidewall of your bicycle tires. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 41 16. Replace the wheel into the frame checking that all gears, brakes and quick release levers are properly adjusted. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 42 If you find any problems, the cables or other involved components should be evaluated as it may need replacing before you ride. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY...
  • Page 43 NOTE: It may take several adjustments to achieve the desired positioning. Please refer to the troubleshooting section for more assistance. Check to be sure how the components on your bike function. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 44 Such action is beyond the scope of this manual and you should consult a professional bicycle mechanic. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 45 Always wear solid, well-constructed shoes while riding. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 46 NOTE: Never try and force a pedal with the wrong thread size into a bicycle crank. If the pedal is too loose or too tight, it is the wrong pedal and might come loose in use. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY...
  • Page 47 We recommend that you consult a professional bicycle mechanic to replace or change the length of your chain. They will have the special tools required to perform the repairs correctly. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 48 Over-heating from a battery’s ability to hold a full charge may lead to a short circuit and damage your charger, battery, and unit. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY...
  • Page 49 • Do not use the battery/charger for any use other than its intended purpose. • Only use the battery/charger on approved products. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 50 • Please use natural detergents and use a rag to clean its surface gently, finally clean the bike with a dry cloth. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.

  • Page 51: Troubleshooting

    - Adjust chain line - Chain fouling derailleurs - Clean and lubricate - Derailleur jockey wheels jockey wheels dirty/binding CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 52 - Adjust headset - Headset binding - Replace bearings - Hub bearings collapsed - Adjust QR mechanism - QR mechanism loose CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 53 - Voltage of the battery is too low - Charge the battery or - Motor is damaged replace with a new one - Replace the motor CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
  • Page 54 - Charger coil is shorted resistance go off quickly when - Rectifier tube is broken - Replace or repair electricity is connected CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.

  • Page 55: Electric Bike Faqs

    ELECTRIC BIKE FAQS Q. How long does it take to fully charge the battery? A. Depends on the state of discharge but around 5-6 hours if completely discharged. Q. What are the running costs for an electric bike? A. You will have no worries about rising fuel prices at the pumps. All our electrically powered vehicles use household electricity.
  • Page 56 ELECTRIC BIKE FAQS Q. How far will an electric bike take me? A. This all depends on a few factors. Cycling with pedal assist along a straight road under normal conditions, the standard battery should last about 15-30 miles (24 - 48 kilometers). Cycling up steep hills will obviously take more energy out of the battery and factors such as road surface, wind resistance, weight of the rider and tire pressure will affect your range.

  • Page 57: Limited Warranty

    - Ridden by more than one person at a time. - Rented or used for commercial purposes. - Used in a manner contrary to the instructions in this Owner’s Manual. Kent will not be liable for incidental or consequential loss or damage, due directly or indirectly from use...
  • Page 58 For how long does this Limited Warranty last? The frame is warranted for the usable life of the bicycle. Kent will replace the frame at no charge, should it fail in any weld point when the cycle has been used in a normal manner, and determined by our inspection Kent will also replace the bicycle fork if it should fail at any weld point.

  • Page 59: Important Information

    10. Do not ride while intoxicated. Do not ride when taking medicine or when you are not feeling well. CAUTION: CALL CUSTOMER SERVICE AT 800-451-KENT OR CONSULT A PROFESSIONAL BICYCLE MECHANIC WITH ANY QUESTIONS ON REPAIRS OR MAINTENANCE.
