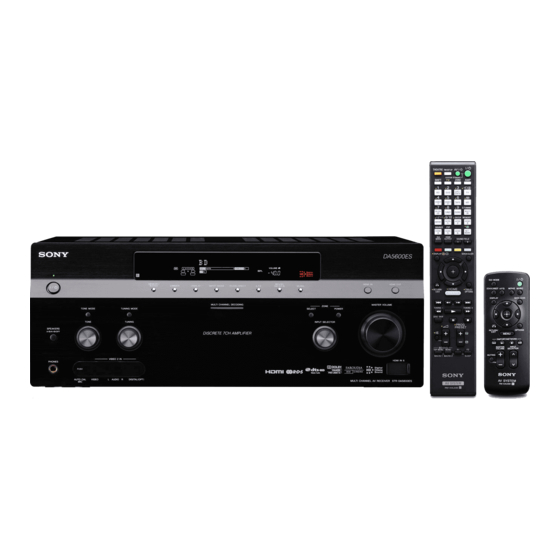

Sony STR-DA5600ES Integration Manual

Equinox
Hide thumbs Also See for STR-DA5600ES:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
VANTAGECONTROLS.COM
1061 South 800 East · Orem, Utah 84097 · Telephone 801 229 2800 · Fax 801 224 0355
Manufacturer:
Sony
Model Number/s:
STR-DA5600ES
Driver Version:
v. 44 or higher
DC Version:
v 3.2 or higher
I. Overview
As part of its Premier Partner Program, Vantage Equinox products support the Sony STR-DA5600ES for control of your Home
Theatre. After setting up the Sony STR in Design Center, the Equinox audio and video Widget user interfaces for control of the Sony
automatically appears in the EQ41 and EQ73 in-wall touchscreens and mobile devices installed with the Equinox App (available for
iPhones, iPads, iPods, and Android products).
The Sony STR Receivers work best as part of an audio system and/or complete surround system that includes multiple sources and a
TV/Display. Therefore, it is presumed in this Integration guide that an Equinox supported TV/Display is used in conjunction with the
Sony STR.
II. Features Supported / Not Supported
Feature
Zone Power
Toggle
Zone Volume
+/- buttons, Slider Visibility
Source Control: Next/Previous
Next Source, Previous Source
Source Control: Select
Select Source
Tuner
Frequency feedback, tune up, tune down, preset select.
Music Server Source
No control over media content from Equinox. Can select as source.
Internet Radio Services
No control over media content from Equinox. Can select as source.
USB/USB(Front) Source
No control over media content from Equinox. Can select as source.
Universal PORT Source
No control over media content from Equinox. Can select as source.
Supported
Feature Notes:
Although the commands for the music server, Internet radio services, USB/USB(Front), and Universal PORT sources are not
supported, it is possible to switch to these sources on Equinox devices.
©Vantage Equinox
Widget:
Aliases:
Driver Category:
Connection Type:
Task Only Support
Sony: STR-DA5600ES
EQUINOX INTEGRATION GUIDE
Audio and Video
5500/3400/3600/4600/6400/3500/1500
Receiver/Preamp
Serial (RS-232) or Ethernet
EQ40
Not Supported
Document Updated May 8, 2015
EQ41, EQ73 &
EQApp
page 1 of 9

Advertisement

loading

Related Manuals for Sony STR-DA5600ES

Summary of Contents for Sony STR-DA5600ES

  • Page 1 As part of its Premier Partner Program, Vantage Equinox products support the Sony STR-DA5600ES for control of your Home Theatre. After setting up the Sony STR in Design Center, the Equinox audio and video Widget user interfaces for control of the Sony automatically appears in the EQ41 and EQ73 in-wall touchscreens and mobile devices installed with the Equinox App (available for iPhones, iPads, iPods, and Android products).

  • Page 2: Installation Steps

    Sony STR-DA5600ES in Design Center and setup the Equinox products. If the controller will be communicating with the Sony STR-DA5600ES by way of an Ethernet connection, then be sure to take note of the device’s IP address while setting it up because you will need it to properly setup the Design Center file.
  • Page 3 Object Editor. d. Next, determine what type of cable will connect the output of the Sony Zone that is assigned to that area and the input of the display and assign that zone to that output in the Connected Source column.
  • Page 4 VII. Add Additional Equinox Devices and Program Controller To use the Sony STR with the Equinox audio and video widgets, simply add and name any EQ73 or EQ41 (from Vantage Objects | Touchscreens in the Object Explorer pane) in their respective areas in your Design Center project. (For the Equinox mobile app, no object needs to be added.) No additional Design Center setup is required.
  • Page 5 Profile Settings and select the widget to make it visible. Note that if the audio widget is already on the Equinox device, but the Sony STR is not visible, go to the widget’s Edit Mode (see below) to toggle the Sony to make it visible.
  • Page 6 For further control of the source, the user will need to use the controls provided by Sony. Edit Mode View for the Audio and Video Widgets...

  • Page 7: Connection Diagram Example

    Ethernet w/PoE Cat 5 (RJ45) Zone Speakers Various Various 16/4 Speaker Wire Receiver/Pre-amp Sony STR-DA6400ES Ethernet, RS-232, Cat 5 Ethernet, dB9 Dolby TrueHD, RS-232, HDMI, RCA DTS-HD, THX, WMA, MP3, Internet Radio ©Vantage Equinox Sony: STR-DA5600ES page 7 of 9...
  • Page 8 Known Issues  Many of the onboard sources of the Sony are not directly controllable by Vantage systems. However, it is usually possible to change the current source to be these onboard sources and to provide basic navigation commands so as to navigate the available menus.
  • Page 9 Set Volume Level to Slider Volume Synchronize Volume Level Mute Volume Mute Restore Volume Toggle Mute State Scan Down Scan Up Select Band Sony STR-DA5600ES- Audio/Video Tuner Select Frequency Internal Tuner Tune Down Tune Up Select Band (AM,FM,Sirius) ©Vantage Equinox Sony: STR-DA5600ES...
