Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with
quality, convenience and style in mind. We trust it will provide you with many years of exceptional
comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece
by taking a few minutes to go through this booklet. It contains important information on our
warranty and care tips to keep your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday
8am to 5pm (EST) to answer any question you may have. For faster service, always have the
model number ready when calling our toll free number 1-800-295-1980 or emailing us at
das@dorel.com .
For more great furniture ideas, check out our website at www.dorelliving.com.
You can also keep up to date on all the latest trends by liking our
Date of Purchase: _____ / _____ / _____
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our
customer service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE

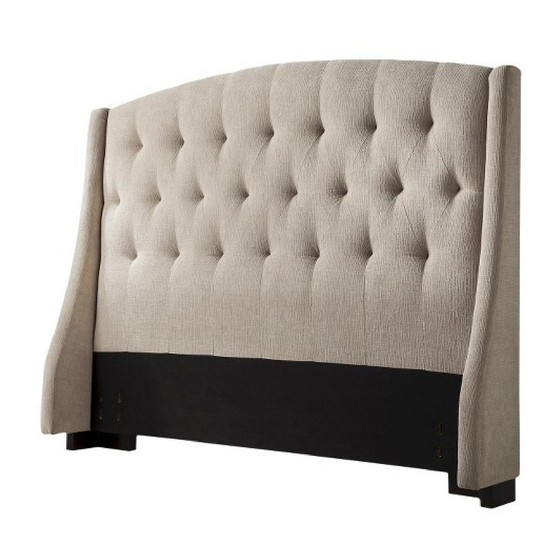

TUFTED WINGBACK KING HEADBOARD
Model Number:
TG4033O-K
TG4033C-K
TG4033A-K
TG4033J-K
TG4033M-K
TG4033P-K
READ AND KEEP FOR FUTURE REFERENCE.
UPC Code:
0-65857-16112-0
0-65857-16113-7
0-65857-16267-7
0-65857-16268-4
0-65857-16266-0
0-65857-17193-8
Facebook
page.
Lot Number:
(taken from carton)
Color:
Cream
Taupe
Slate
Brown
Charcoal
Pewter
Advertisement
Table of Contents
Related Manuals for Dorel Living TG4033O-K
Summary of Contents for Dorel Living TG4033O-K
- Page 1 TG4033P-K 0-65857-17193-8 Pewter Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with quality, convenience and style in mind. We trust it will provide you with many years of exceptional comfort and service. Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking a few minutes to go through this booklet.
-
Page 2: Care And Cleaning
CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No. -
Page 3: Hardware List
TUFTED WINGBACK KING HEADBOARD TG4033O-K/TG4033C-K/TG4033A-K/TG4033J-K/TG4033M-K/TG4033P-K HARDWARE LIST Ø19mm Ø12.5mm Ø5/16" X 50mm HEX SOCKET HEAD BOLT FLAT WASHER SPRING WASHER 6 PCS 10 PCS 10 PCS Ø5/16" X 70mm Ø16mm Ø4mm HEX SOCKET HEAD BOLT FLAT WASHER SCREW 4 PCS... - Page 4 TUFTED WINGBACK KING HEADBOARD TG4033O-K/TG4033C-K/TG4033A-K/TG4033J-K/TG4033M-K/TG4033P-K PARTS LIST HEADBOARD BODY HEADBOARD WING 1 PC 2 PCS FOOT 2 PCS NOTE: HEADBOARD WINGS (B1 & B2) AND FEET (C1 & C2) ARE PACKED INSIDE THE HEADBOARD BODY (A). PULL BACK THE FABRIC LINING BEHIND THE HEADBOARD BODY TO COLLECT ALL PARTS.
- Page 5 TUFTED WINGBACK KING HEADBOARD TG4033O-K/TG4033C-K/TG4033A-K/TG4033J-K/TG4033M-K/TG4033P-K STEP 1: Place all parts on a clean, smooth surface. Pull back the fabric lining underneath headboard body (A). Attach left headboard wing (B1) and right headboard wing (B2) to the headboard body (A) with flat washers (H2), spring washers (H3) and hex...
- Page 6 TUFTED WINGBACK KING HEADBOARD TG4033O-K/TG4033C-K/TG4033A-K/TG4033J-K/TG4033M-K/TG4033P-K STEP 2: Attach the feet (C1 & C2) to the headboard body (A) with flat washers (H2) and hex socket head bolts (H4). Use Allen Key (H10) to tighten the bolts. Attach the feet (C1 & C2) to the headboard wings (B1 & B2) with flat washers (H5) and screws (H6).
- Page 7 TUFTED WINGBACK KING HEADBOARD TG4033O-K/TG4033C-K/TG4033A-K/TG4033J-K/TG4033M-K/TG4033P-K NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPARATELY. THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY. Attach the bed frame (purchased separately) to bed posts using bolts (H7), spring washers (H3), flat washers (H9) and nuts (H8). Use Allen key (H10) to tighten...
- Page 8 TUFTED WINGBACK KING HEADBOARD TG4033O-K/TG4033C-K/TG4033A-K/TG4033J-K/TG4033M-K/TG4033P-K CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 9: Customer Service
MODEL #: TG4033O-K/TG4033C-K/TG4033A-K/TG4033J-K/TG4033M-K/TG4033P-K Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
