MiraMate Joint Aid Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.miramate.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Joint Aid and is the answer not in the manual?

Questions and answers

Related Manuals for MiraMate Joint Aid

Summary of Contents for MiraMate Joint Aid

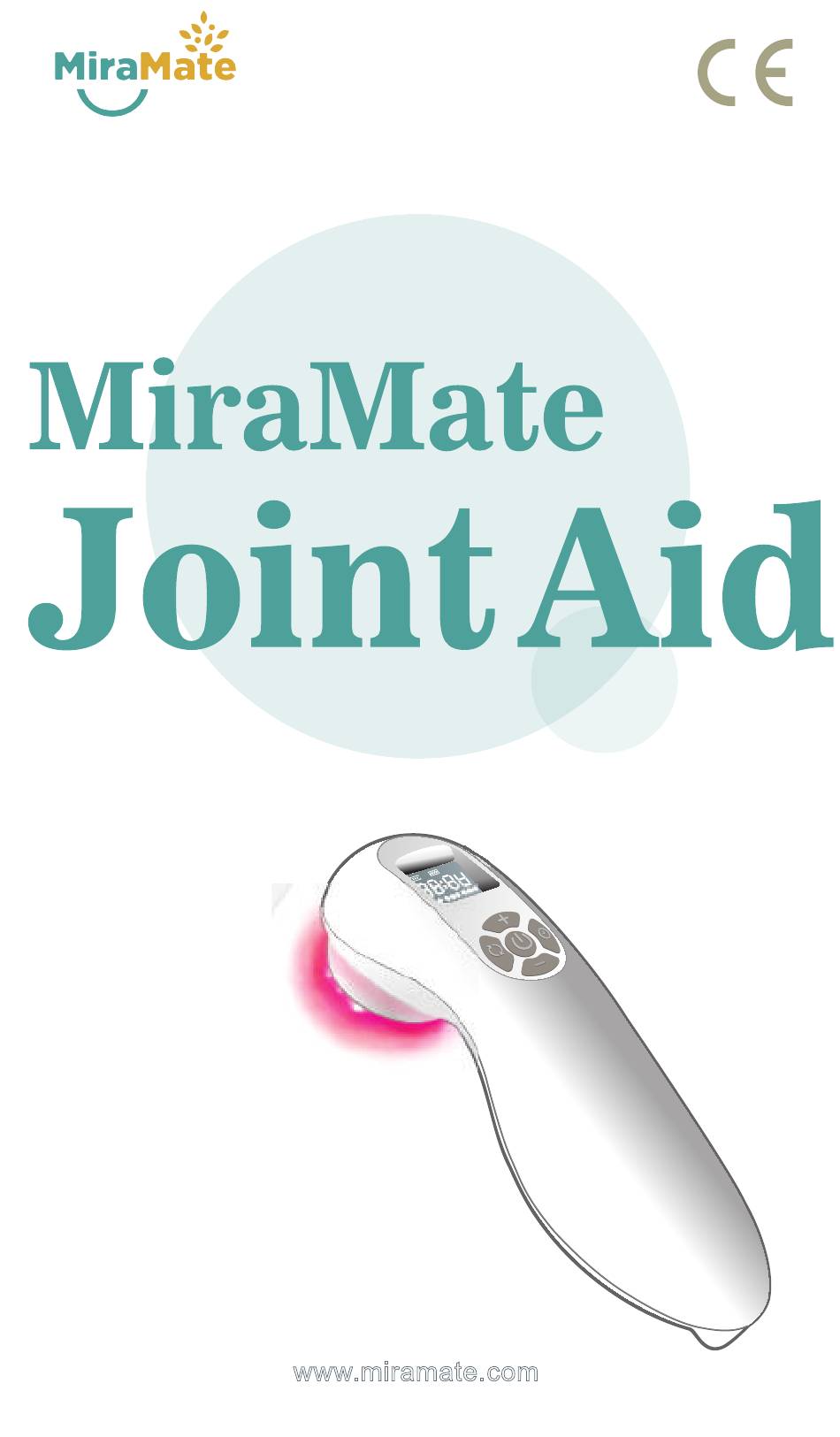

  • Page 1 www.miramate.com...
  • Page 2 MiraMate Thank you for choosing MiraMate Joint Aid. These instructions will help you get the best results. MiraMate Joint Aid is a cold laser device. Please read the following cautions carefully before using. Cautions: 1. Do not look into the laser beams directly or indirectly. Your eyes may be damaged! Always use the safety glasses provided.

  • Page 3: Table Of Contents

    Contents I. Brief Overview II. Parcel Contents III. Main Structure IV. Specifications V. Operation Instructions VI. Trouble-shooting Instructions VII. Maintenance and Preservation VIII. Transportation and Storage IX. Warranty X. Symbol Descriptions...

  • Page 4: Brief Overview

    Perfect for joints! MiraMate Joint Aid is very easy to use. Set the power level and duration, then direct the light to target area and start. We recommend sessions of 30 minutes, once or twice per day.

  • Page 5: Parcel Contents

    II. Parcel Contents Host Power Adapter Portable Case Safety Goggles Manual...

  • Page 6: Main Structure

    III. Main Structure 1. Main Unit Pulse mode Continuous mode...
  • Page 7 2. Laser Diodes Three 808nm laser diodes Twelve 650nm laser diodes 3. Power Adapter...

  • Page 8: Specifications

    IV. Specifications Laser medium GaAlAs Semiconductor Laser wavelength 650nm±20nm/808nm±20nm Three 808nm laser diodes Number of laser diodes Twelve 650nm laser diodes Maximum output power 150mW±20% per 808nm laser diode Maximum output power 5mW±20% per 650nm laser diode Selectable 15-60 minutes, Time setting in 5-minute increments Battery voltage...

  • Page 9: Operation Instructions

    V. Operation Instructions 1. Functions Setting and Keys Operations 1.1 Turn on 1) Long press “On/Off” (Figure 1). 2) In the process of turning on, buzzer will "beep". 3) All the icons on LCD screen will light up briefly when the device is turned on, and then the parameters setting before last time shutdown will be displayed (default factory setting: pulse mode, 30 minutes, mid-level power output, as shown in...
  • Page 10 1.2 Mode Setting 1) After turning the device on, press "Mode" to select mode. There are two adjustable modes: “Pulse output mode” and “Continuous output mode”. Continuous wave lasers are best for pain control. Pulsed wave lasers are better for healing and reducing inflammation. We recommend using "Continuous output mode"...
  • Page 11 1.3 Time Setting 1) Press "Time" to adjust the duration. Time increments are 5 minutes. The duration is adjustable from 15 to 60 minutes. 2) When "Time" is pressed, the buzzer will "beep", and the time icon on LCD screen will change. Note: If it is unnecessary to adjust time, short press “Power”...
  • Page 12 Note: If it is unnecessary to alter the power intensity, please press “On/Off” directly to start. The device will use the last-used power level. 1.5 Start and Pause 1) After setting working mode, time and laser output power intensity, short press “On/Off" to start the device. The buzzer will "beep", and the remaining time displayed.

  • Page 13: Charging Instructions

    1.6 Shutdown Long press “On/Off" to turn off. The buzzer will give a confirmation "beep”. Note: The device has an automatic shutdown function to save energy. The device will automatically turn off after one minute of inactivity. 2. Recommendation We recommend using this device once or twice a day for 30 minutes each time.

  • Page 14: Trouble-Shooting Instructions

    The buzzer will “beep” twice, and the battery icon on the LCD screen will show that the device is charging. When the device is fully charged, the battery icon will display normally. Note: 1. The charging time should be over 10 hours for the first three charge cycles.

  • Page 15: Maintenance And Preservation

    VII. Maintenance and Preservation 1) If the device breaks down, please use the “Trouble-shooting Instructions” to eliminate the problems. If the problems perseveres, please contact us. To avoid unnecessary loss - Don’t disassemble or repair the device by yourself. 2) To clean the surface of the device, please use cotton soaked in neutral cleaning fluid.

  • Page 16: Transportation And Storage

    VIII. Transportation and Storage General transportation is acceptable, but strong shocks, vibration, snow and rain exposure should be avoided in transportation. The packed device should be stored in a well-ventilated room with humidity levels no more than 80% relative humidity and no corrosive gases. IX.

  • Page 17: Symbol Descriptions

    X. Symbol Descriptions According to regulation EN60825-1, 2014 standard, each 3B laser product must be accompanied by a radiation warning sign and a radiation declarative sign. Description of other signs...
