Template for Mounting Holes
[4.76mm]
Ø .188in
[25.40mm]
[36.51mm]
Ø 1.0in
Ø 1.438in

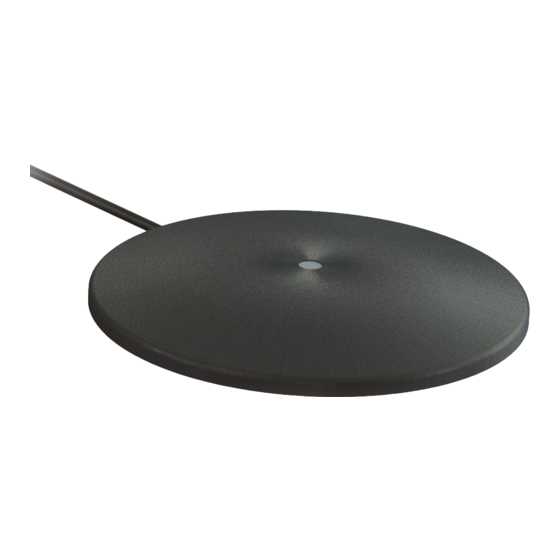

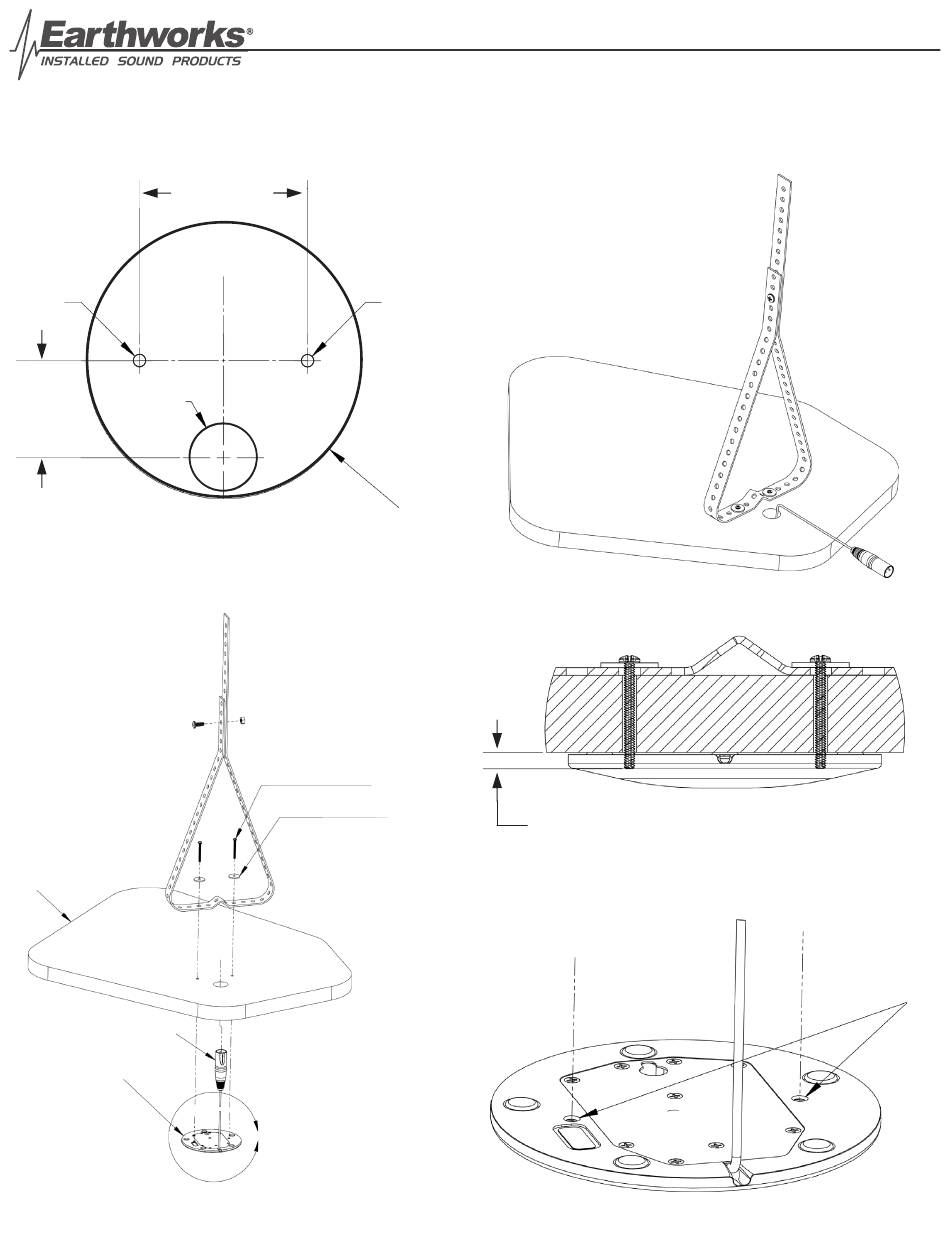

CTB30 Ceiling Installation
Strap Hanger
Ceiling
Cable and XLR Connector
CTB30
[63.50mm]
Ø 2.5in
Outside Diameter
6-32 Pan Head Screw
#6 Oversized Washer
CTB30 Permanent Installation Guide
Attach Strap Hanger to building structure per
applicable building codes
[4.76mm]
Ø .188in
[104.14mm]
Ø 4.1in
of CTB30
6-32 screws must not protrude more than 3/16 inches [4.76mm] through
ceiling to avoid damage to microphone flange
Ceiling Installation
Template for Mounting Holes
Cross Section View
Bottom of CTB30
6-32 Ceiling
Mounting Holes
