Summary of Contents for Earthworks CTF

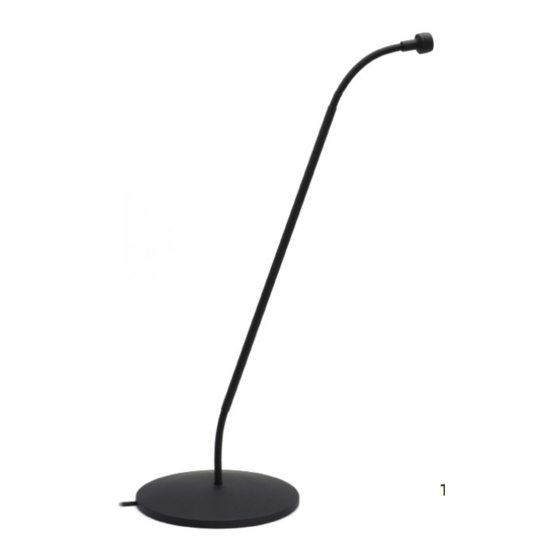

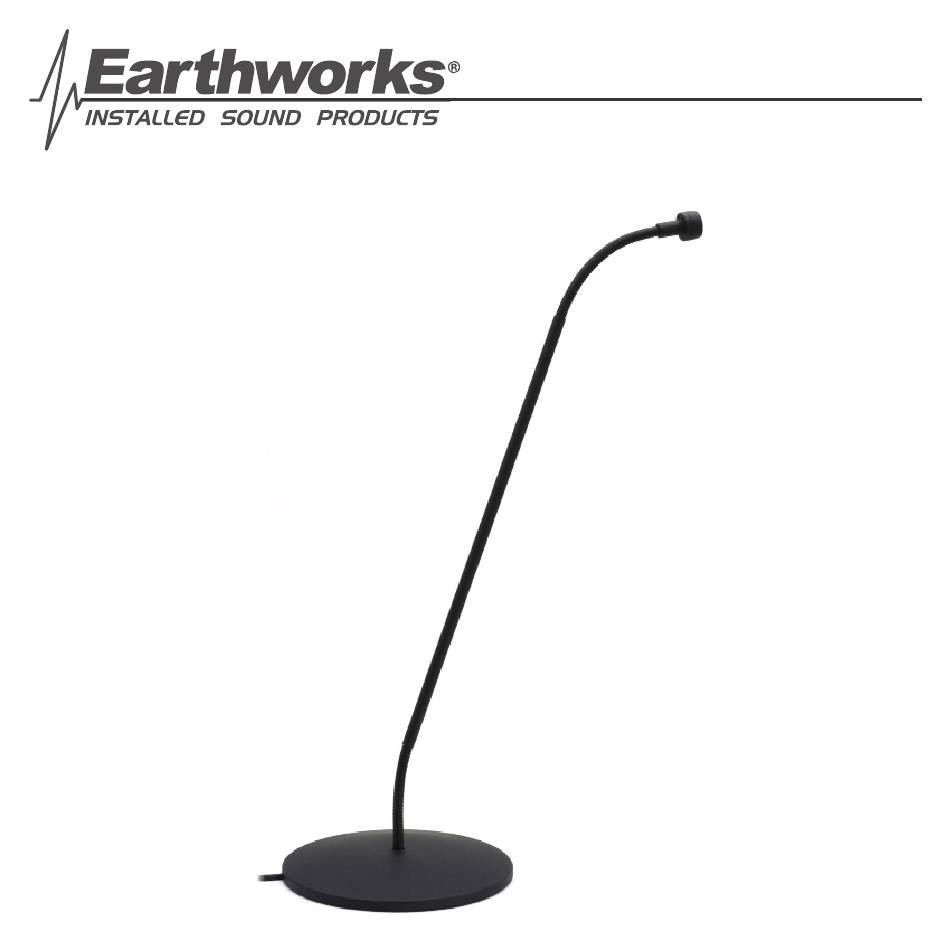

- Page 1 User’s Guide Tabletop Gooseneck Microphone with Integrated Base...
- Page 3 Optimized for speech, the CTF microphones feature a flat frequency response out to 30kHz that delivers the highest level of speech intelligibility and articulation.
- Page 4 Polar Response Specifications Frequency Response: 20Hz - 30kHz Min. Output Load: 1K between pins 2 & 3 Polar Pattern: Cardioid Base Dimensions: 4.1 x 4.1 x 0.45 inches Sensitivity: 20mV/Pa (-34dBV/Pa) (104.1 x 104. 1 x 11.4 mm) Power Requirements: 24-48V Phantom, 10mA Cable Length: 10’...
- Page 5 Coverage Area Top View Standing Seated...
- Page 6 The CTF microphone comes with a low profile 10 ft. (3.04m) output cable with installed standard XLR3-M connector. A keyhole is included on the bottom of the CTF, so it can be secured to a tabletop or flat surface. If changing the output connector is required, use the supplied connection information below.
- Page 7 Dimension Drawings (dimensions shown in inches) 4.10 0.097 0.798 Cable Diameter Cable Length 10 ft. (3.04m) 2.815 with Installed XLR-3M .460 .140 .025 Permanently Installed on Table Permanently Installed on Table with XLR Connector Removed with XLR Connector Attached...
- Page 8 All Earthworks microphones carry a limited warranty (parts and labor). Please visit earthworksaudio.com/warranty for details. Product Registration To help you get the most out of your Earthworks purchase, please take a moment and register your product with us online at earthworksaudio.com/register.
