Ninebot Gokart User Manual page 2

4

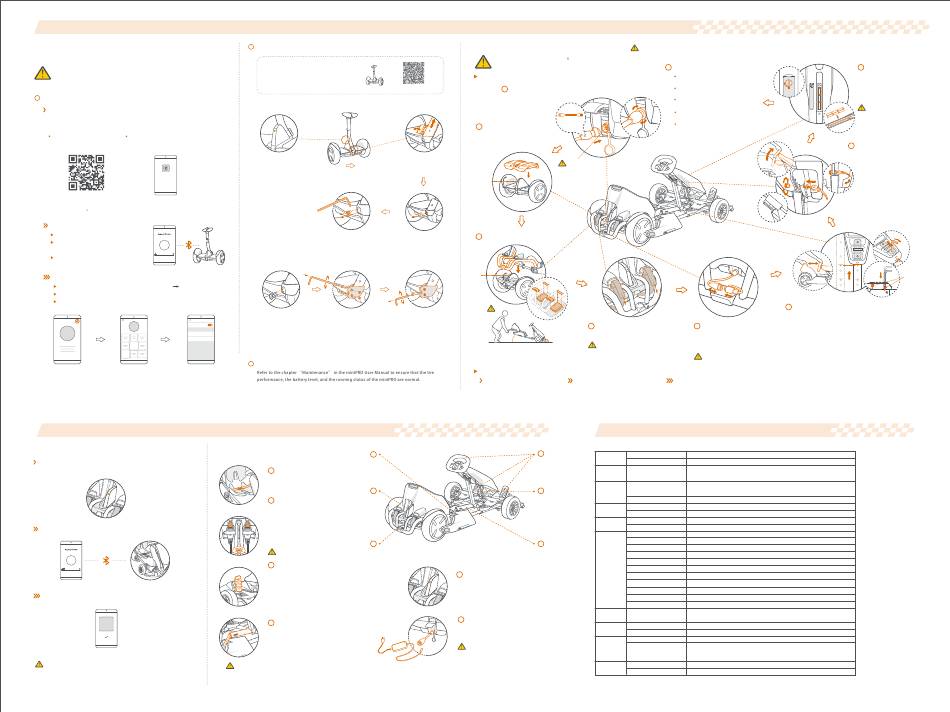

Assembling your Gokart
(Requires two adults to assemble)
Operating the miniPRO
The Gokart is assembled by attaching the Gokart Kit to a miniPRO. Before
assembly of the Gokart, please review the miniPRO User Manual and follow all
instructions contained in it. Once the miniPRO has been properly activated and
charged you can begin assembly of the Gokart.
Update the miniPRO firmware
1
Install the app
Download the Segway-Ninebot app (hereinafter referred to as the app)
by any of the following methods:
Scan the QR code below Download in Google Play Store
or Apple's App Store
Segway-Ninebot App
Segway-Ninebot App
* Your mobile phone requires Bluetooth 4.0 or later, iOS system 8.0
or later, or Android 4.3 or later.
Pair your mobile phone and the miniPRO
Turn on the phone's Bluetooth.
Searching
Press the power button to turn
on the miniPRO.
MiniPro0001
Open the app to search for and
connect your miniPRO.
Update firmware and switch modes
In the upper right corner of the app, tap Settings Firmware Update.
On the Ninebot settings page, tap "Gokart mode".
Enable "Gokart mode".
Gokart Mode
Gokart Mode
Vehicle
Vehicle
Gokart Kit installation tutorial
About Gokart
Firmware
Update
Gokart
Mode
* This firmware update does not involve activation of the miniPRO. If you need to use the miniPRO,
please refer to the miniPRO User Manual for related operations.
5
Driving the Gokart
Activate the Gokart
Press the power button on the miniPRO to turn on the Gokart.
The Gokart will automatically power off when idle for 10 minutes.
Open the Segway-Ninebot APP and connect your Gokart.
Searching
Gokart0001
Follow the instructions in the app to activate the Gokart
and complete the corresponding tutorial and exercises.
Activate the
Gokart
For your safety, the default values of the Gokart speed and
sensitivity are set to low. Use the app to learn how to drive
safely, then the speed limit can be gradually raised.
Remove the steering bar from the miniPRO
2
Scan the QR code on the right to
review Assembly Instructions.
Assembly Instructions
a. Press the power button b.
to turn off the miniPRO.
d. Use a 4 mm hex wrench
to remove the screws in
the steering bar bracket
and pull off the bracket.
Disassembly is completed
after removing the steering
bar bracket. If you cannot
remove the bracket by
hand, continue to step e. c.
e. Use the tools provided to remove the steering bar bracket from the miniPRO.
The steps are as follows:
Place the steering Fasten the two metal molds onto Insert the M6 screw into the
bar bracket the lower part of the steering bar screw hole on the front of
removal tool into bracket by inserting the two nuts metal molds, tightening with
the screw holes on from the right and the two M5 a 5mm hex wrench, continue
the steering bar screws from the left; tighten with tightening the screw until the
bracket. a 4mm hex wrench. steering bar bracket falls off
the miniPRO.
Check the status of the miniPRO
3
Use and charging
1
Fastening the seat belt
1
Sitting on the seat, buckle the left and right
parts of the seat belt in front of you.
5
Driving
2
Acceleration: lightly press the throttle (right
pedal) to go forward.
Deceleration: lightly press the brake (left pedal)
to decelerate.
Steering: steer the Gokart by slightly turning the
6
steering wheel clockwise or counterclockwise.
Do not pump the brake pedal to decelerate.
3 Reversing
When the Gokart is stopped, double-press
the brake (left pedal). After you hear a beep,
the Gokart has switched to reverse mode.
Press the throttle to drive the Gokart in
reverse. Double-press the brake (left pedal)
again to return to forward mode.
Emergency braking
4
In the event of a situation that requires an
emergency stop, pull the hand brake handle on
the right side of the Gokart to engage the
emergency brake.
Follow the relevant charging instructions in the manual and the common battery maintenance and safety knowledge for
maintenance. Ninebot products are designed with overheat protection. If the vehicle temperature exceeds 104 °F (40°C),
the vehicle cannot be charged as normal. Wait until the vehicle cools to below 104 °F (40°C) before charging.
Assembling and disassembling the Gokart
Before assembly, update the app's rmware and turn on
Gokart mode.
Assembly
1 Plug the power extension cord into the charging port of the miniPRO,
tighten by turning clockwise.
Power extension
cord
2 Install the miniPRO adapter pad.
Located under the frame. Remove
the attachment strap before
removing from the frame.
Unlock the steering bar
Do not plug the power
tool-free release, remove
extension cord into the
the steering bar. miniPRO if the power
extension cord or charge
port is wet.
Power
button
3 Place the Gokart frame on the miniPRO.
Remove the rubber plug on
the steering bar bracket.
Power
button
< 19°
If lifting the frame by yourself, do not lift the
backside more than 19° or you may
damage the bumper.
Disassembly
Press the miniPRO's power button Disconnect the electrical connection
to turn off the Gokart. cable.
2
3
4
Shutdown
5
Make sure the vehicle is completely stopped
before getting off. Press the miniPRO's power
button to turn off the Gokart.
Charging
6
Charge the Gokart by plugging the miniPRO
power cord into the power extension cord.
Do not connect the charger if the charge
port or power cable is wet.
This assembly is for adults only. Do not power on the miniPRO during assembly or disassembly.
9 Once fully assembled, make sure:
The miniPRO adapter pad and the mini-
PRO are facing the correct direction.
The attachment straps are properly at-
tached and tightened.
The electrical connection cable is
plugged into the power extension cord.
The body length and steering wheel
height is appropriate for the rider.
The battery compartment is closed.
If anything appears to be incorrect,
stop using the Gokart and
contact after-sales
service.
4 Pass the attachment straps through 5 Plug the electrical connection
the bottom of the miniPRO and the cable of the Gokart into the
strap fixing holes. Tighten the straps. power extension cord. Align
the groove and do not force
Make sure the safety straps are secured
the cord in.
to prevent accidental release.
Charge ports must be dry.
Refer to the assembly procedure and
carry it out in reverse order.
6
Specifications
Name Ninebot Gokart Kit
Product
Model N4MZ98
Supported
Name and model Ninebot by Segway miniPRO (Model: N3M260, N3M320)
models
After extension (Max status): 54×32×24 in (1383×822×600 mm); before extension
Vehicle size
(Min status): 40×32×18 in (1004×822×459 mm)
Size
Package size 43.1×34.1×20.1 in (1095×865×510 mm)
Max payload 220 lbs (100 kg)
Weight
Net weight 61.3 lbs (27.8 kg)
Height requirement 51-75 in (130-190 cm)
Driving
Recommended Age 8+ years old
Speed limit 15 mph (24 km/h)
Novice speed limit 5 mph (8 km/h)
Reversing speed limit 2 mph (3 km/h)
Typical Range [1] 9 mile (15km)
Steering ratio 2.1:1
Machine
Ground clearance 1.6 in (40 mm)
Parameters
Maximum slope [2] 15°
Traversable Terrain Hardened road, flat road surface, slopes below 15°
Operating temperature
14°F~ 104°F (-10～40℃)
Storage temperature
-4°F~ 122°F (-20～50℃)
IP rating
IPX4
Front
compartment Model/Quantity 6 AA Batteries
battery [3]
Front tires Tire width: 3 in (80 mm); flatness ratio: 60%; hub diameter: 5 in (127 mm)
Tires
Type Non-inflatable hollow tire
Headlight 0.2 Watt white LED light bar
Light
The indicator comes in three colors: blue, yellow, and red. Blue means that the vehicle is in normal
condition. Yellow means that the vehicle needs to be activated or the batteries in the front compartment
Status indicator
need to bereplaced. Red means that the vehicle has a performance failure, and you need to open the
app to check the cause of the failure and contact the after-sales service.
Braking method Electronic brake + mechanical handbrake
Brake
Braking distance [4] 20 ft (6 m)
8 Install the Gokart batteries.
Unscrew the battery
compartment cover and
insert batteries into the
compartment. Close and
tighten the cover.
To avoid issues that may be
caused by corrosion,
remove the batteries if not
using the Gokart for an
extended period of time.
7 Adjust the steering wheel height:
a
Raise the steering wheel to a
suitable height.
a
b Insert the quick release
screw into the hole of the
d
b
c
corresponding height.
c Tighten the quick release nut.
d
Press to fix the steering wheel
quick release components.
e
b Ensure the steering wheel does
not shake. Otherwise, repeat the
steps b, c, d, e.
d
a
b
Four screws
c
already inserted
into the screw
holes.
6 Stretch the frame and adjust the length of the body:
a With both hands holding the steering wheel and the seat,
stretch the frame out to a suitable position along the
horizontal direction of the connection tube.
b
Align the scalable structure of the frame with the marking
on the connection tube.
c
Positioning: Use a 5mm hex wrench to press the two
screws into the holes on the left and right connection
tube in order, as shown in the figure above (The screw is
set to a depth of about 1cm for successful position).
d
Tighten the 4 screws.
[1] Typical Range : Under the
circumstances of full power, 154
lbs (70kg) load, and 77°F(25℃)
ambient temperature, and
measured on a flat road at an
average speed of 9 mph (15 km/h).
[2] Maximum slope: Refers to the
maximum slope that a 220 lbs (100
kg) driver can climb at a speed not
faster than 3 mph (5 km/h).
[3] Front compartment battery: The
battery compartment inside the
frame that is used to power the
frame indicator/headlight. When
the battery is low, the blue
indicator light turns yellow and
blinks. You need to replace the
batteries yourself.
[4] Braking distance: Under the
circumstances of full power, 154
lbs (70kg) load, and measured on a
flat hard road at an average speed
of 12.4 mph (20 km/h).
Note: You can also open the App
for more specific tips.
