Summary of Contents for Bio-Art Microblaster

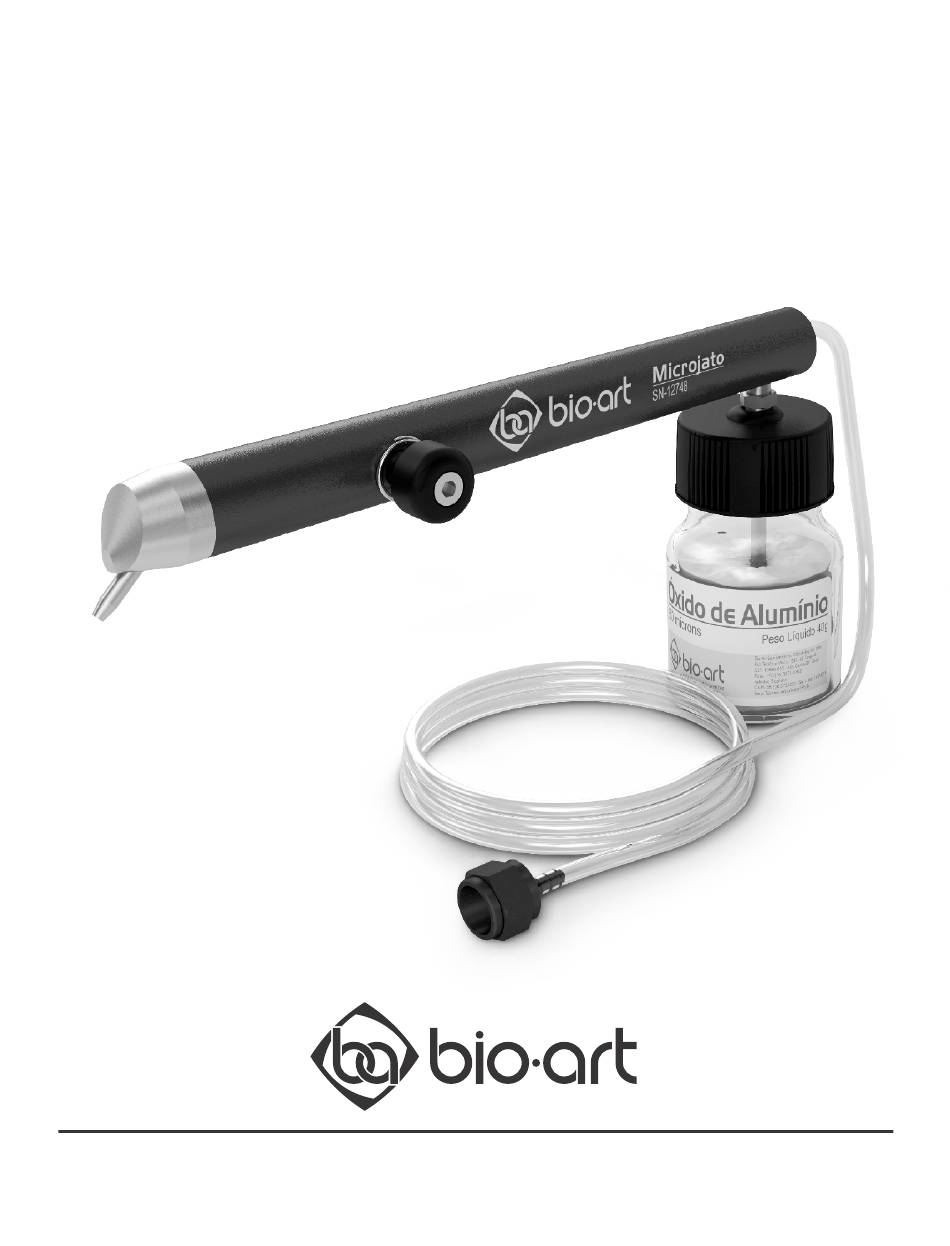

- Page 1 MicroBlaster i n t e l l i g e n t s o l u t i o n s U S E R M A N U A L...
-
Page 2: Table Of Contents
INDEX 1. Introduction ..................2. Technical specifications..............3. Package content................4. Main characteristics of the model............. 5. Main items of the product..............6. Installation instructions..............7. Use instructions................8. Maintenance and cleaning..............9. Safety precautions................10. Warnings..................11. Special storage conditions.............. 12. -
Page 3: Introduction

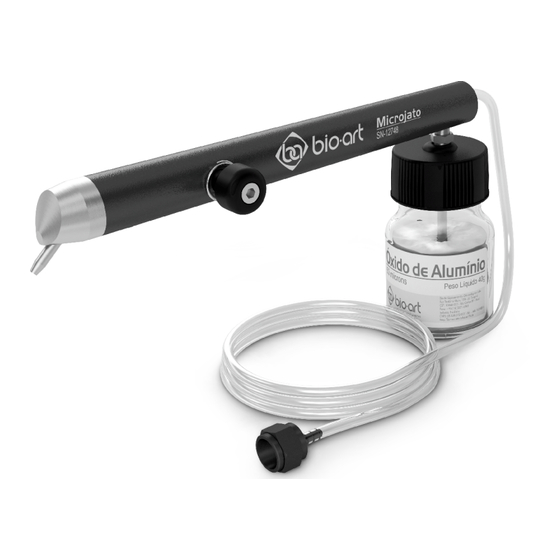

Bio-Art Microblaster is a portable pneumatic device, easy to install and operate, designated to surface blasting, mainly in dental works. The use of Microblaster in dentist's offices and dental laboratories has more and more been requested for being practical, ergonomic and accurate in small jobs and/or where the area to be blasted has a slight contact with areas of preservation from blasting. -
Page 4: Main Characteristics Of The Model
100 microns Possibility for intraoral use Exclusive use in laboratories 5. MAIN ITEMS OF THE PRODUCT Microblaster Standard and Lab Models: 01 - Ejecting needle 02 - Fixed nozzle 138º 03 - Microblaster Body 04 - Switch button... -
Page 5: Installation Instructions
PLUS MAIN ITEMS 6. INSTALLATION INSTRUCTIONS The Bio-Art Microblaster shall be installed by means of a nut with a spigot (10) in a pure and dry compressed air network. For the equipment and the user's safety, and for better performance during the blasting works, make sure the compressed air pressure is kept stable at 60 to 80 lbf/inch2 (4~5.5 Kgf/cm²... -
Page 6: Use Instructions
(indicated for intraoral works on posterior teeth) and another at 138º (indicated for laboratory works and intraoral works on anterior teeth). According to the kind of work to be carried out, fix one of the nozzles on the Microblaster body by means of the fixing nut (12). - Page 7 4- With the tank duly filled in and introduced in Microblaster, press the switch button (04) to start the blasting process. Remark: If the blasting is interrupted for any reason even with the switch button (04) pressed and the tank (06) filled in with abrasive, follow the steps below: •...
-
Page 8: Maintenance And Cleaning
_______The “Retro-blasting” procedure shall not be executed for more than five _______seconds, which might cause breakage of the tank for abrasive (06). For the Microblaster cleaning and disinfection, use only a cloth dampened with water or alcohol 70%. _______Bio-Art Microblaster shall never be sprayed with liquids; be submerged... -
Page 9: Warnings
_______operator's and the patient's personal protection, indications and contra- _______indications and side effects. Bio-Art denies any responsibility for any damage caused by undue use of Microblaster and in cases where the safety items described in this document have not been complied with. General and laboratory use: The Use of personal protective equipment (PPE's) when working with Bio-Art Microblaster is compulsory. -
Page 10: Special Storage Conditions
• The aluminum oxide used in Microblaster might cause skin, eye and respiratory tract irritation. Never use Microblaster without personal protective equipment (PPE). • Never use aluminum oxide with traces of moisture or contaminants. • Never use aluminum oxide with granulation out of the manufacturer's specification (up to 100 Microns). -
Page 11: Symbols
***In case of clogging in the Microblaster internal pipeline, a simple "Retro- blasting" procedure might solve the problem. For this purpose, see the information described in item 8. Maintenance and cleaning of this user manual. 13. SYMBOLS Check Instructions Authorized Representative in... -
Page 12: Authorized Technical Assistance
In case of doubts, contact the manufacturer: _______BIO-ART EQUIPAMENTOS ODONTOLÓGICOS LTDA _______Rua Teotônio Vilela, 120 – Jardim Tangará _______Zip Code 13568-000 – São Carlos – SP – Brazil _______Tel. +55 (16) 3371-6502 – Fax +55 (16) 3372-5953 _______CNPJ 58.538.372/0001 – State Regis. 637.034.447.113 _______www.bioart.com.br 15. - Page 14 i n t e l l i g e n t s o l u t i o n s Rua Teotônio Vilela, 120 - Jd. Tangará - CEP 13568-000 - São Carlos - SP - Brasil Tel. +55 (16) 3371-6502 - Fax +55 (16) 3372-5953 www.bioart.com.br...
