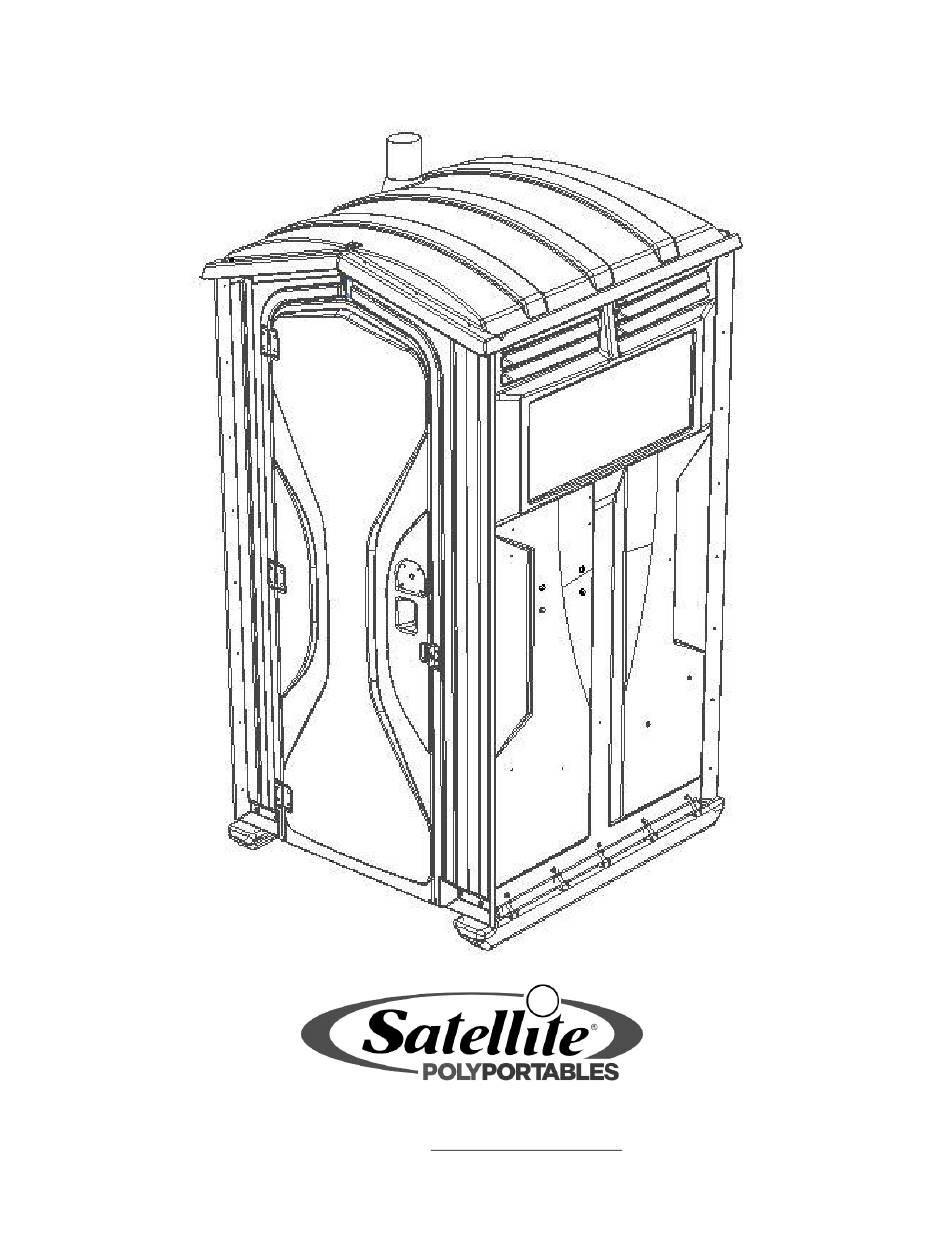

- Page 1 TUFWAY POP RIVET Portable Restroom Assembly Instructions 2530 Xenium Lane North, Minneapolis, MN 55441 Telephone: 763-553-1900 Fax: 763-553-1905 800-328-3332 / www.satelliteindustries.com 10/2019 PN 10900 /REVR...
-
Page 2: Helpful Hints
INTRODUCTION Instructions for the Tufway portable restroom Satellite restrooms must be assembled according to approved assembly procedures. Avoid variations in assembly which could adversely affect product life. The assembly procedures are written for assembly of single units. If assembling multiple units, considerable efficiency can be gained by working in assembly line fashion. - Page 3 EXPLODED UNIT ASSEMBLY * USED WITH BLOW MOLDED BASE ONLY ** EUROPE ONLY 10/2019 PN 10900 /REVR...
- Page 4 EUROPE ONLY HARDWARE 18191 NUT, 5/16” SERRATED FLANGE 13173 BOLT’ 5/16 X 3-1/2 HWHD 22384 BOLT- ¼-20 X 1-1/4 DOG PNT WSH HDWE, TUFWAY 3 ROLL POP RIVET 22748 11315 WASHER- 3/16” RIVET STNLS 22310 SPINDLE- PRGRD II 3 ROLL METAL 13860 SCREW, #14 X 1-1/2 W/WSH GOLD 10122...
- Page 5 DIRECTIONS 1. JOIN PANELS TOGETHER WITH CORNER MOLDING • SUPPORT THE REAR PANEL WITH A BOX AT LEAST 40” TALL BUT NOT WIDER THAN 41”. IF ASSEMBLING SINGLE UNITS, USE THE WASTE TANK ON END • INSTALL RIVETS ( PN 11030 ) FROM REAR PANEL WITH WASHER ( PN 11315 ) ON THE SIDE PANEL.
- Page 6 ROTO BASE: • STARTING WITH REAR PANEL LOCATE DIMPLES ON BASE (see below). • ALIGN OUTER PANEL HOLES WITH DIMPLES. • USING THE DRILL AND 3/8" HEX DRIVER BIT INSTALL SCREWS (PN 13860 ). • INSTALL REMAINING SCREWS IN HOLES. •...
- Page 7 4. PLACE TANK IN UNIT • THE TANK MUST BE SEATED PROPERLY WHILE ATTACHING THE SIDE PANELS, HAVE A PERSON STAND IN TANK WHILE LAGGING PANELS TO TANK. • USE 3/8" NUT DRIVER BIT & TIGHTEN SCREWS UNTIL RUBBER WASHER BEGINS TO FLATTEN . DO NOT TO OVER TIGHTEN SCREWS.
- Page 8 7. INSTALL PAPERGUARD • DRILL (4) ¼” HOLES AT DIMPLES ON RIGHT SIDE PANEL. • INSTALL PAPERGUARD USING (4) RIVETS & (4) WASHERS. NOTE: IF INSTALLING OTHER ACCESSORIES SUCH AS A SLIMMATE SINK, THE PAPERGUARD MUST BE PLACED IN A DIFFERENT LOCATION.
- Page 9 10. ATTACH FRONT ASSEMBLY TO SIDE PANELS • INSTALL RIVETS AND WASHERS FRONT RIVET ASSEMBLY WASHER PANEL 11. ATTACH FRONT ASSEMBLY TO BASE A. BLOWMOLDED BASE: SCREW / BOLT FRONT ASSEMBLY TO BASE TIGHTEN LAG SCREW UNTIL RUBBER WASHER BEGINS TO FLATTEN – DO NOT OVER TIGHTEN. BOLT 22384 INTO INSERTS SCREW 13860...
- Page 10 C & D. IMPACT BASES: • INSTALL SCREWS 13860 (4) USING A 3/8 NUT DRIVER BIT. • REMOVE SHIPPING SCREW. • OPEN DOOR AND INSTALL THE (2) SCREWS THROUGH DIMPLES ON INSIDE OF FACING FRAME. TIGHTEN SCREW UNTIL RUBBER WASHER BEGINS TO FLATTEN - DO NOT OVER TIGHEN .
- Page 11 12. INSTALL DOOR LATCH • USE PHILLIPS SCREWDRIVER TO INSTALL (4) #10 SCREWS THROUGH LATCH IN DOOR ASSY. LATCH, RESTROOM PLASTIC 2530 Xenium Lane North, Minneapolis, MN 55441 Telephone: 763-553-1900 Fax: 763-553-1905 800-328-3332 / www.satelliteindustries.com 10/2019 PN 10900 /REVR...
