Scallop Imaging 6 Installation Instructions

Note: The A7-180 and D7-180 cameras use the
Model 7 Outdoor Housing. The M6-200 camera
requires the Model 6 Outdoor Housing.
B
2014 Scallop Imaging 480 William F. McClellan Hwy, Ste 306, Boston, MA 02128-1389 USA
©
Specifications subject to change without notice. US Patent No. 7,262,789 and additional US and international patents.
Outdoor Housing
Installation Instructions
The Outdoor Housing allows the Scallop Imaging Camera to be
installed against a wall, pole or any stable surface. The camera is
securely enclosed and protected from the elements. The vertical
and horizontal angles can be adjusted with the brackets located on
the back. In this enclosure the operating temperature of the
cameras is -40ºF to 140ºF (-40ºC to 60ºC).

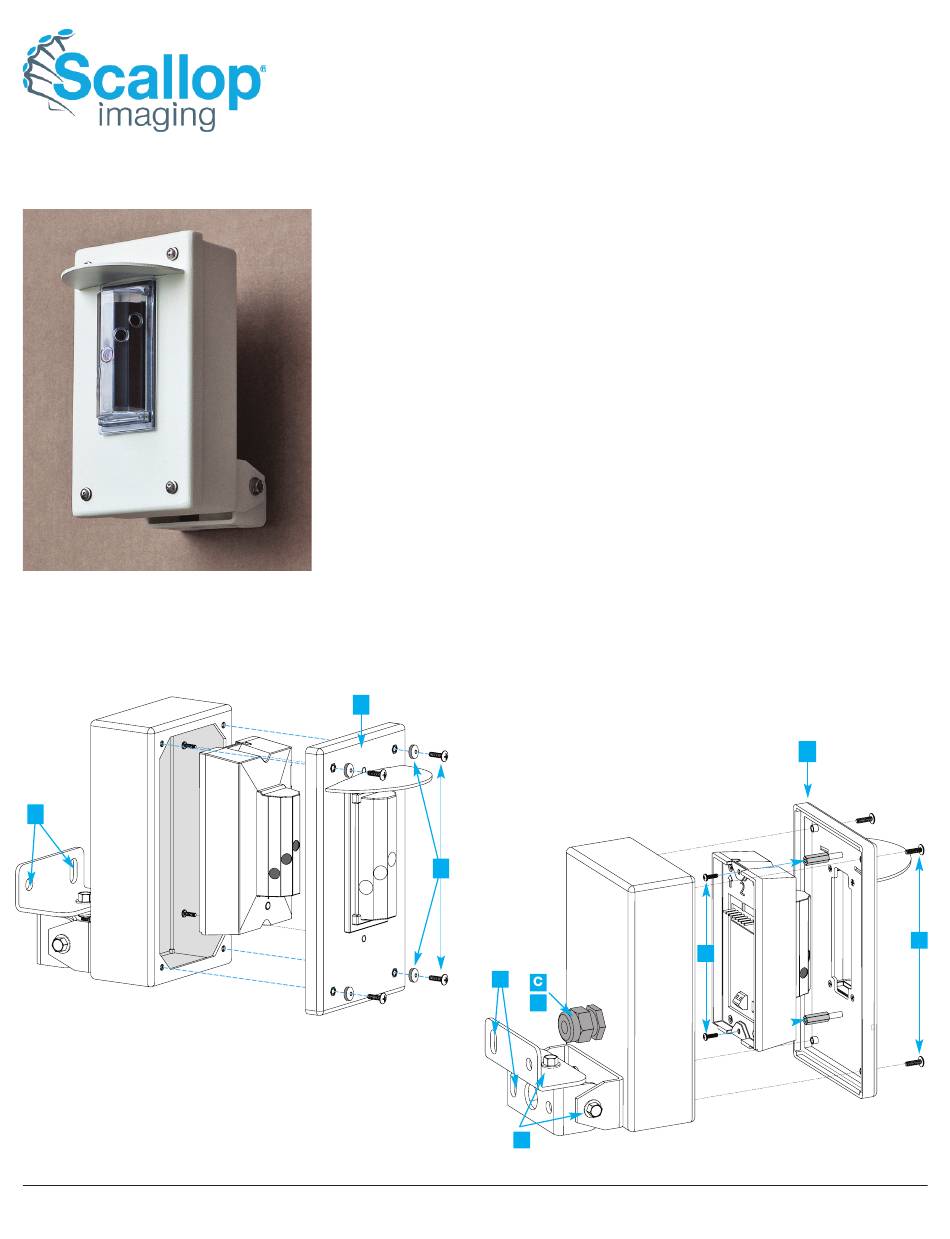

Installing the Camera

1. Remove the Outdoor Housing front cover (A).
2. Attach Outdoor Housing with mounting brackets to mounting surface (B). Use
appropriate fasteners (not included).
3. Feed your camera connection cables through the cable opening (C) at the back
of the Outdoor Housing and attach to your camera. (See the Getting Started
guide for the appropriate connection configuration.)
4. Attach the Camera to the extension posts inside the Front cover using the
provided screws. Be sure to clean the camera lenses carefully just before
screwing the cover to the camera, since handling the camera often leaves
fingerprints.
5. To securely refasten the Outdoor Housing front cover to the Housing body, insert
the washer onto the tamper-resistant screw with the metal side against the
screw head. Insert the screws (E) and tighten until the inner gasket is com-
pressed to assure a watertight seal. The rubber side should contact the housing
face.
6. Tighten the cable opening nut (F). Do not overtighten.
7. Adjust the horizontal and vertical angle as needed using the mounting
brackets (G) on the housing back.
A
E
B
F
G
D
617.849.6400
A
E
www.scallopimaging.com
DW02-600-030-RevA
20140730
