Summary of Contents for RASOR FP702

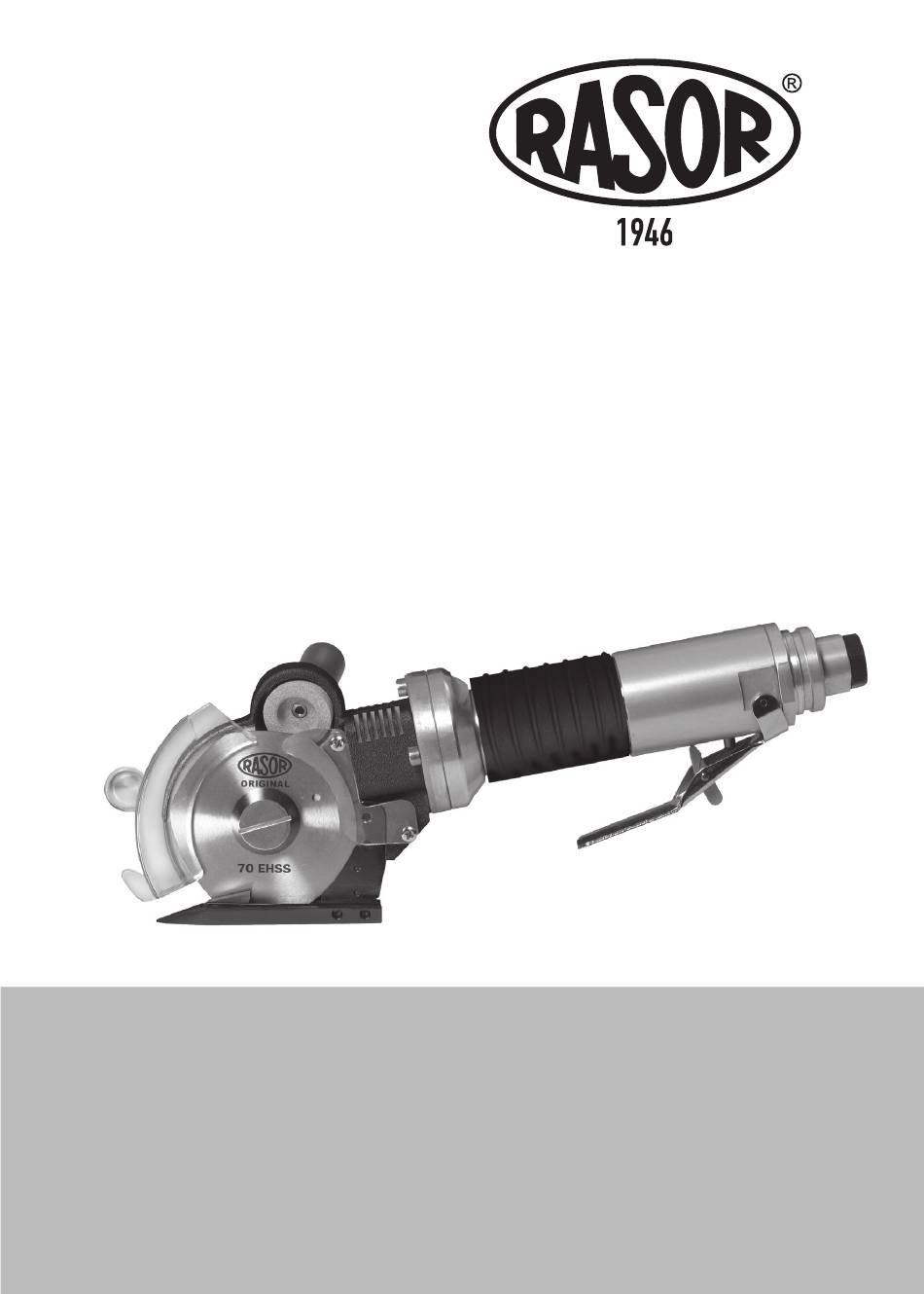

- Page 1 FP702 PNEUMATIC SCISSORS USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of pneumatic scissors FP702 and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. -
Page 4: Informative Letter
® risk of explosions and at high risk of fire. In case of damage or malfunction, pneumatic scissors FP702 must not be used until the Customer Care Technical Service has repaired them. Customer Care Technical Service For any information, please contact ELETTROMECCANICA S.r.l. -
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Model Serial number FP702 AB_________ M o t o r Year of production 1300... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a pneumatic scissor model FP702 which is used in order to quickly cut fabrics in the textile industry and other materials. It is extremely versatile, light and precise in the cutting operation. Thanks to the use of a supporting front foot and of an effective cutting system with a hexagonal blade it is possible to use the pneumatic scissors to cut different materials. -
Page 7: Technical Features
The silencer must never be removed. NOTE It is advisable for pneumatic scissors FP702 owners to verify the compliance with the standard concerning safety of workers: refer to the Local Law. The use of ear protecting devices is compulsory. -
Page 8: Use Warnings
• Always pay attention to the position of the air pipe to prevent it from being cut or damaged by the blade. • It is allowed to assemble pneumatic scissors FP702 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Residual Risks
9. RESIDUAL RISKS Even though the pneumatic scissors are safe, operators must pay attention to preserve their and other people’s safety. The cutting blade can work even when the protective device is disassembled. 10. USE To use the pneumatic scissors manually, proceed as follows: Lay the material to be cut on the table;... - Page 10 11. AIR PRESSURE GAUGE (OPTION) The pneumatic scissors must be necessarily fed with lubricated air with a pressure of 4-6 bar. Rasor offers, as option, a reduction unit filter with a ® pressure gauge already calibrated with the quantity of oil to be delivered.
-
Page 11: Blade Replacement
Replace the worn blade with the new one “2”, being careful to center the blade on the gear, in the correct position, and remember to assemble it in order that the writing Rasor can be seen by the operator. 6) Assemble all the components again and carry... -
Page 12: Troubleshooting
15. TROUBLESHOOTING PROBLEM SOLUTION Check the counterblade integrity Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between the Check the fabric thickness blade and the counterblade Check the compatibility between blade and fabric Make sure that the turbine turns correctly Reduce the feeding speed Carry out the lubrication... -
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. In case of returned goods for repair under warranty, the Customer must send to Rasor always ®... - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
