Summary of Contents for RASOR FP503MT

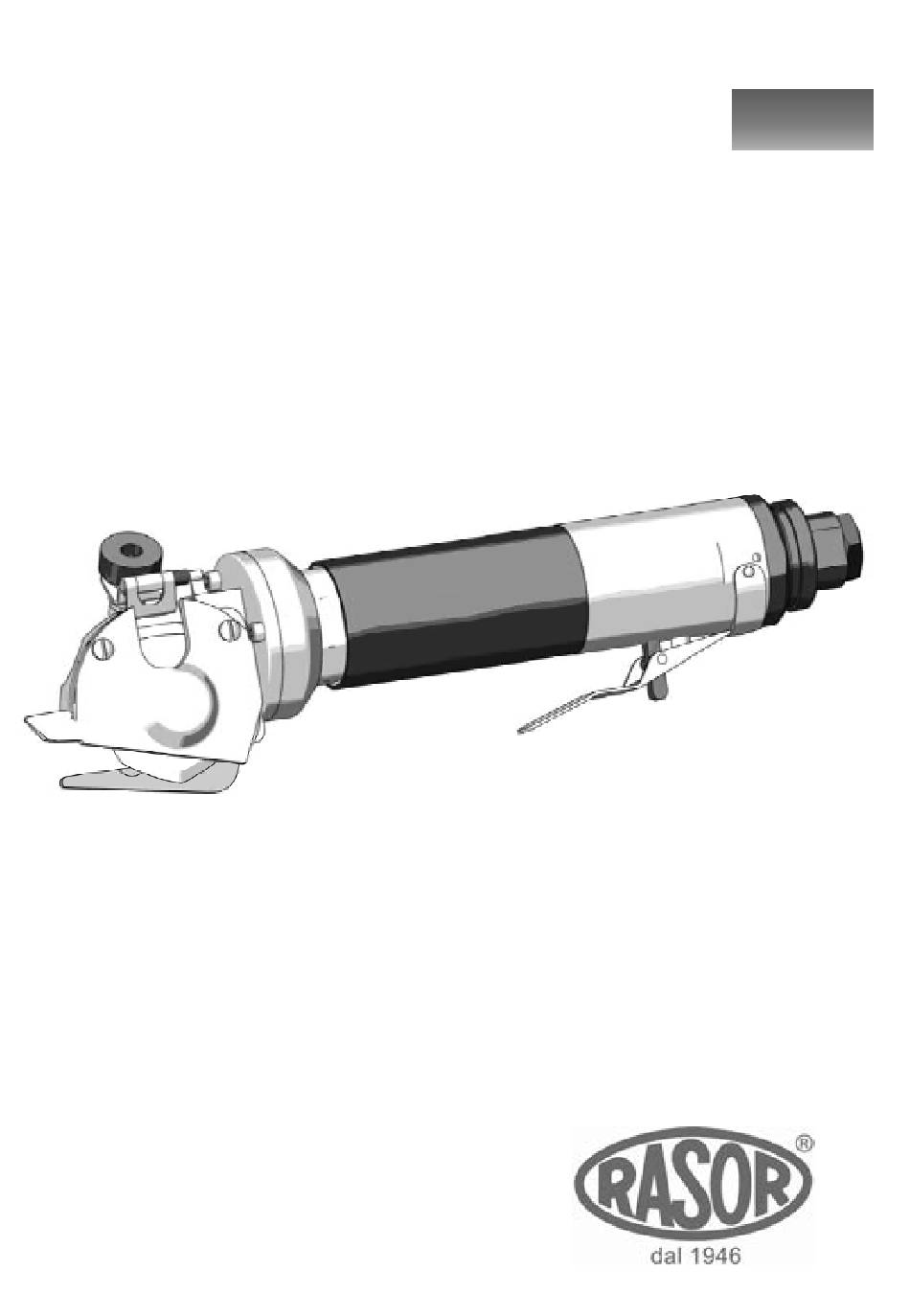

- Page 1 USE MANUAL English PNEUMATIC SCISSORS MOD. FP503MT ED.1-02/13...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of pneumatic scissors FP503MT and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of ® explosions and at high risk of fire. In case of damage or malfunction, pneumatic scissors FP503MT must not be used until the Customer Care Technical Service has repaired them. Customer Care Technical Service For any information, please contact RASOR ELETTROMECCANICA S.r.l.
-
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Model Serial number FP503MT ST____ M o t o r Year of production 1900... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a pneumatic scissor model FP503MT which is used in order to quickly cut composite materials, in particular the carbon fibre. It is extremely versa- tile, light and precise in the cutting operation. Thanks to the use of a supporting front foot and of an effective cutting system with heptagonal, circular or decagonal blade, it is possible to use the pneumatic scissors for the precise mold trimming. - Page 7 The technical data are only indicative and they can be changed without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by pneumatic scissors FP503MT is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 3744:2010.
-
Page 8: Use Warnings
Rasor ® · The pneumatic scissors FP503MT are equipped with double safety push button with a lever and a ratchet on the handle: the ratchet prevents the start push button from being enabled accidentally, the lever operates the scissors. Never remove the ratchet. -
Page 9: Residual Risks
9. RESIDUAL RISKS Even though the pneumatic scissors are safe, operators must pay attention to preserve their and other people’s safety. The cutting blade can work even when the protective device is disassembled. 10. USE To use the pneumatic scissors manually, proceed as follows: Lay the material to be cut on the table;... - Page 10 11. AIR PRESSURE GAUGE (OPTION) The pneumatic scissors must be necessarily fed with lubricated air with a pressure of 4-6 bar. Rasor offers, as option, a reduction unit filter with a ® pressure gauge already calibrated with the quantity of oil to be delivered.
-
Page 11: Blade Replacement
(the one with the writing Rasor) positioned towards the external side of the pneumatic scissors. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
15. TROUBLESHOOTING PROBLEM SOLUTION À à Check the counterblade integrity Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between Check the fabric thickness the blade and the counterblade Check the compatibility between blade and fabric Make sure that the turbine turns correctly Reduce the feeding speed Carry out the lubrication... -
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. In case of returned goods for repair under warranty, the Customer must send to Rasor always ®... -
Page 15: Declaration Of Conformity
12100:2010. Noise tests have been carried out according to UNI EN ISO 3744:2010. The pneumatic scissors FP503MT have been produced according to workmanlike standards. We declare that the above-mentioned goods comply with the standards in force concerning safety and hygiene at work that can be applied to the material itself (refer to the Local Law).
