IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2.
This luminaire must be installed in accordance with the NEC or your local electrical
code. If you are not familiar with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local.
Si vous n'êtes pas familier avec ces codes et ces exigences, veuillez contacter un
électricien qualifié.
3.
When handling, hold luminaire on sides to prevent damage to the top screen or
LED's.
4.
Take care to keep the LED lenses clean during installation.
SAVE THESE INSTRUCTIONS FOR FUTURE
TO INSTALL:

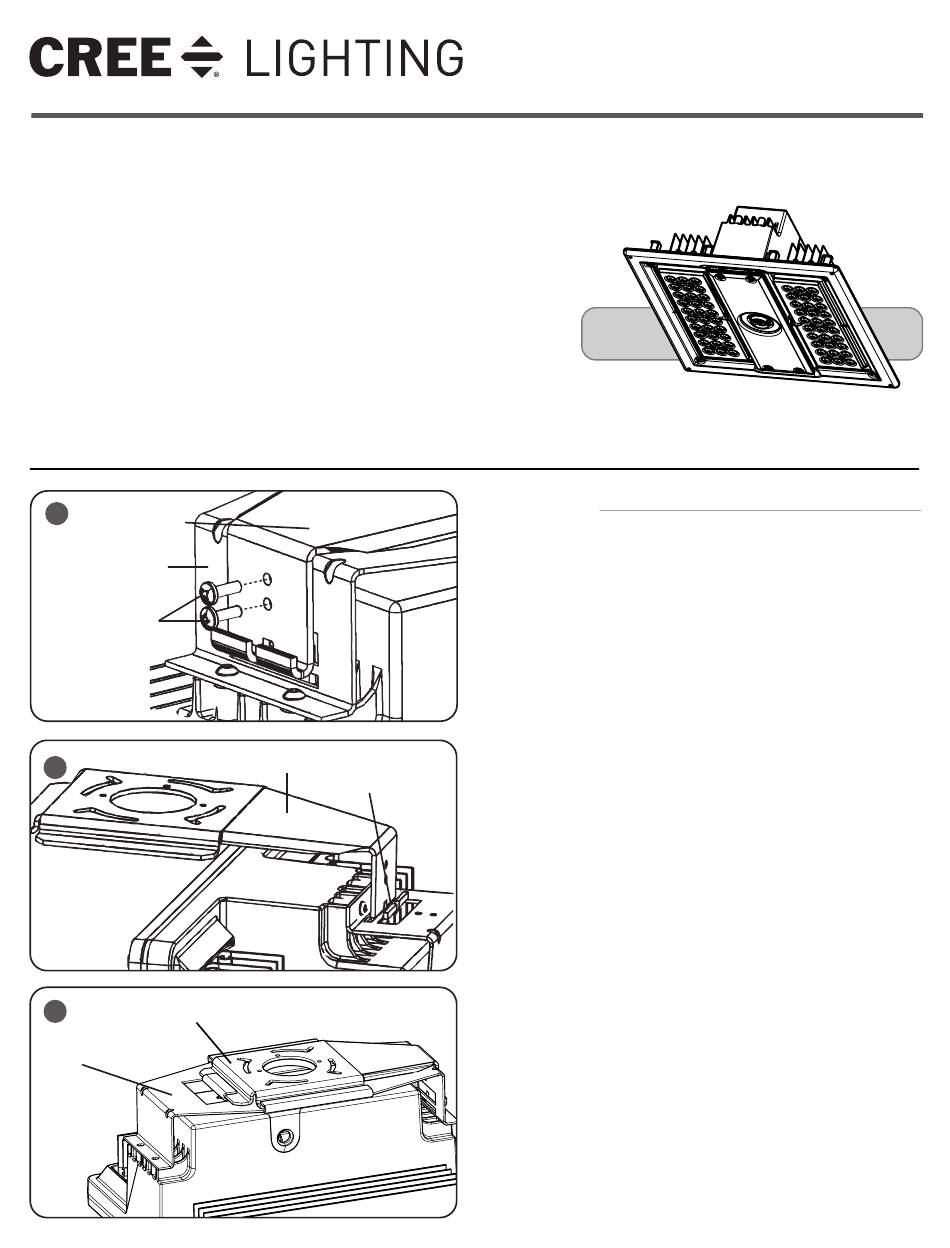

1
Junction Box
Mounting Bracket
Luminaire Support
Bracket
Loosen (2)
Screws
2
Junction Box
3
Mounting Bracket
Luminaire Support
Bracket
1 of 3
REFERENCE
Junction Box
Mounting Bracket
Hook-shaped
Projection
304 Series™
LED Parking Structure
Direct, Hook and Cord, Pendant and Adjustable Mount
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
DIRECT MOUNTING
STEP 1:
Remove the junction box mounting bracket from the
luminaire by loosening (2) screws and sliding it out of
the channels of the luminaire support bracket. See
Figure 1 and 3.
STEP 2:
Attach the junction box mounting bracket to the
customer supplied junction box using the customer
supplied screws.
STEP 3:
Temporarily hang the luminaire from the hook-shaped
projection on the junction box mounting bracket. See
Figure 2.
STEP 4:
Make wiring connections per the Electrical
Connections section.
STEP 5:
Secure the cord plate/gasket assembly to the junction
box mounting bracket using (2) supplied screws.
STEP 6:
Remove the luminaire from the junction box mounting
bracket and slide the channels on the luminaire
support bracket onto the flanges of the junction box
mounting bracket. See Figure 3.
STEP 7:
Secure the luminaire to the bracket using the (2)
screws that were loosened in Step 1.
CI350X01R1_A
