559-734-7451 800-367-5480 FAX 559-734-7460 INSTALLATION INSTRUCTIONS Rear Stabilizer Bar Thank you for purchasing a quality Hellwig Product. PLEASE READ THIS INSTRUCTION SHEET COMPLETELY BEFORE STARTING YOUR INSTALLATION 7694 (R-7694) 01/09/2012... - Page 2 U-Bolts and saddle brackets with the flat washers and 1/2” locknuts provided. LEAVE LOOSE AT THIS TIME to allow for adjustment later. 4. Position sway bar on axle so that it clears all chassis components including fuel tanks, brake lines, fuel lines, etc. 7694 (R-7694) 01/09/2012...

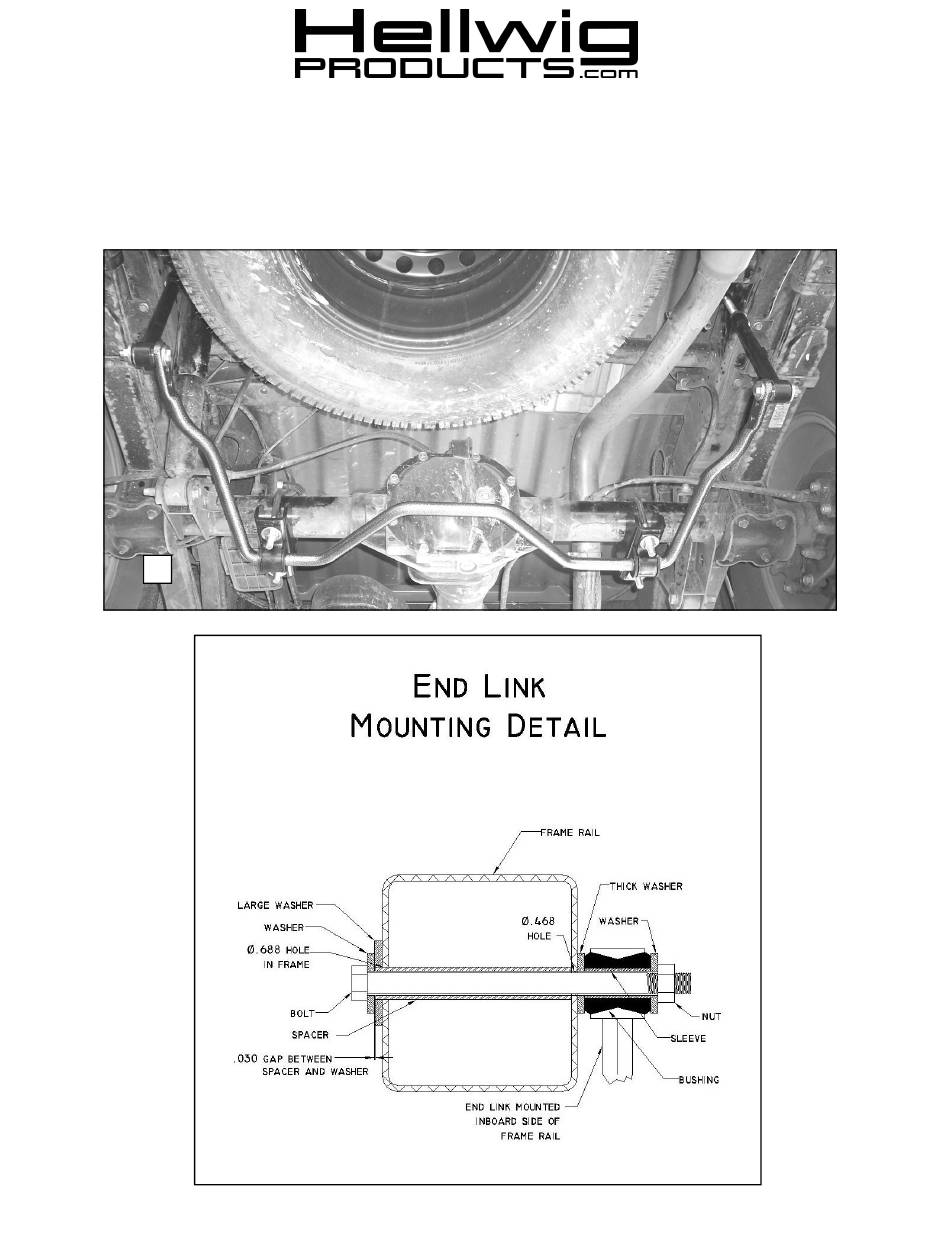

- Page 3 10. Review end link mounting detail before drilling holes. BEFORE DRILLING ANY HOLES IN THE RAIL—RELOCATE AND PROTECT ANY FUEL OR BRAKE LINES THAT MAY IN- TERFERE WITH THE DRILL BIT OR SWAY BAR INSTALLATION. Driver Side Passenger Side Center of end link bushing Center of end link bushing 7694 (R-7694) 01/09/2012...
- Page 4 21. Bounce the vehicle checking for clearance on all under carriage components: fuel tank, shocks, exhaust, differential, brake and fuel lines, etc. Test drive the vehicle and recheck all clearances and the installation alignment. Adjust as needed. Re-check your installation after one week of driving and periodically on a regular basis. 7694 (R-7694) 01/09/2012...
- Page 5 It is recommended that the outer hole be used for street driving. ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES THIS INSTRUCTION SHEET, ALL IMORTANT NOTE CARDS AND THE WARRANTY FORM 7694 (R-7694) 01/09/2012...
