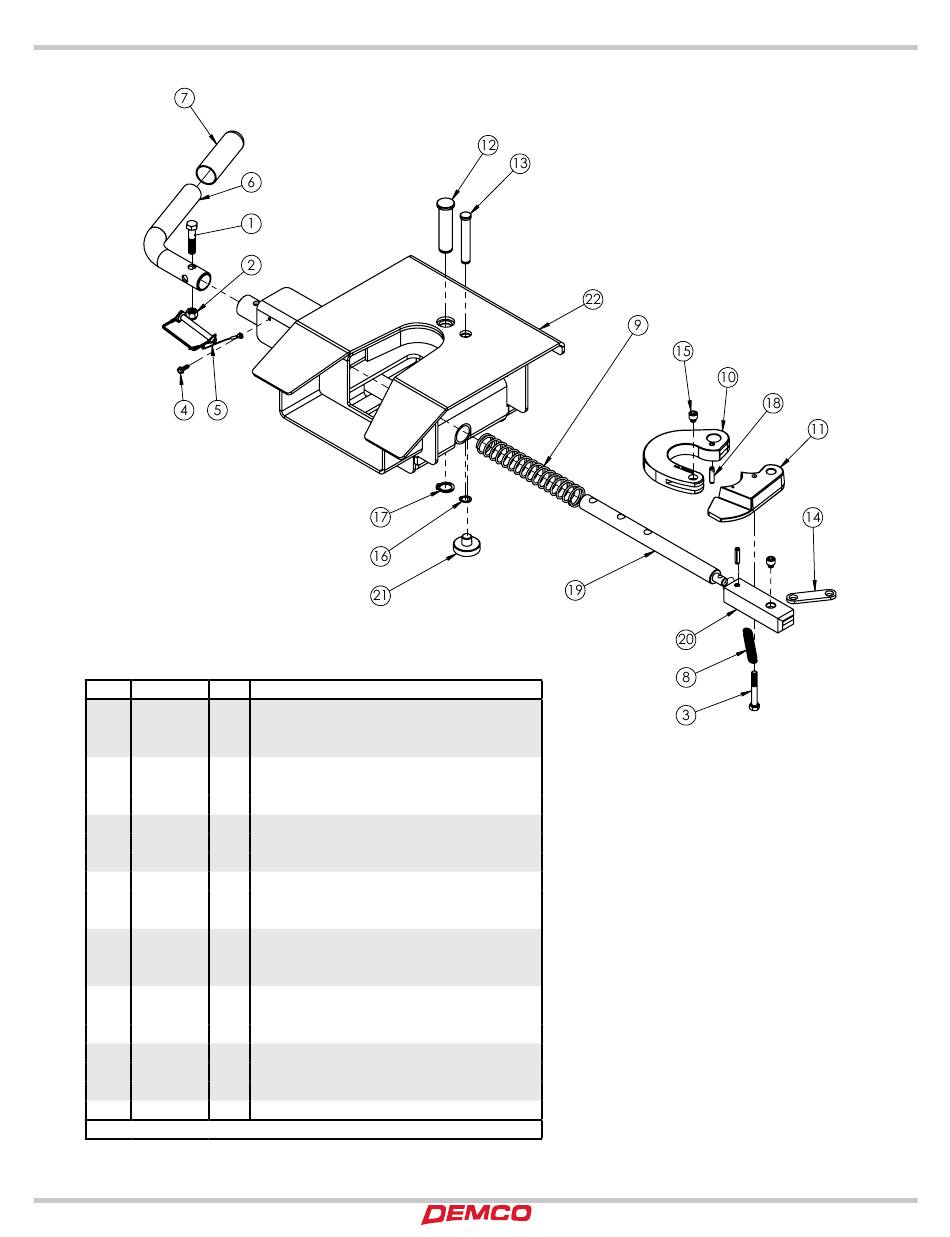

Pivot Head Parts Breakdown - Demco Recon Operator's Manual

ITEM PART #
1 00908
2 02592
3 03547
4 03787
5 05337
6 14214-76
7 14216
8 14315
9 14385
10 14594-95
14595-95
11
14735-95
12
13 14736-95
14 14737-95
15 14747
16 14749
17 14750
18 14865
19 14867-95
20 14869-95
21 15769
22 15801-76
Please order replacement parts by PART NO. and DESCRIPTION
HJ26201
6169 Parts Breakdown
QTY DESCRIPTION
1 BOLT, .375 NC X 1.75 HEX GR.5
1 NUT, .375NC NYLON LOCK
1 BOLT .313NC X 2.25 GR5 HEX
1 SCREW #10NC X .50 SELF DRILLING HEX HD
1 SAFETY LOCK PIN ASSEMBLY
1 HITCH HANDLE
1 YELLOW GRIP F/ 1.125 RND TUBE
1 SPRING, TENSION, .063 WIRE X .50 OD X 2.75
1 SPRING COMPRESS .105 MW
1 JAW HOOK
1 SECONDARY LATCH JAW
1 MAIN JAW PIN
1 SECONDARY JAW PIN
1 BAR/JAW LINK
2 SCREW .313NC X .25 SOCKET HD CAP
1 SNAP RING EXT FOR .50 SHAFT
1 SNAP RING EXT F/ .75SHAFT
2 ROLL PIN, .25 X 1.00
1 LEVER ARM BAR
1 LOCK BAR
1 URETHANE PIVOT BUMPER 3/8" THICK
1 5th WHEEL DOUBLE PIVOT HEAD
