This document is available by request to ODOT Traffic Operations.
Please contact the following for access to this document:
Charles.Fisher@dot.ohio.gov; Alex.Weinandy@dot.ohio.gov;
Jeremy.Thompson@dot.ohio.gov
Internal Access: T:\CO\Shared\Electrician Website
INTUICOM R
ADIOS
(EB-6 P
, COMM II/T)
LUS
Advertisement
Related Manuals for Intuicom EB-6 PLUS
Summary of Contents for Intuicom EB-6 PLUS

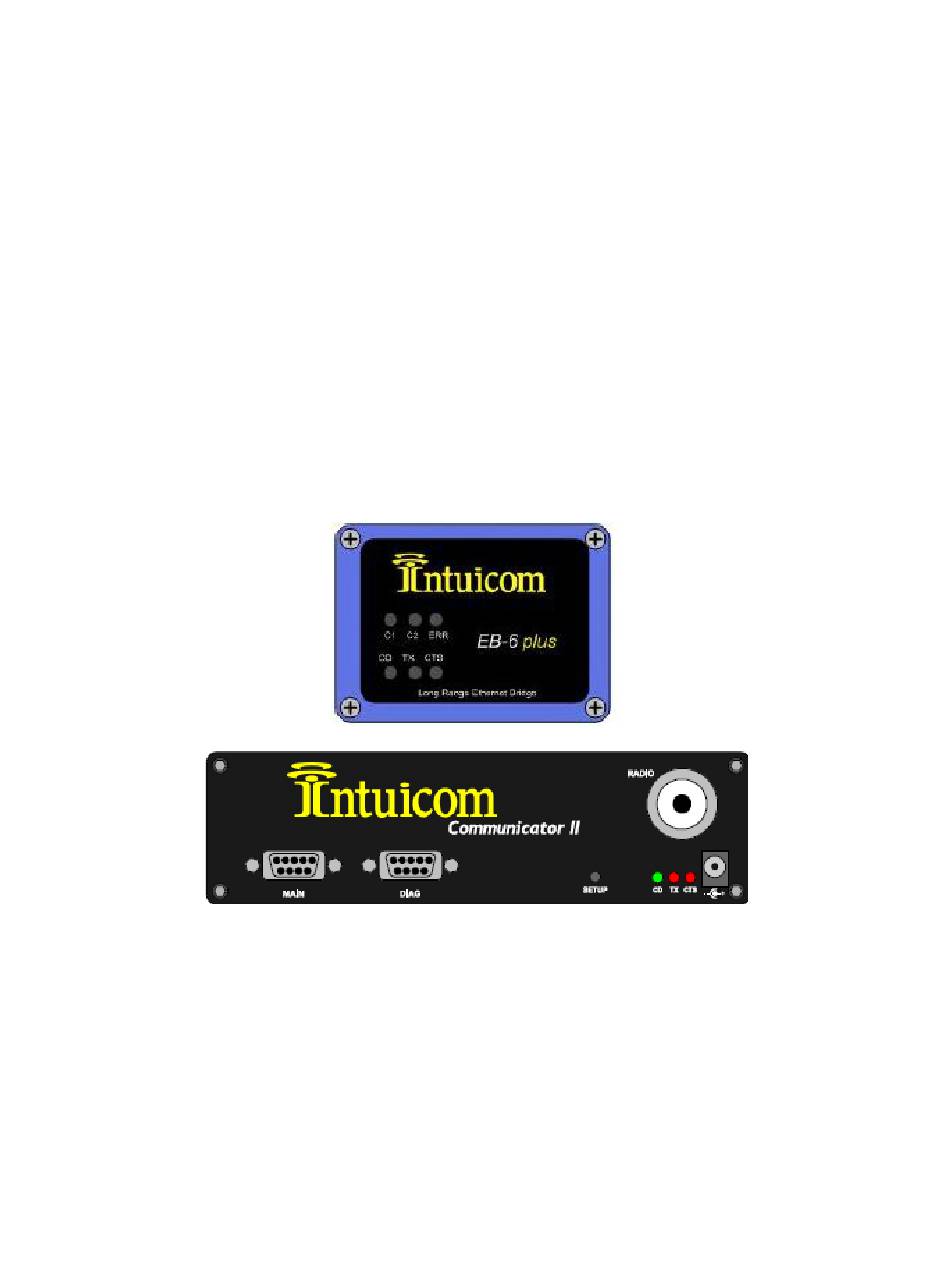

- Page 1 This document is available by request to ODOT Traffic Operations. Please contact the following for access to this document: Charles.Fisher@dot.ohio.gov; Alex.Weinandy@dot.ohio.gov; Jeremy.Thompson@dot.ohio.gov Internal Access: T:\CO\Shared\Electrician Website INTUICOM R ADIOS (EB-6 P , COMM II/T)
- Page 2 OFTWARE EB-6 P NTUICOM LUS RADIOS Use internet explorer (with the IP address of the radio) and by changing your PC LAN settings to be comparable to radio IP address. T/II OMMUNICATOR RADIOS CommPro software with a straight through serial cable connecting the radio to the pc. ARAMETERS Parameters that need to match for all radios in the same network: Frequency Key - Controls hopping pattern of the radio...
- Page 3 ETUP EB-6 P NTUICOM LUS RADIOS If unsure of the radio IP address, or it needs to be changed, this can be done using hyperterminal with a straight through serial cable and the following settings:...
- Page 4 Connect your PC to radio and type in the radio’s IP address in internet explorer. The username/password is admin/admin. To upload the configuration files, click on Maintenance link on the left tab of intuicom page. You can upload the saved ODOT configuration file to the radio from this window. After uploading the configuration template, make sure that you click on IP Address on the left tab above and change it as needed, then click SAVE, and then REBOOT.
- Page 5 Note: All radio IP’s need to be on same subnet, and only one radio should be the master. See example: Endpoint Radio B IP ADD: 10.22.1.120 Subnet Mask: 255.255.255.0 Gateway: 10.22.1.1 Master Radio A Endpoint Radio C IP ADD: 10.22.1.118 IP ADD: 10.22.1.122 Subnet Mask: 255.255.255.0 Subnet Mask: 255.255.255.0...
- Page 6 COMM T/II R ADIOS Open COMM PRO software to start programming radios: To communicate with the radio, use a straight through serial cable. To read the radio information, click READ RADIO, then press the menu/setup button on the radio itself, then click ok in COMM PRO to continue reading the radio information. To write information to the radio, click WRITE RADIO, then press the menu/setup button on the radio itself, then click ok in COMM PRO to continue writing the radio information.
- Page 7 ONNECTIONS All Ethernet connections use a straight through Ethernet cable to the controller. If Ethernet radios are used with Eagle controllers, then a 2901 router will need to be installed in the field, otherwise, the radios can be used as serial radios with the eagle controllers with no additional network equipment.
- Page 8 3. ASC/3 Direct IP Ethernet Radio Setup (ASC/3s) Ethernet Radio Local Controller (ASC/3) (Slave/Endpoint) CDMA Modem Port 1 Ethernet Radio (Master) Unmanaged Switch Port 2 (Comtrol Rocket Linx ES8105) Ethernet Radio Local Controller (ASC/3) Port 1 – CDMA Modem (Slave/Endpoint) Port 2 –...
- Page 9 Intuicom EB-6 plus and Communicator T/II to PC Straight through serial cable (w/ one male and one female end) Note: only the IP address of the EB-6 Plus units can be set via serial connection through hyperterminal (19200, 8,N,1,N…..emulation set to ANSI) Note: Eb-6 Plus can be programmed via web interface using the LAN port on radio, see beginning of document for further instructions.
