The Vollrath Company, L.L.C.
1236 North 18
P.O. Box 611
Sheboygan, WI 53082-0611
Telephone 920 457-4851
Operating and Safety
Instructions

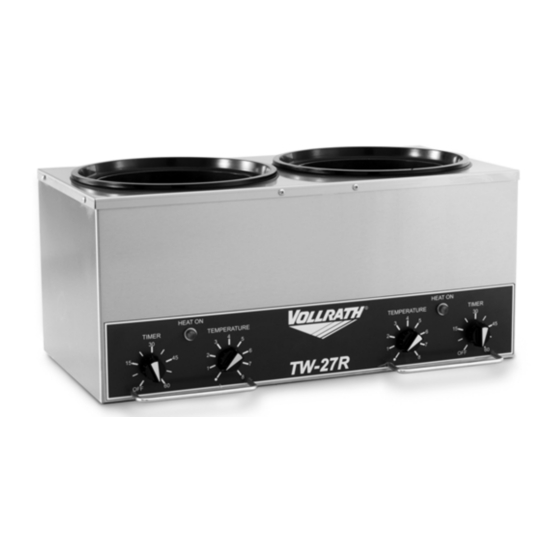

TW 27R & TSM 27
Model Numbers:
72028 - TW 27R, 1400 Watts, 120 Volts
72030 – TSM 27, 1400 Watts, 120 Volts
72031 – TSM 27, 1400 Watts, 120 Volts, With Canopy
72032 – TSM 27, 1470 Watts, 120 Volts, With Canopy and Lights
th
Street
17784 3/03
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vollrath TW 27R
Summary of Contents for Vollrath TW 27R
- Page 1 Instructions TW 27R & TSM 27 Model Numbers: 72028 - TW 27R, 1400 Watts, 120 Volts 72030 – TSM 27, 1400 Watts, 120 Volts 72031 – TSM 27, 1400 Watts, 120 Volts, With Canopy 72032 – TSM 27, 1470 Watts, 120 Volts, With Canopy and Lights...
- Page 2 TW 27R and TSM 2 7 TW 27 R & TSM 27 Thank you for purchasing this Vollrath food rethermalizer/warmer. Before operating this unit, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 3 Preheat for 1 hour 2. Set the timer to 1 (one) hour for rethermalizing. (TW 27R Only) 3. During the rethermalization process, monitor food temperatures closely for food safety. The United States Public Health Service recommends that the entire food product reaches and maintains a minimum of 165°F (74°C) for at...
- Page 4 TW 27R and TSM 27 5. Reduce heat setting to a level that will maintain a safe holding temperature and maintain food quality. (See Food Safety Precautionary Note) FOOD SAFETY PRECAUTIONARY NOTE Monitor food temperatures closely for food safety. The United States Public Health Service recommends that food be held at a minimum of 140°F (60°C) to help prevent...
-
Page 5: Troubleshooting
Probable Cause Symptom Unit operates on HIGH When the timers are used to rethermalize cold food (TW 27R continuously only), the unit will operate on high and not respond to changes in the thermostat. When the timers cycle off and rethermalization is complete, the thermostat will then regulate the temperature of the unit to the setting of the thermostat. - Page 6 TW 27R and TSM 27 Exploded View TSM 27: 17784 3/03...
- Page 7 TW 27R and TSM 27 Exploded View TW 27 17784 3/03...
- Page 8 TW 27R and TSM 27 72031 Menu Board Assembly Parts List: 1. Mounting bracket (Assembled to Menu Board, 4 places) 2. Menu Board with Decal 3. Decal (Not Shown), Affixed to Menu Board 4. Washer ¼” 5. Bolt ¼” x 20 x 1.5”...
- Page 9 TW 27R and TSM 27 72032 Lighted Canopy Assembly Instructions Parts List: 1. Canopy Decal, Not Shown 2. Canopy 3. Light Bracket (Assembled to light and canopy) 4. Halogen Light (Assembled to Bracket) 5. Menu Board Decal, Not Shown 6. Menu Board 7.
- Page 10 Replacement parts – 90 (ninety days) on the part only Fry pans and coated cookware – 90 (ninety days) The Vollrath Company shall not be liable for loss of use of the product or other incidental or consequential costs, expenses or damage incurred by the purchaser.
