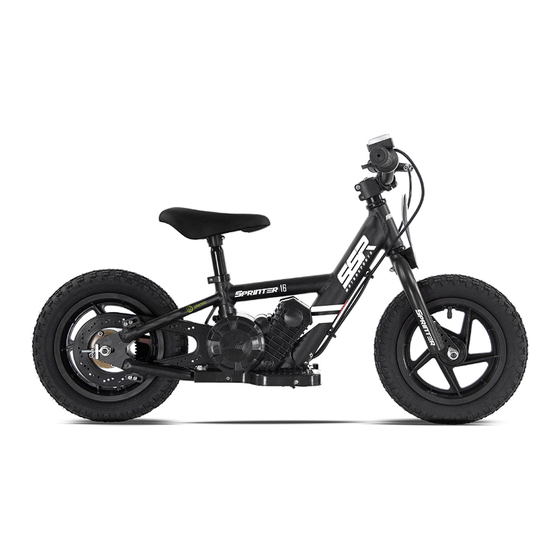

Summary of Contents for SSR Motorsports Sprinter 16

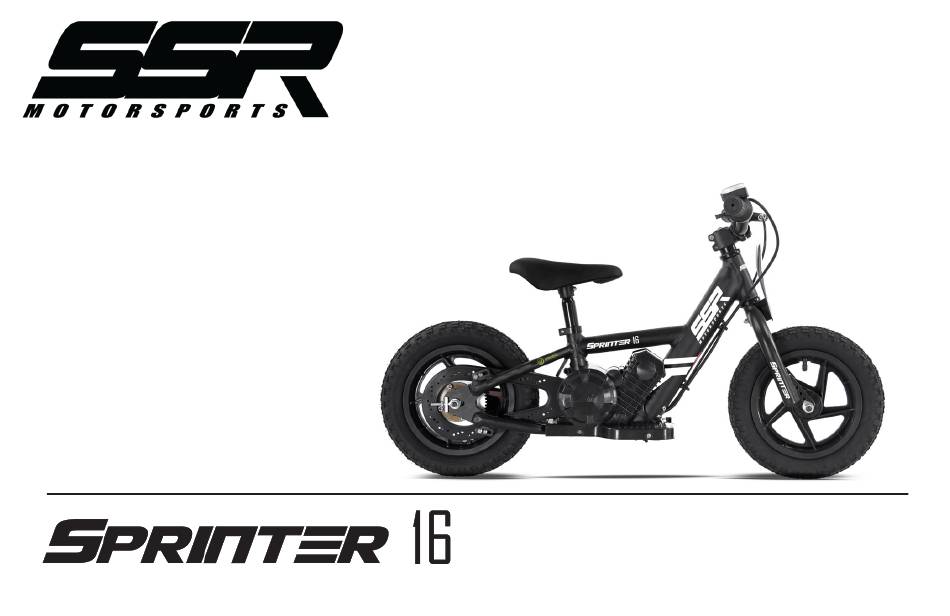

  • Page 1 Owner’s Manual...

  • Page 2: Table Of Contents

    Table of Contents 1. Precautions..........................................3 2. Sprinter 16 Structure....................................4 3. Sprinter 16 Assembly.....................................5 - 7 4. Operation......................................8 - 15 5. Daily Maintenance...................................16 - 23 6. Warranty ......................................24 - 28 SPRINTER 16 OWNER’S MANUAL...

  • Page 3: Precautions

    10. Please turn off the power when you get off of the Sprinter 16 or if you are pushing it, in case the rider pushes the throttle unintentionally, the bike will start suddenly and you could get hurt.

  • Page 4: Sprinter 16 Structure

    Wheel 10. Chain Adjuster 11. Chain Cover 12. Side Cover 13. Controller 14. Battery 15. Seat Post Release 16. Right Grip 17. Throttle 18. Handlebar 19. Left Brake Lever 20. Left Grip 21. Brake Cable 22. Rear Brake SPRINTER 16 OWNER’S MANUAL...

  • Page 5: Sprinter 16 Assembly

    1.1 When installing the front wheel with the wrench, pay attention to the gap on either side of the wheel, it should be symmetrical. 1.2 Make sure the locking washer is hooked to the front fork to prevent rotation of the hub in the fork. The wheel should be centered. SPRINTER 16 OWNER’S MANUAL...
  • Page 6 Sprinter 16 Assembly 2. Install the front number plate Remove the bolt attached to the front fork, install the front number plate and secure it using the M6 nut and sup- plied tools. SPRINTER 16 OWNER’S MANUAL...
  • Page 7 Sprinter 16 Assembly 3. Set the brake lever angle, it should sit at 45 ° horizontally. SPRINTER 16 OWNER’S MANUAL...

  • Page 8: Operation

    2.2. Press the power switch button, the battery indicator light will turn on; Press the power switch button again, and the battery indicator light will turn off; 2.3. Use your hand to turn the throttle to control the power output. SPRINTER 16 OWNER’S MANUAL...
  • Page 9 3.2. Holding both sides of the battery, pull it down to remove it from the frame. SPRINTER 16 OWNER’S MANUAL...
  • Page 10 Operation 3.3. To reinstall the battery push it into the frame along the track, pay attention to the direction of the battery. the battery must run along the track to be properly installed SPRINTER 16 OWNER’S MANUAL...
  • Page 11 Operation 3.4. Once the battery is fully installed, lock the key to secure it and close the rubber dust cover to protect the bot- tom of the battery. rear SPRINTER 16 OWNER’S MANUAL...
  • Page 12 Mode 1: The speed limiting line is disconnected, the Sprinter 16 top speed is 11MPH. Mode 2: The speed limiting line is connected, the Sprinter 16 top speed is 6 MPH. The connection/disconnection of this speed change switch requires an adult to perform.
  • Page 13 5.1.2 Disconnect or reconnect the connector, then check to see if the desired speed has been achieved. 5.1.3 Once the desired speed has been achieved, replace the connector into the housing and reinstall the left frame cover using the screws you previously removed. SPRINTER 16 OWNER’S MANUAL...
  • Page 14 Operation Note: Be sure to install the brake and display cables into the slot of the left frame cover SPRINTER 16 OWNER’S MANUAL...

  • Page 15: Operation

    6.11. Please keep a safe distance between the rider and any obstacles. Pay attention to avoiding pedestrians and pay attention to controlling the speed. 6.12 Pay attention to other vehicles where you ride and turn off the power before you get off of the Sprinter16. SPRINTER 16 OWNER’S MANUAL...

  • Page 16: Daily Maintenance

    Daily Maintenance 1. Chain Adjustment: adjust the locknut to adjust the drive chain. Make sure the adjustments are made evenly to the adjusters on both sides of the wheel. SPRINTER 16 OWNER’S MANUAL...
  • Page 17 2. After riding the bike for a period of time, if there is any wheel wobble, tighten the wheel lock nut on either side of the wheel as shown in the pictures below. Lock Nut Lock Nut SPRINTER 16 OWNER’S MANUAL...
  • Page 18 Daily Maintenance 3. Brake adjustment: make large adjustments to the brake cable at the rear brake as shown. large brake cable adjustments SPRINTER 16 OWNER’S MANUAL...
  • Page 19 Loosen the locknut, turn the cable adjuster bolt to make your adjustment, then tighten the locknut when the adjustment is complete. small brake cable adjustments SPRINTER 16 OWNER’S MANUAL...
  • Page 20 4. Charging the battery: open the waterproof cover of the charging port, plug the end of the charger into the charging port and then plug the charger into the wall socket. When disconnecting, first remove the connection at the wall socket, then remove the end of the charger cable from the charging port. SPRINTER 16 OWNER’S MANUAL...
  • Page 21 Daily Maintenance 5. Adjusting the seat height: using the allen wrench, loosen the seat clamp and adjust the seat. DO NOT adjust the seat post above the security line for safety. Security Line SPRINTER 16 OWNER’S MANUAL...
  • Page 22 Recharge the battery every two months if in storage for a long time The tires should be inflated with compressor equipment if the air Tire Pressure Every Month pressure is low (10 PSI Front & Rear) SPRINTER 16 OWNER’S MANUAL...

  • Page 23: Daily Maintenance

    6.1. Do not drain the battery completely every time, please charge the battery when the display indicates the red light, which can increase the life cycle of the battery. 6.2. Please clean the Sprinter 16 regularly, to ensure safe operation by children and also to keep the bike in the best operational condition.

  • Page 24: Warranty

    Electric Balance Bike with the front/rear wheel aloft. Damage caused by negligence, such as operation of the Electric Balance Bike with flat tires, damaged components, improperly adjusted derailler, or damaged electrical components. SPRINTER 16 OWNER’S MANUAL...
  • Page 25 Warranty Damage caused by alterations or modifications not approved by SSR Motorsports, such as use of non-SSR Genuine Parts or Accessories. Damage caused by modifications that would change the original Electric Balance Bike specifications including, without limitation, modifications of any electric motor, electric motor controller, wiring or lighting components.
  • Page 26 Any parts replaced under coverage of this limited warranty become the property of SSR Motorsports. If you should suffer a second failure of the same item on your Electric Balance Bike during the warranty period, we ask that you immediately inform your servicing dealer or SSR Motorsports of that circumstance.
  • Page 27 3. If you request us to do so, SSR Motorsports will assist you by contacting the authorized SSR dealer regarding any inquiry related to service or warranty concerns. We will speak to the Owner, General Manager, Service Manager or Technician to learn all of the relevant facts, before making any decisions.
  • Page 28 RANTY LASTS, SO THE LIMITATIONS MAY NOT APPLY. THIS WARRANTY GIVES YOU SOME SPECIFIC RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY, FROM STATE TO STATE. SSR DOES NOT AUTHORIZE ANY PERSON TO CREATE FOR IT ANY OTHER WARRANTY, OBLIGATION, OR LIABILITY IN CONNECTION WITH THESE PRODUCTS. SPRINTER 16 OWNER’S MANUAL...
