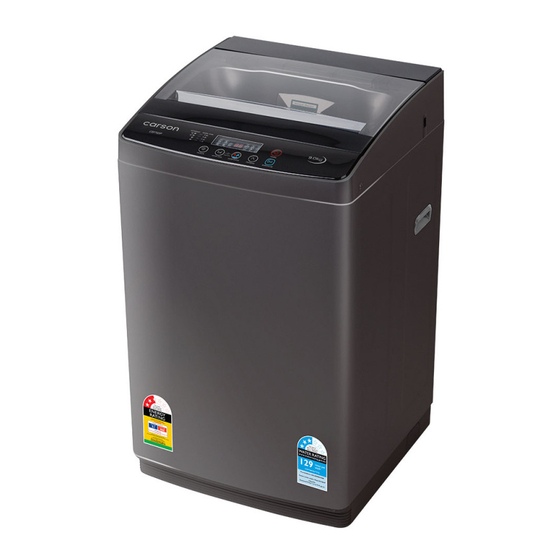

9kg Top Load Washing Machine
User Manual
[Revision 2.0 May 2019]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2019 Carson
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson CST9D3P
Summary of Contents for Carson CST9D3P
-
Page 1: User Manual
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2019 Carson... -
Page 2: Safety
/ collection facilities, only, and far away from windows, doors • For specific equipment safety use and ensure these are connected and used and vents. care, see Equipment Safety. properly. Dust collection can reduce dust-related hazards. E&OE © 2019 Carson... - Page 3 • If the power cord is damaged, have it replaced by the manufacturer or contact a qualified technician. • Do not block the ventilation openings at the base of the washing machines. Do not put the appliance on top of a rug or carpet. E&OE © 2019 Carson...
-
Page 4: Safety Symbols
Wear appropriate Always wait for moving parts injury to fingers, limbs, blood clothing and protective to stop fully before handling etc. Take due care when devices. the product, adjusting, handling and using the maintenance etc. product. E&OE © 2019 Carson... - Page 5 Carry hook to load – do NOT Wear appropriate eye Laser may be in use – do NOT throw or run. protection for welding. Direct look directly at laser or allow exposure to weld arcs may others to. cause permanent eye injury. E&OE © 2019 Carson...
-
Page 6: Table Of Contents
Step 5: Start the Washing Machine ..................... 16 Programs ..............................16 Maintenance ..........................17 Cleaning the Filter in the Inlet Valve ......................17 Cleaning the Lint Filter ..........................17 General Cleaning ............................17 Troubleshooting .......................... 18 Specifications ..........................19 E&OE © 2019 Carson... -
Page 7: Parts Identification
9kg Top Load Washing Machine Parts Identification Accessories E&OE © 2019 Carson... -
Page 8: Assembly And Set-Up
2. Rotate the foot to raise or lower it until it stands firmly on the ground. 3. Lock the foot in position by turning the nut anti-clockwise until it comes up against the bottom of the machine. E&OE © 2019 Carson... -
Page 9: Connecting The Drain Hose
The faucet must be a G3/4" standard screw thread. If not, it is impossible to connect the inlet hose properly. Water supply faucets should be readily accessible so that you can turn them OFF when the washing machine is not being used. E&OE © 2019 Carson... -
Page 10: Installing And Connecting The Inlet Hose
Use Teflon tape when connecting the inlet hoses to the tap connections. 3. Unscrew the lid of the hot water connector, and then connect the hot water inlet hoses to the hot water connector by turning the connecting nut. E&OE © 2019 Carson... -
Page 11: Dismantling The Inlet Hose
• Do not use a damaged cord because it could cause an electrical leakage and fire hazards. • In case the cord is damaged, call your local service company to change it. E&OE © 2019 Carson... -
Page 12: Operation
Start Button to start the machine within 10 minutes after pressing the Power Button. We recommend using Standard Program, Water Supply: Cold & Hot, Water Level: 8 for a normally soiled 9kg load. E&OE © 2019 Carson... -
Page 13: Operating The Washing Machine
6. Add a suitable detergent, according to the 7. Close the lid or the washing machine will not wash load volume, into the detergent box. operate. DO NOT FORCE THE LID TO CLOSE, as the soft close operation will be damaged. E&OE © 2019 Carson... -
Page 14: Step 1: Choose A Program
• Dilute concentrated detergent with three times the amount of water. • If detergent is needed, do not open the wash lid when spinning, otherwise the softener will be prematurely dispensed, and the result will be worse. E&OE © 2019 Carson... -
Page 15: Step 2: Choose A Function
Press the Process button to choose a function you would like. Step 3: Choose the Water Level Press the Water Level button to choose an appropriate water level according to the load quantity and the corresponding indicator light will blink. E&OE © 2019 Carson... -
Page 16: Step 4: Choose Water Supply
• The total operating time may vary according to water volume; tolerance is permitted. • ln case laundry imbalance triggers the safety switch when spinning, the washing machine will automatically release water to adjust the balance. E&OE © 2019 Carson... -
Page 17: Maintenance
General Cleaning • Clean the surface of the washing machine with a soft cloth regularly. • After each wash, clean the inner tub to avoid forming deposits at the bottom. E&OE © 2019 Carson... -
Page 18: Troubleshooting
Otherwise, it is better to contact a qualified technician. • Cut-off the power supply if there is a strange noise, burning smell or smog and contact a qualified technician to perform an inspection on the washing machine. E&OE © 2019 Carson... -
Page 19: Specifications
9kg Top Load Washing Machine Specifications Model CST9D3P Max. Capacity 9.0kg Washer Power 420w Spin Power 420w Motor Rating 180w Spin Speed 740rpm Torque ≥ 1.82 Capacitor 13uf Cabinet Material Inner Tub Material Stainless steel E&OE © 2019 Carson... - Page 20 ©2019 Carson. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
