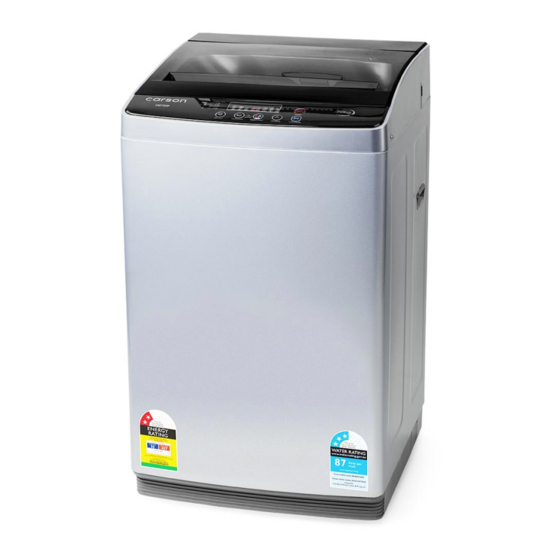

7kg Top Load Washing Machine -
CSF7G3P and CST7D3P
User Manual
[Revision 5.0 May 2019]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2019 Carson
Advertisement
Table of Contents
Related Manuals for Carson CSF7G3P
Summary of Contents for Carson CSF7G3P

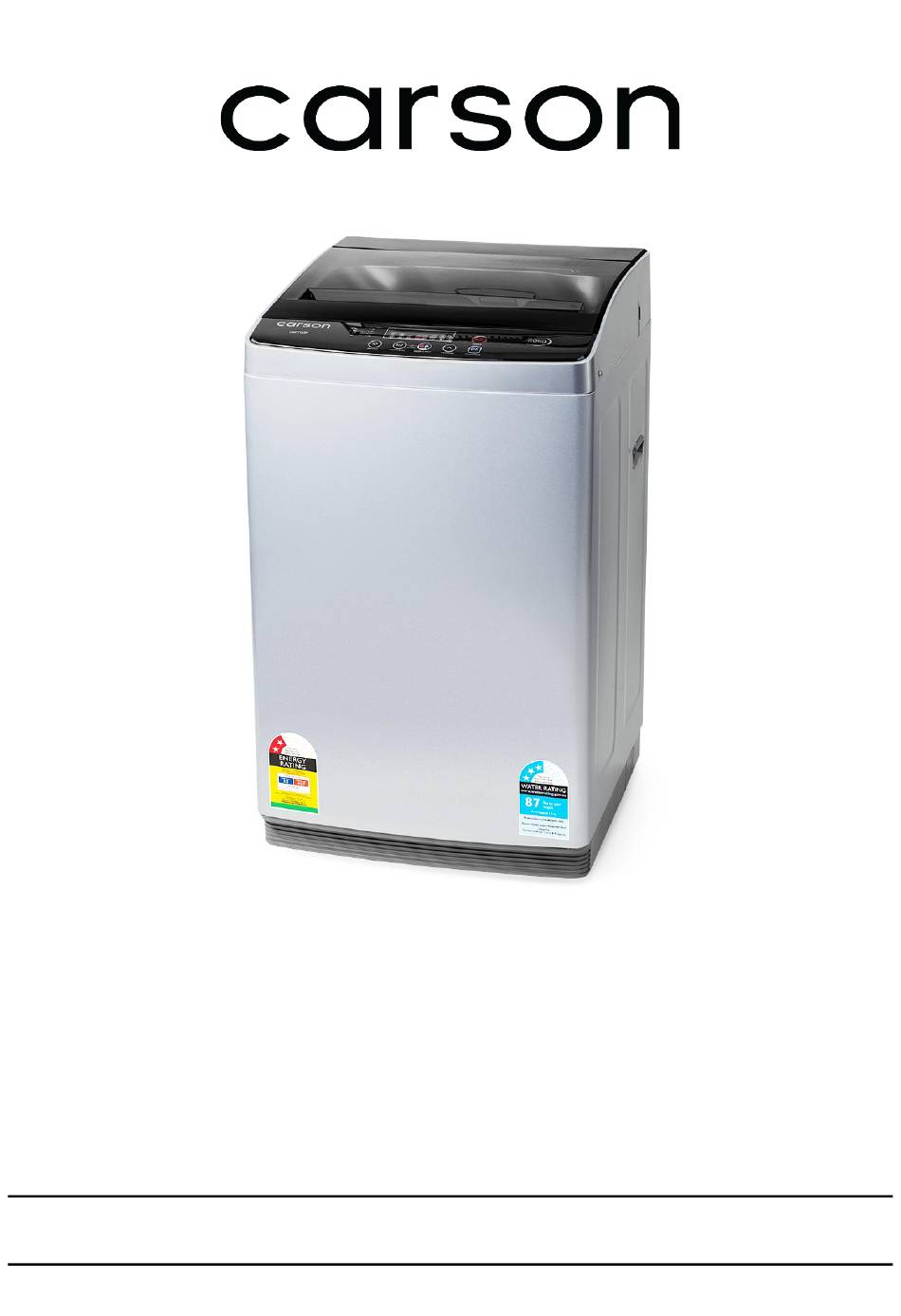

- Page 1 Colours may vary 7kg Top Load Washing Machine - CSF7G3P and CST7D3P User Manual [Revision 5.0 May 2019] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Safety
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:... - Page 3 7kg Top Load Washing Machine - CSF7G3P and CST7D3P General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must have • The equipment must be serviced or cords, power bars, and electrical fittings for...
-
Page 4: Safety Symbols
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them. - Page 5 7kg Top Load Washing Machine - CSF7G3P and CST7D3P "Slam Dunk" Warning Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard Do not use the product in Be aware that the product Be aware that using the product Do NOT attempt "slam dunk"...
-
Page 6: Table Of Contents
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Table of Contents Safety ................................. 2 Safety Symbols ................................4 Parts Identification ............................ 7 Assembly and Set-Up ..........................8 Installation ................................... 8 Unpacking ................................... 8 Levelling the Machine ..............................9 Connecting the Drain Hose ............................9 Water Supply Requirements ............................ -
Page 7: Parts Identification
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Parts Identification Accessories: E&OE © 2019 Carson... -
Page 8: Assembly And Set-Up
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Assembly and Set-Up Installation • Do NOT place the machine on a slanting, uneven or unstable surface. • Place the machine on a solid and level surface to avoid excessive vibration during operation. -
Page 9: Levelling The Machine
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Levelling the Machine • The front feet of the machine are adjustable for height. To adjust, lift the front corners of the machine slightly and rotate the feet as required so the machine is stable and level. If the feet have lock nuts, use the nuts to secure the feet. -
Page 10: Correct Water Supply Taps
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Correct Water Supply Taps The tap mouth should be round, smooth and at least 10mm in length. Attaching Tap Adaptors 1. Detach the hose from the tap adaptor - pull in the bottom part of the locking lever and pull down the hose collar to release the hose. -
Page 11: Connecting Inlet Hoses To The Machine
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Connecting Inlet Hoses to the Machine NOTE: Before installation, check that the rubber washer is in the pipe nut and is not damaged. 1. Screw the pipe nut tightly onto the machine water inlet connector. -
Page 12: Checking Inlet Hose Connections
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Checking Inlet Hose Connections 1. Pull on the hose gently to check that it and the tap adaptor are secure. 2. Slowly open the tap until fully open, checking for leaks. -
Page 13: Control Panel
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Control Panel PROCESS START / PAUSE Press to select the required wash process (soak, Press to start/pause the washing machine. After wash etc). Currently selected process indicators pausing the machine, press again to resume illuminate. -
Page 14: Operation
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Operation Step 1: Prepare the Load and Switch the Machine ON Load the appliance with clothing. Do NOT overload. Add the required amount of washing powder or liquid according to the manufacturer's instructions, then close the machine lid. If using powder, there is a detergent dispensing tray for this purpose. -
Page 15: Step 5: Select Water Temperature
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Step 5: Select Water Temperature Press WATER SUPPLY repeatedly to select the required water temperature. The currently selected temperature setting illuminates on the display - "HOT" for hot water only, "COLD" for cold water only, and "HOT" and "COLD"... -
Page 16: Maintenance
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Maintenance • Clean the body of the machine with a soft, damp cloth if required. Do not use solvents, abrasives or harsh detergents. • Regularly clean the lint filters - at least once per 5 wash cycles. To clean: a. -
Page 17: Troubleshooting
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Troubleshooting The following information may assist in identifying a problem and rectifying it. For procedures that you are not comfortable with or have the tools, knowledge or experience for, or if problems persist after following all suggested actions, contact an authorised service centre or qualified technician. - Page 18 7kg Top Load Washing Machine - CSF7G3P and CST7D3P Error Codes (shown on machine display panel) E0 - Indicates that the tub has been filled with water for over 20 minutes without the wash cycle being started. Open and close the lid. Start the wash cycle.
-
Page 19: Specifications
7kg Top Load Washing Machine - CSF7G3P and CST7D3P Specifications CSF7G3P Colour Platinum Maximum Capacity Rated Capacity Power Source 240V 50Hz Water Protection IPX4 Energy Star Rating 2 stars Water Star Rating 3 stars Washing Machine Type Top load Washing Programs... - Page 20 ©2019 Carson. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
