Permobil 1824645 Manual

8 channel ir receiver

General

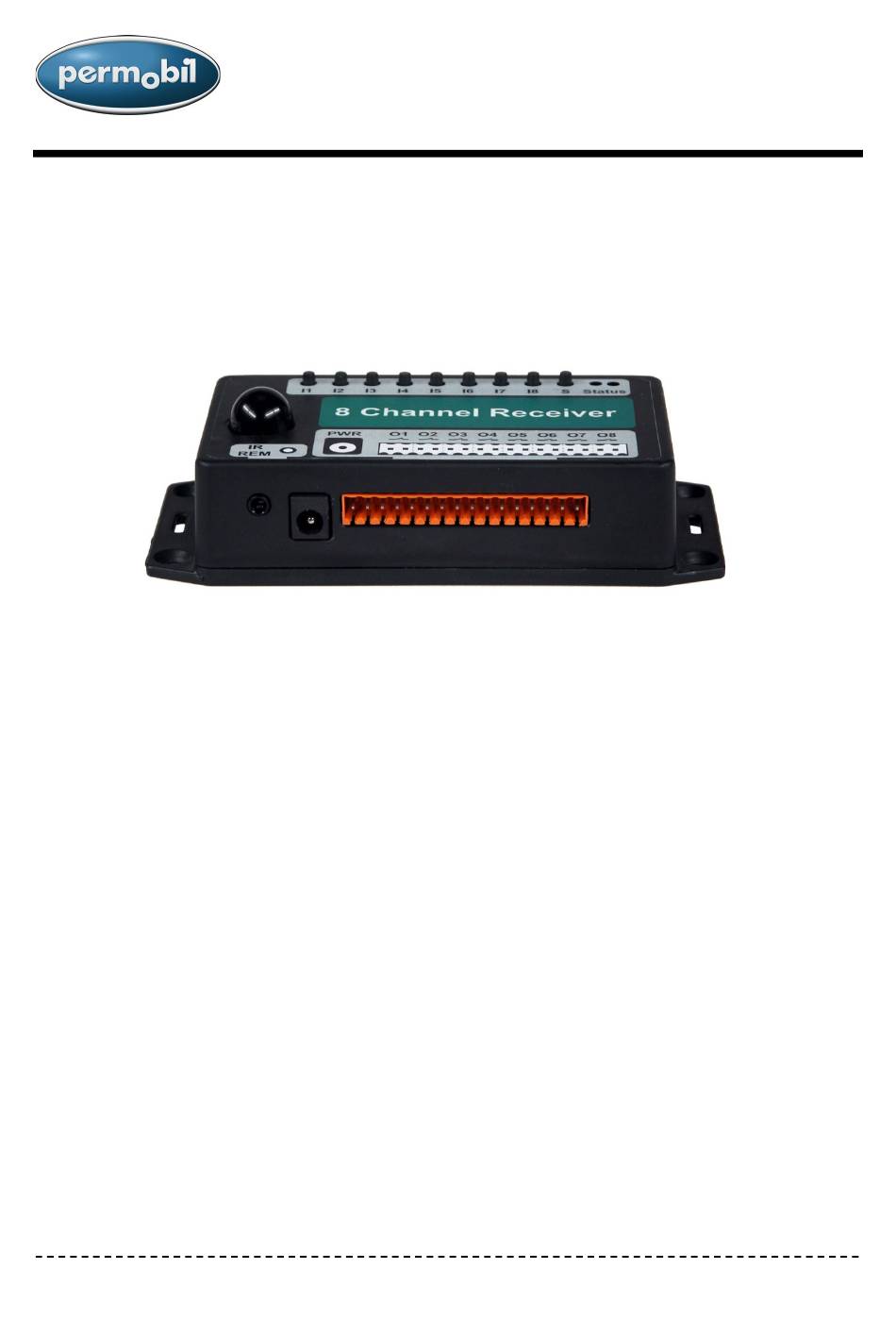

This infrared receiver can be wired into powered devices (such as a door opener) so it can

be operated by sending an infrared signal from an environmental control device.

• This infrared receiver is an eight-channel receiver with eight voltage-free relay

switches.

• The receiver can be programmed with all Permobil infrared codes. Each channel has

a specific address, which can easily be programmed

• The receiver relays can independently be set for bistable (latching - continuous) as

well as monostable (non-latching - temporary) function.

o Monostable - Temporary: the output remains closed as long as the receiver

receives a command (can be compared with a push button).

o Bistable - Continuous: the situation of the output (open/closed) changes each

time a command is received (can be compared with a switch).

• The receiver module is equipped with 8 direct control buttons. This allows switching

a channel without the need of an infra red transmitter. This is very helpful during

installation, testing or access by a third.

Technical manual, 8 Channel IR Receiver

Document Number: 205316-UK-0 Edition 1 2009-11

8 Channel IR Receiver

Spare part no: 1824645

Page: 1/3

Table of Contents

Do you have a question about the 1824645 and is the answer not in the manual?

Page 1 • This infrared receiver is an eight-channel receiver with eight voltage-free relay switches. • The receiver can be programmed with all Permobil infrared codes. Each channel has a specific address, which can easily be programmed • The receiver relays can independently be set for bistable (latching - continuous) as well as monostable (non-latching - temporary) function.
Page 2: Installation Of The Receiver
Installation of the Receiver This infrared receiver needs to be installed in a dry place by a skilled technician who is familiar with installing home automation devices. All electrical connections are done using connectors. This minimizes the installation time and provides a fast switch of the module in case a replacement is necessary. •...
Page 3 Configuration of the Receiver The receiver can be configured in a way that each channel responds to a unique infra red code. At the same time each channel can be set as monostable (non-latched) or bistable (latched) output. How do we enter configuration mode? •...
