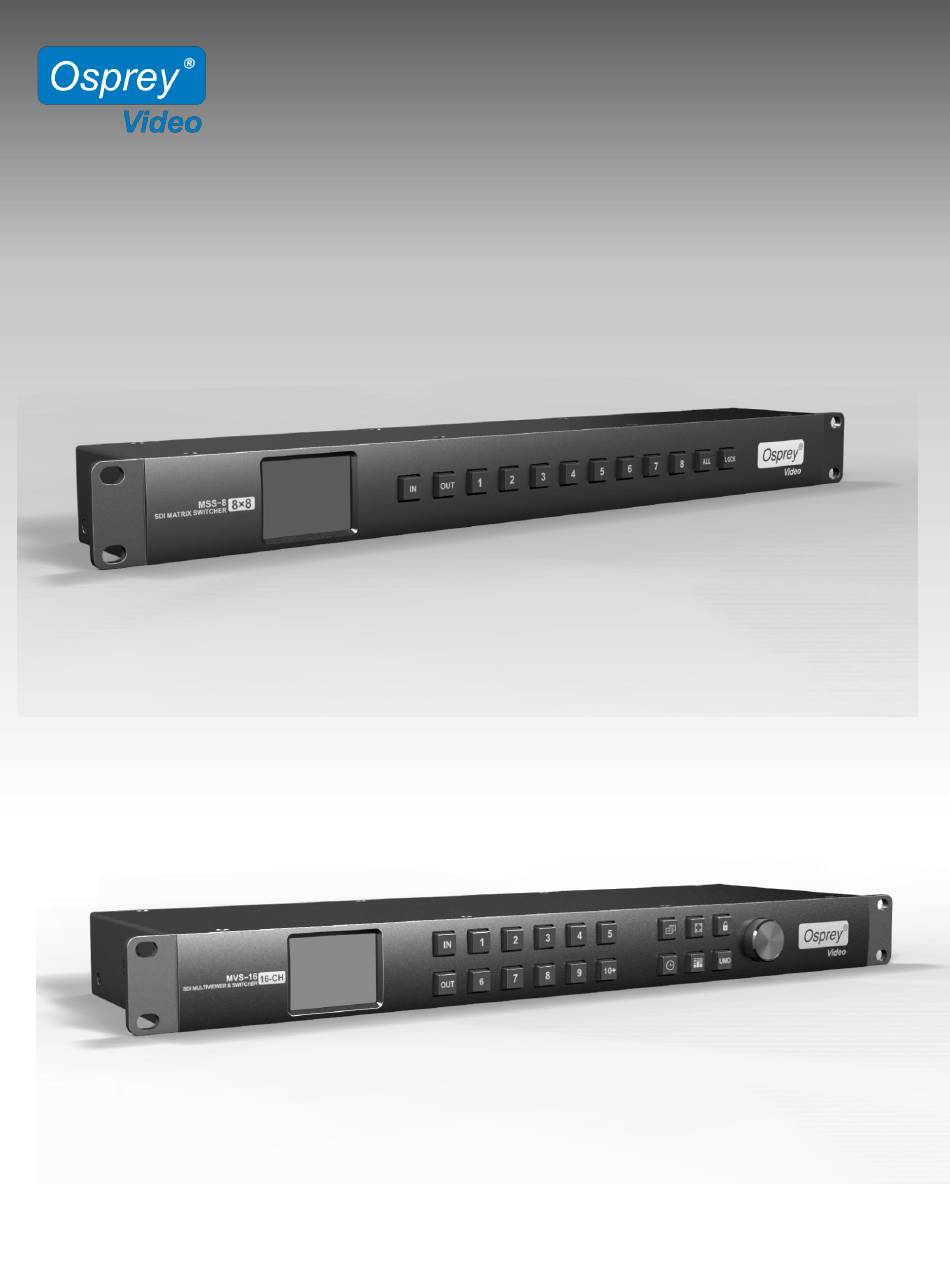

- Page 1 Start Guide MSS-8 and MVS-16 - 8 Channel Matrix Switcher MSS-8 Page 1 - 16 Channel Matrix Switcher and Multi Viewer MVS-16 Page 4 www.ospreyvideo.com...
- Page 2 MSS-8, however for redundancy we recommend both Power Supplies to be used simultaneously. LAN Connection: MSS-8 has been designed to work seamless with any DHCP Server. If no DHCP server is found on the Network the unit will default to IP Address 192.168.1.215. RS232 Connection:...
- Page 3 RACKMOUNT 8x8 MATRIX SWITCHER MSS-8 Manual Keypad Controls Using the Buttons on MSS-8 Front Panel LOCK: Lockout of the Keypad to prevent unwanted I/O changes ALL: Connect one Input to all Outputs simultaneous Example Sequence: IN – 4 – ALL (Input 4 connected to all 8 Outputs)
-
Page 4: Software Controls
RACKMOUNT 8x8 MATRIX SWITCHER MSS-8 Software Controls Using Osprey Control Panel Software SCANNING: Scans the Network for all connected Osprey switchers SETTING: Switch between LAN or Serial Connection LOCK: Lockout of the Unit Keypad to prevent unwanted I/O changes INPUT:... - Page 5 RACKMOUNT 16x16 MATRIX SWITCHER 16 CHANNEL MULTI VEWER MVS-16 Soon to come www.ospreyvideo.com...
