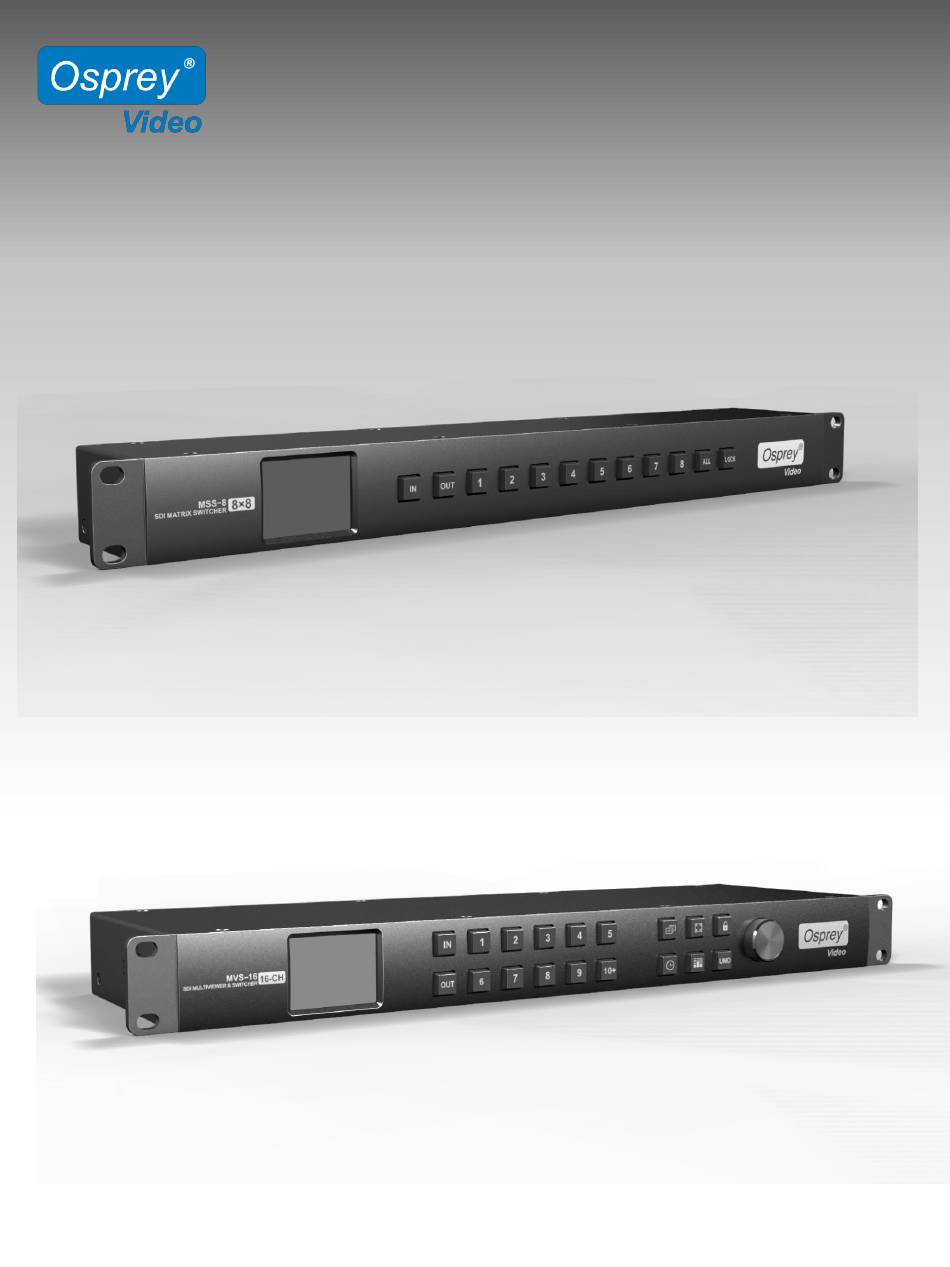

- Page 1 Start Guide MSS-8 and MVS-16 - 8 Channel Matrix Switcher MSS-8 Page 1 - 16 Channel Matrix Switcher and Multi Viewer MVS-16 Page 4 www.ospreyvideo.com...
- Page 2 MSS-8, however for redundancy we recommend both Power Supplies to be used simultaneously. LAN Connection: MSS-8 has been designed to work seamless with any DHCP Server. A Static IP can be assigned using the Software Control Utility. RS232 Connection:...
- Page 3 RACKMOUNT 8x8 MATRIX SWITCHER MSS-8 Manual Keypad Controls Using the Buttons on MSS-8 Front Panel IN/OUT: Make individual Matrix Connections Example Sequence: IN – 2 – OUT – 4 – 6 – 7 (Input 2 connected to Outputs 4, 6 and 7 )
-
Page 4: Software Controls
RACKMOUNT 8x8 MATRIX SWITCHER MSS-8 Software Controls Using Osprey Control Panel Software SCANNING: Scans the Network for all connected Osprey MSS-8 and MVS-16 SETTING: Switch between LAN (Static or DHCP) or Serial Connection LOCK: Lockout of the Unit Keypad to prevent unwanted I/O changes... - Page 5 16 CHANNEL MULTIVIEWER 16x16 MATRIX SWITCHER MVS-16 Initial Setup Power Connections: MVS-16 is supplied with two 12V Wall Power Supplies. One Power Supply is sufficient to power MVS-16, however for redundancy we recommend both Power Supplies to be used simultaneously. LAN Connection: MVS-16 has been designed to work seamless with any DHCP Server.
- Page 6 16 CHANNEL MULTIVIEWER 16x16 MATRIX SWITCHER MVS-16 Manual Keypad Controls Using the Buttons on MVS-16 Front Panel Display to show Device Status and Menu Controls MultiViewer Mode Assigning an Input to a Window. Example: IN – 1 – OUT – 1 – 2 assigns Input 1 to Windows 1 & 2 Switcher Mode Make individual Matrix Connections Example Sequence: IN –...
- Page 7 16 CHANNEL MULTIVIEWER 16x16 MATRIX SWITCHER MVS-16 Front Panel Menu Controls Push Rotary Button on Front Panel to access the System Menu Main Menu Sub Menu Options Description Change the Language between Chinese and Language English/Chinese English LCD brightness 10-100 Set the backlight brightness between 10-100 Set the state of backlight,there are three mode for LCD ON/OFF...
- Page 8 Exit Exit main menu Osprey Control Panel Software SCANNING: Scans the Network for all connected Osprey MSS-8 and MVS-16 SETTING: Switch between LAN (Static or DHCP) or Serial Connection LOCK: Lockout of the Unit Keypad to prevent unwanted I/O changes...
