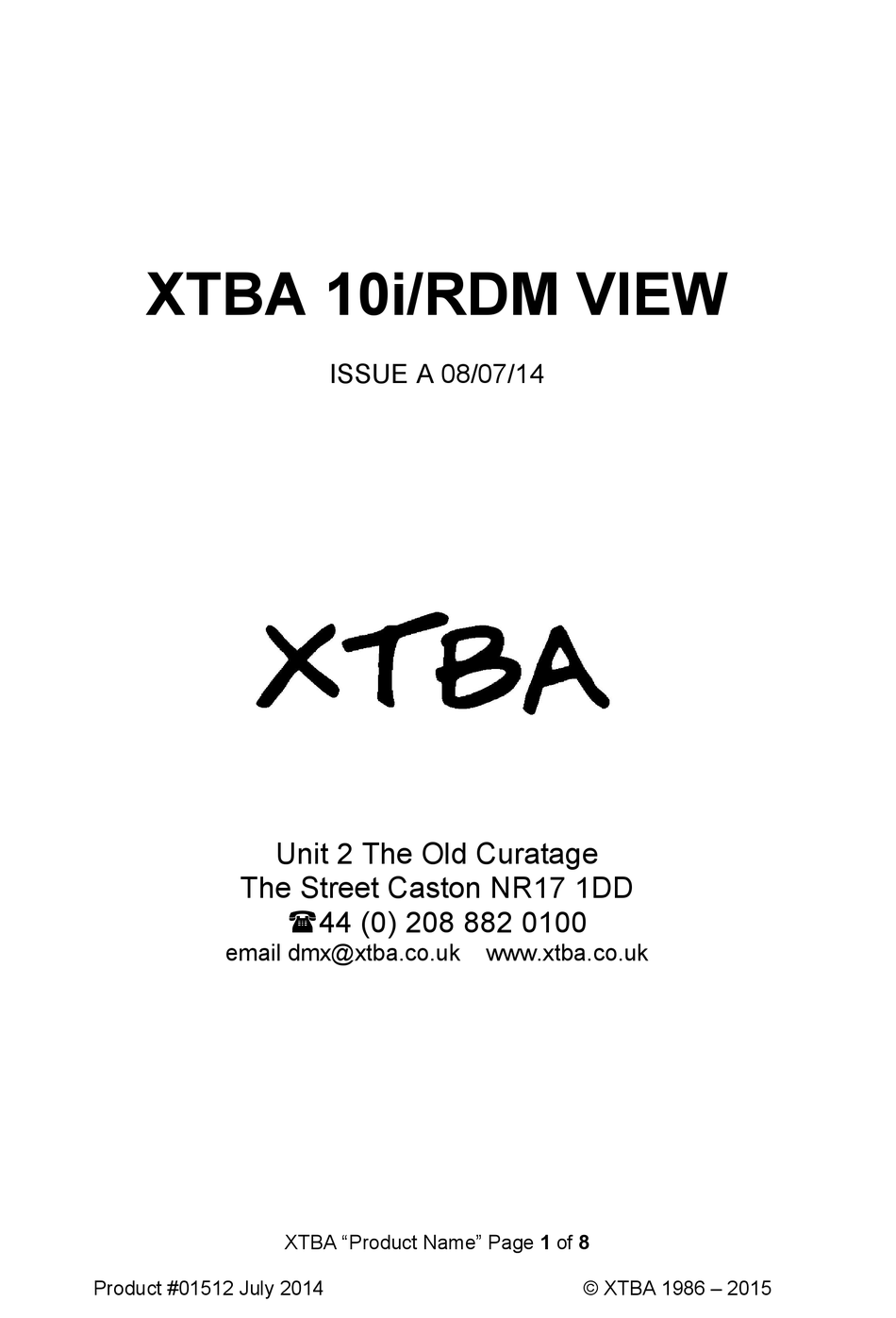

- Page 1 XTBA 10i/RDM VIEW ISSUE A 08/07/14 Unit 2 The Old Curatage The Street Caston NR17 1DD 44 (0) 208 882 0100 email dmx@xtba.co.uk www.xtba.co.uk XTBA “Product Name” Page 1 of 8 Product #01512 July 2014 © XTBA 1986 – 2015...
- Page 2 XTBA 10i/RDM VIEW The XTBA 10i/RDM VIEW is a 2U 19” rack single input, ten output data splitter with loop through, isolation and buffer amplifiers designed for use with lighting/moving light controls using USITT DMX512 (1990/1986) protocol and DMX RDM.
- Page 3 C H N S Y S DMX Break Time in micro seconds (us) Mark after break time in micro seconds (us) Start code in decimal XTBA “Product Name” Page 3 of 8 Product #01512 July 2014 © XTBA 1986 – 2015...
- Page 4 Hopefully one of the three types of DMX will allow the systems to communicate. In Smart Fix all RDM messages are ignored and hold last frame (if selected) temporally turned off XTBA “Product Name” Page 4 of 8 Product #01512 July 2014 © XTBA 1986 – 2015...
- Page 5 If during a RDM request the 10i/RDM detects an overload on any output the red power led will flash and the splitter will isolate that output preventing the problem crashing all RDM traffic. XTBA “Product Name” Page 5 of 8 Product #01512 July 2014 © XTBA 1986 – 2015...
- Page 6 Yellow Led – next to clean port XLR, lit when clean port active. Flashing RDM Yellow led – RDM Identify Smart Splitter 10i/RDM View Supported Functions XTBA’s UID = 2C2A (first two bytes) Supported PIDs Product Detail ID, Device Model Description, Manufacturer Label, Device Label, Factory Defaults, DMX Personality, Personality Description, Reset Device, Comms Status, Display Level.
- Page 7 Personality is set to available the personality can be changed but on next power up the unit will default back to personality 1 – Standard Splitter XTBA “Product Name” Page 7 of 8 Product #01512 July 2014 © XTBA 1986 – 2015...
- Page 8 A spare fuse is provided in the input connector block on the rack unit. 19” RACK MOUNTING The XTBA Smart Splitter 10i/RDM View is provided with a pair of ‘ears’ for fitting into a 19” rack frame. The ears are fitted to the unit by removing the two screws on either side at the front of the unit.
