TechNexion SBC-APL-350 Quick Start Manual

INNOVATORS OF TECHNOLOGY
SBC-APL-350
Quickstart Guide
1

Safety Precautions

Thank you for purchasing a TechNexion SBC series device. This installation guide will be helpful in the installation, wiring and inspection of your TechNexion single board
computer. Before using the product, please read this guide to ensure correct use. You should thoroughly understand all safety precautions before proceeding with the
installation, wiring, and operation. Place this instruction sheet in a safe location for future reference. The following suggestions will help you.
1.1

Storage and Installation

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet,
allow it to dry completely.
• Do not use or store the device in dusty or dirty areas. Its parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.
! • Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device. This product is designed for specific applications and needs to be installed by qualified personnel.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not paint the device. Paint can clog the parts and prevent proper operation.
• Unauthorized modifications or attachments could damage the device and may violate regulations governing radio devices.
1.2

Wiring

•Make sure that the available power source matches the required input power of the device. Failure to observe this caution may result in electric shock or fire.
•Do not power the unit by DC input when you apply power over the PoE (RJ45).
1.3

Maintenance and Inspection

• Do not touch any internal or exposed parts of the device as electrical shock may result.
• Do not open the device while power is on. Otherwise electrical shock may result.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Be sure the ventilation holes are not obstructed during operation. Otherwise malfunction may result due to bad ventilation or overheating.
These suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service
facility for service.
2

Dimensions

113.21
72.21
h<1mm
4.25
138.5
147
Unit : mm
1
10.7
41
1.6
20.4
3

Installation Instructions

This section describes the mounting procedures for SBC series device. The material in the mounting area must provide sufficient strength for support of this single board
computer.
3.1

Surface Mounting

There are 4 mounting holes (M3) on the PCB required for surface mounting. Four M3 screws with at least 8mm head-to-tip length are required to secure this device to
the surface. The distance from the PCB to the surface must be at least 1.6mm.
Front view:
4

External Connectors

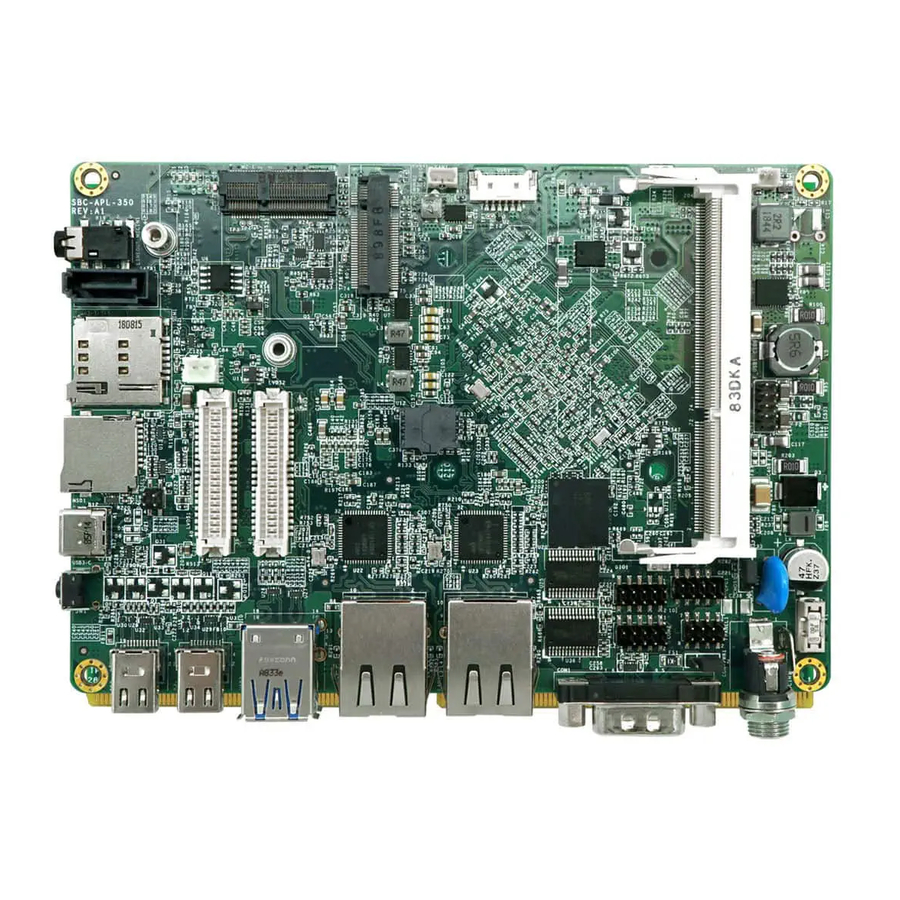

Front view:
8 9 10
1 2 3 4 5 6 7
31 30 28/29
No. Description
1 Power button
2 USB OTG (Type-C) connector
3 microSD card slot
4 Micro-SIM card slot
5 SATA 3.0 connector
6 3.5mm audio jack
7 18/24-bit LVDS jumper
8 SATA Power connector
9 LVDS1 connector
10 LVDS2 connector
11 M.2 KEY-E slot (PCIe + USB 2.0)
12 M.2 KEY-B slot (SATA + USB 2.0)
13 FAN1 header
14 USB (1 port) header
15 SO-DIMM DDR3L slot
16 RTC Battery connector
h<1mm
11 12 13 14 15 16 17
27 26 25 24 23 22 21 20 19 18
No. Description
17 USB (2 ports) header
18 Power Fuse
19 Power Input connector
20 CMOS jumper
21 COM-PWR1 jumper
22 FPANEL1 front panel switch
Serial Port (COM1) DB9 connector
23
24 Serial Port (COM2) header
25 GPIO (DIO1)) header
26 LAN1 RJ45 connector
27 LAN2 RJ45 connector
28 USB Host connector
29 USB Host connector
30 miniDP1 connector
31
miniDP2 connector
