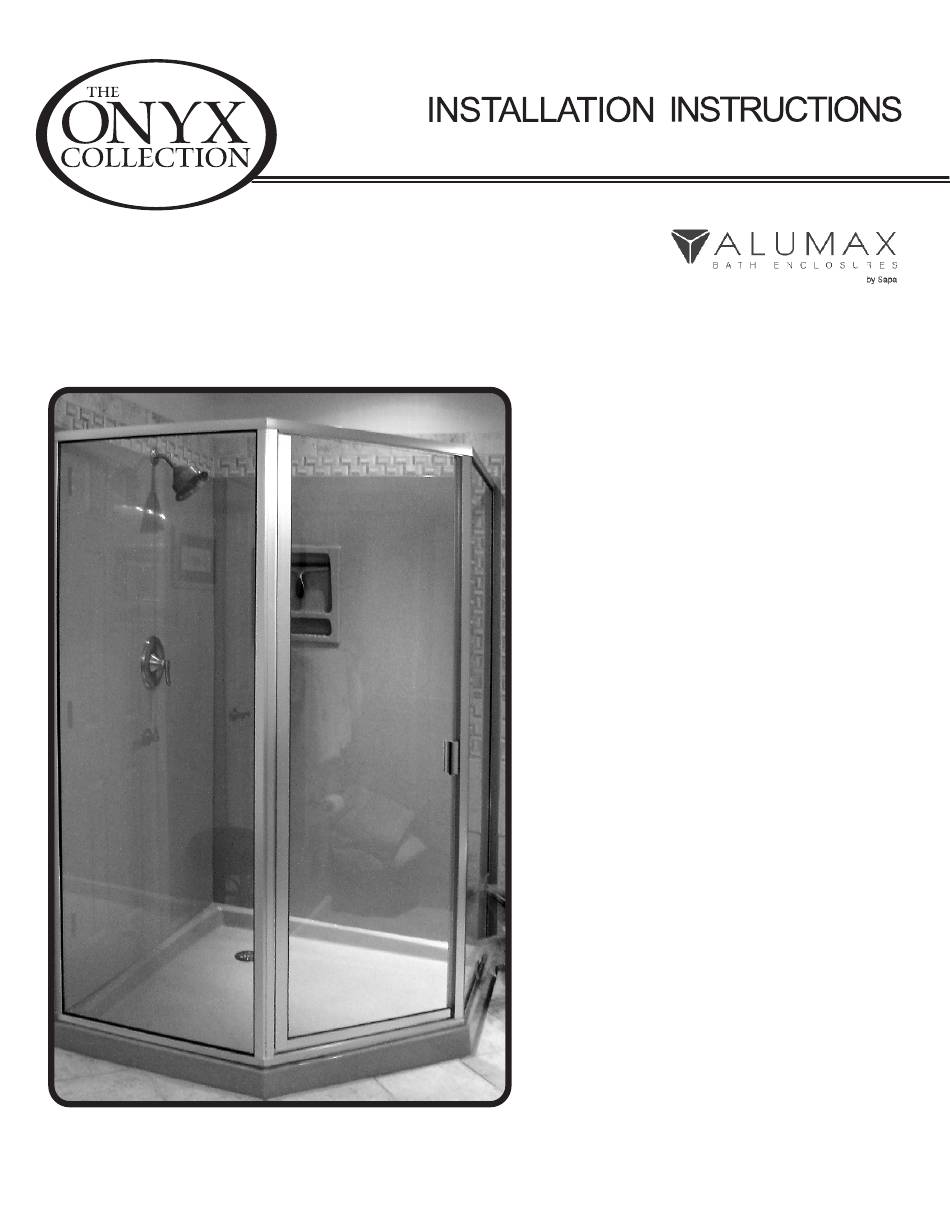

- Page 1 202 Anderson Ave., Belvue, KS 66407 Phone: 800-669-9867 Fax: 800-393-6699 800-643-1514 www.onyxcollection.com www.alumaxshowerdoor.com 394CV Series Neo Angle Shower Enclosure 394CV-0120...
- Page 3 The A 394 S Shower Enclo- LUMAX TALL sure is completely reversible and may be installed pivot-left or pivot-right. For maximum water- proofing, the pivot jamb should always be opposite the shower head. Using the illustration, deter- mine the correct position for the door in your particular S installation.
- Page 4 Place the two wall jambs [E ] into the ends of the curb assembly [A]. Masking tape may be used to hold the curb in place during this operation. Plumb the jambs and mark the hole locations on the wall. Remove all parts and drill the walls for mounting hardware.
- Page 5 MEASURE AT TOP OF Hold the two 135° posts [K ] plumb and care- JAMBS AND POSTS fully measure horizontally from the top of each wall jamb [E ] to the outside edge of the posts. Add GLASS 3/16" to each measurement to find the correspond- PANEL ing dimension on the header assembly [ D ] (from the outside mitered edge to the squared ends) and...
- Page 6 Snap both fillers [P] into the curb and header between the hinge and strike jambs with the raised lips on the exterior side. Center the curb filler between the hinge and strike jamb (use masking tape to hold in position). NOTE: The snap-in fillers should be exactly 7/16"...
- Page 7 Locate the handle [CC] that has no Set Screws. Place a Plastic Bushing in the top handle hole then place a Plastic Washer against the glass. Place the handle without Set Screws against the Plastic Washer and insert the threaded end of the Cone Head Screw through the bushing into the threaded insert in the end of the handle and tighten.
- Page 8 Also calk the interior jamb-to-wall from the curb up to the top of the shower enclosure. We recommend that you wait a few hours before the first shower to allow the Onyx Sealer to "skin over". It will normally fully cure within 24 hours. Page 8 of 8...
