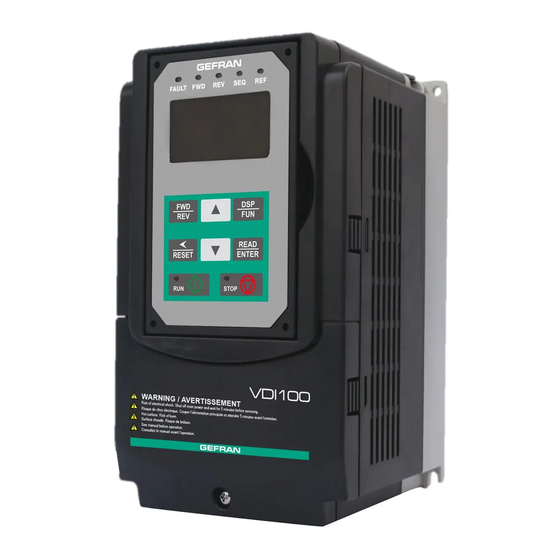

  • Page 1 VDI Modbus Communication Protocol ..Instruction manual...
  • Page 2 Keep the manual in a safe place and available to engineering and installation personnel during the product functioning period. Gefran S.p.A has the right to modify products, data and dimensions without notice. The data can only be used for the product description and they can not be understood as legally stated properties.

  • Page 3: Table Of Contents

    Communication Connection and Data Frame ......................5 1.1.2. Register and Data Format ............................8 1.1.3. Parameter Data ................................14 Italiano ...............................21 2.1. Protocollo di comunicazione MODBUS ....................21 2.1.1. Communication Connection and Data Frame ......................21 2.1.2. Registro e Formato Dati ............................24 2.1.3. Dati parametri .................................30 VDI100 • Instruction manual...
  • Page 4 VDI100 • Instruction manual...

  • Page 5: English

    The length of the command: 4-digit ASCII Code Data length Data length LRC Check Hi LRC Check Code: 2-digit ASCII Code LRC Check Lo END Hi End Byte: END Hi=CR(0DH), END Li = LF(0AH) END Lo VDI100 • Instruction manual...
  • Page 6 (5) Repeat Steps (3) and (4) until 8 shifts been performed. When this is done, a complete 8-bit byte will be processed. (6) Repeat Steps (2) through (5) for next 8-bit byte of the message, Continue doing this until all bytes have been processed. The final content in the CRC register is the CRC value. When sending the CRC value, the Low-order byte should be sent firstly, then the High-order byte. For example, CRC value: 1241 Hex, the high-order byte should be set to 41hex and low-order byte 12hex. VDI100 • Instruction manual...
  • Page 7 During a communication error the drive will response with an Exception Code and send a message back to the main system consisting of a Function Code that is “ANDED (and 80h)” with 80 Hex. Exception code Content Function code error Register number error DATA setting error Register number is over 32 VDI100 • Instruction manual...

  • Page 8: Register And Data Format

    1 :“ON” Frequency Detection 1 1 :“ON” Frequency Detection 2 1 :“ON” Under Voltage 1 :“ON” Baseblock 1 :“ON” Freq Ref. not from Comm. 1 :“ON” Seq. not from Comm. 1 :“ON” Over Torque 1 :“ON” VDI100 • Instruction manual...
  • Page 9 Terminal S5 Terminal S6 Terminal S7 Terminal S8 2522H Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved 2523H Frequency command (0.01Hz) 2524H Output frequency (0.01Hz) 2525H Reserved 2526H DC voltage command (0.1V) 2527H Output current (0.1A) VDI100 • Instruction manual...
  • Page 10 VDI100/BDI50 Check Note: Write in zero for Not used BIT, do not write in data for the reserved register. * If the maximum output frequency of motor is over 300HZ,the frequency resolution is changed to 0.1Hz VDI100 • Instruction manual...
  • Page 11 Check the communication between the master and the follower (inverter). The data used can be arbitrary. ASCII Mode Command Message Response Message (Normal) Response Message (Error) Node Address Node Address Node Address Function Function Function Test Code Exception code Test Code LRC CHECK DATA DATA LRC CHECK LRC CHECK VDI100 • Instruction manual...
  • Page 12 Exception code Start No Start No High CRC-16 High High DATA DATA High High CRC-16 CRC-16 Write Multiple Holding Register [10H] Write multiple holding registers. The address of the first holding register is specified in the message. Example: Write a 60.00Hz frequency command to node address 1 and enable FWD run command. VDI100 • Instruction manual...
  • Page 13 Exception code Starting Starting Register Register High CRC-16 High High Number of Number of Registers Registers Number of Bytes* High CRC-16 High DATA 1 High DATA 2 High CRC-16 * Data amount is register amount x 2 VDI100 • Instruction manual...

  • Page 14: Parameter Data

    2 – 09 0209H 3 – 09 0309H 4 – 09 0409H 2 – 10 020AH 3 – 10 030AH 4 – 10 040AH 2 – 11 020BH 3 – 11 030BH 4 – 11 040BH VDI100 • Instruction manual...
  • Page 15 6 – 20 0614H 5 – 21 0515H 6 – 21 0615H 5 – 22 0516H 6 – 22 0616H 5 – 23 0517H 6 – 23 0617H 5 – 24 0518H 6 – 24 0618H VDI100 • Instruction manual...
  • Page 16 Group 10 Group 11 9– 00 0900H 10– 00 0A00H 11– 00 0B00H 9 – 01 0901H 10 – 01 0A01H 11 – 01 0B01H 9 – 02 0902H 10 – 02 0A02H 11 – 02 0B02H VDI100 • Instruction manual...
  • Page 17 0C2CH 11 – 54 0B36H 12 – 10 0C0AH 12– 45 0C2DH 11 – 55 0B37H 12 – 11 0C0BH 12 – 46 0C2EH 11 – 56 0B38H 12 – 12 0C0CH 12 – 47 0C2FH VDI100 • Instruction manual...
  • Page 18 14 – 24 0E18H 14 – 25 0E19H 14 – 26 0E1AH 14 – 27 0E1BH 14 – 28 0E1CH 14 – 29 0E1DH 14 – 30 0E1EH 14 – 31 0E1FH 14 – 32 0E20H VDI100 • Instruction manual...
  • Page 19 19 – 06 1306H 17 – 07 1107H 19– 07 1307H 17 – 08 1108H 17– 09 1109H 17 – 10 110AH 17 – 11 110BH 17 – 12 110CH 17 – 13 110DH 17 – 14 110EH VDI100 • Instruction manual...
  • Page 20 20 – 30 141EH 21 – 30 151EH 20 – 31 141FH 21 – 31 151FH 20 – 32 1420H 21 – 32 1520H 20 – 33 1421H 20 – 34 1422H 20 – 35 1423H VDI100 • Instruction manual...

  • Page 21: Italiano

    Communication Connection and Data Frame La comunicazione di VDI100 può essere controllata mediante PC o altri regolatori, tramite RS485 o RS232, con il protocollo Modbus in modalità RTU e il protocollo Modbus in modalità ASCII e la lunghezza del frame massima è...
  • Page 22 CRC. Quando viene trasmesso il valore CRC, dovrebbe essere trasmesso prima il byte di ordine basso e poi il byte di ordine alto. Per esempio, valore CRC: 124 esadecimale, il byte di ordine alto dovrebbe essere impostato su 41 esadecimale e il byte di ordine basso su 12 esadecimale. VDI100 • Instruction manual...
  • Page 23 Exception code ‘1’ ‘2’ LRC Check ‘8’ ‘CR’ ‘LF’ Quando si verifica un errore di comunicazione il drive trasmette un Exception Code e ritorna al sistema di con- trollo principale il Function Code “ANDED (and 80h)” con 80 Hex. Codice eccezione Contenuto Errore codice funzione Errore numero registro Errore impostazione DATI Numero registro supera 32 VDI100 • Instruction manual...

  • Page 24: Registro E Formato Dati

    Set Frequency Agree 1 :“ON” Rilevazione frequenza 1 1 :“ON” Rilevazione frequenza 2 1 :“ON” Sottotensione 1 :“ON” Baseblock 1 :“ON” Freq Ref. not from Comm. 1 :“ON” Seq. not from Comm. 1 :“ON” Coppia eccessiva 1 :“ON” VDI100 • Instruction manual...
  • Page 25 Morsetto S5 Morsetto S6 Morsetto S7 Morsetto S8 2522H Riservato Riservato Riservato Riservato Riservato Riservato Riservato Riservato 2523H Comando frequenza (0,01Hz) 2524H Frequenza d’uscita (0,01Hz) 2525H Riservato 2526H Comando tensione DC (0,1V) 2527H Corrente in uscita (0,1A) VDI100 • Instruction manual...
  • Page 26 Riservato 252FH Controllo VDI100/BDI50 Nota: immettere zero per un BIT non utilizzato, non immettere dati per il registro riservato. ** Se la frequenza di uscita del motore supera i 300Hz, la risoluzione di frequenza diventa 0,1Hz VDI100 • Instruction manual...
  • Page 27 Controllare la comunicazione fra il master e lo slave. I dati possono essere valori arbitrari. ASCII Mode Messaggio comando Messaggio risposta (normale) Messaggio risposta (errore) Node Address Node Address Node Address Function Function Function Test Code Exception code Test Code LRC CHECK DATA DATA LRC CHECK LRC CHECK VDI100 • Instruction manual...
  • Page 28 Start No Start No High CRC-16 High High DATA DATA High High CRC-16 CRC-16 Scrittura registri di attesa multipli [10H] Scrittura registri di attesa multipli. L’indirizzo del primo registro di attesa è specificato nel protocollo. Esempio: scrittura comando frequenza di 60.00Hz al node address 1 e abilitazione comando FWD run. VDI100 • Instruction manual...
  • Page 29 Register Register High CRC-16 High High Number of Number of Registers Registers Number of Bytes* High CRC-16 High DATA 1 High DATA 2 High CRC-16 *Il numero di byte corrisponde alla quantità di registrI x 2 VDI100 • Instruction manual...

  • Page 30: Dati Parametri

    2 – 09 0209H 3 – 09 0309H 4 – 09 0409H 2 – 10 020AH 3 – 10 030AH 4 – 10 040AH 2 – 11 020BH 3 – 11 030BH 4 – 11 040BH VDI100 • Instruction manual...
  • Page 31 6 – 20 0614H 5 – 21 0515H 6 – 21 0615H 5 – 22 0516H 6 – 22 0616H 5 – 23 0517H 6 – 23 0617H 5 – 24 0518H 6 – 24 0618H VDI100 • Instruction manual...
  • Page 32 Gruppo 10 Gruppo 11 9– 00 0900H 10– 00 0A00H 11– 00 0B00H 9 – 01 0901H 10 – 01 0A01H 11 – 01 0B01H 9 – 02 0902H 10 – 02 0A02H 11 – 02 0B02H VDI100 • Instruction manual...
  • Page 33 0C2CH 11 – 54 0B36H 12 – 10 0C0AH 12– 45 0C2DH 11 – 55 0B37H 12 – 11 0C0BH 12 – 46 0C2EH 11 – 56 0B38H 12 – 12 0C0CH 12 – 47 0C2FH VDI100 • Instruction manual...
  • Page 34 14 – 24 0E18H 14 – 25 0E19H 14 – 26 0E1AH 14 – 27 0E1BH 14 – 28 0E1CH 14 – 29 0E1DH 14 – 30 0E1EH 14 – 31 0E1FH 14 – 32 0E20H VDI100 • Instruction manual...
  • Page 35 19 – 06 1306H 17 – 07 1107H 19– 07 1307H 17 – 08 1108H 17– 09 1109H 17 – 10 110AH 17 – 11 110BH 17 – 12 110CH 17 – 13 110DH 17 – 14 110EH VDI100 • Instruction manual...
  • Page 36 20 – 30 141EH 21 – 30 151EH 20 – 31 141FH 21 – 31 151FH 20 – 32 1420H 21 – 32 1520H 20 – 33 1421H 20 – 34 1422H 20 – 35 1423H VDI100 • Instruction manual...
