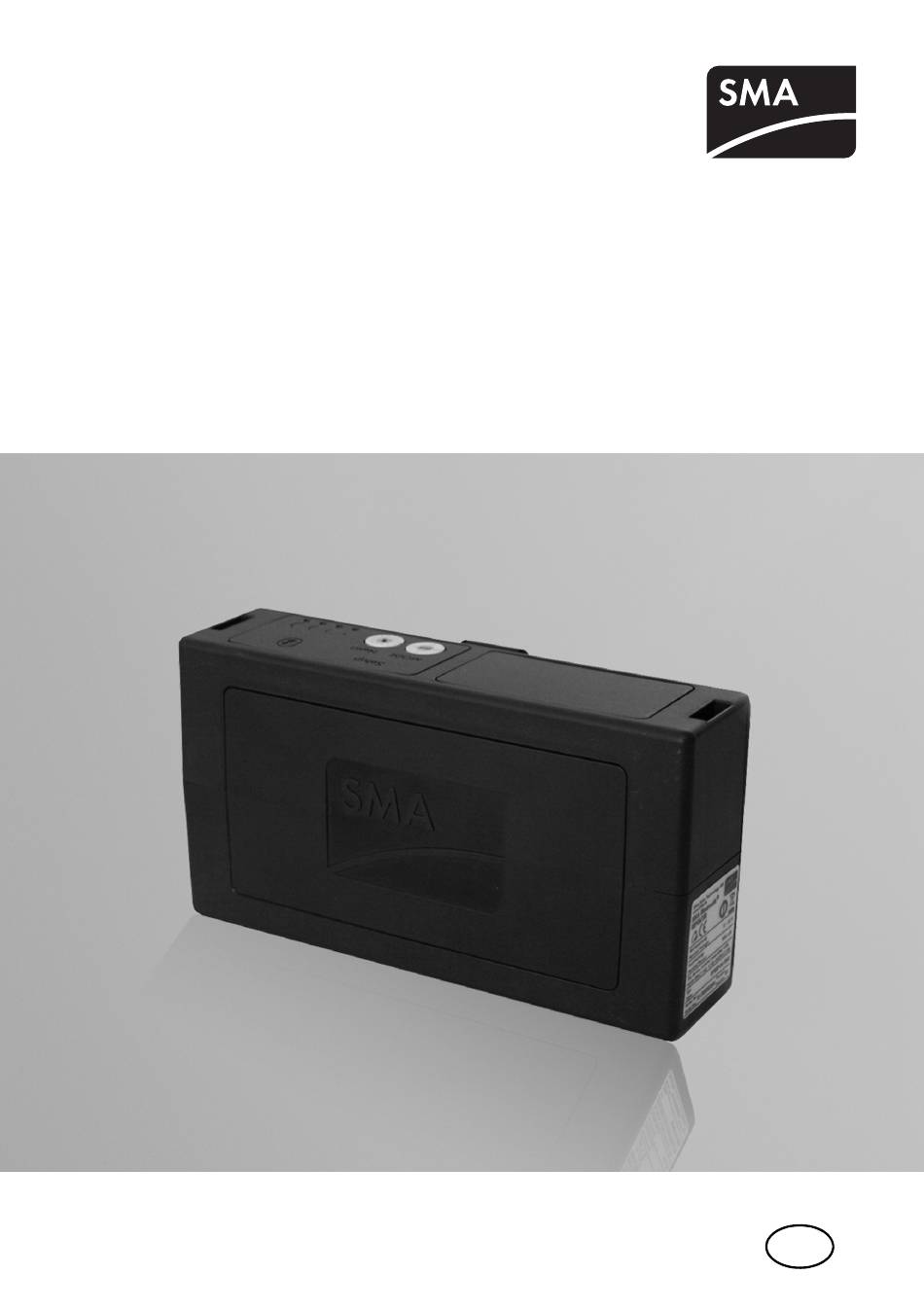

- Page 1 Accessory ® SMA BLUETOOTH REPEATER Installation Guide BTREPIN-IUS091910 | 98-0012410 | Version 1.0...
- Page 3 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SMA Solar Technology AG is under license. Other trademarks and trade names are those of their respective owners.
-
Page 4: Important Safety Instructions
SMA Bluetooth Repeater. To reduce the risk of personal injury and to ensure the safe installation and operation of the SMA Bluetooth Repeater, you must carefully read and follow all instructions, cautions and warnings in this manual. - Page 5 For warranty coverage, or if you have questions about the Sunny SensorBox warranty, contact SMA America at the address, telephone number or Web site listed on page 3 (to send E-mail, see the Contact section of the SMA America Web site).
- Page 6 SMA Solar Technology AG BTREPIN-IUS091910 Installation Guide...
-
Page 7: Table Of Contents
Packing List ........12 SMA Bluetooth Repeater identification....12 Mounting. - Page 8 Dismantling the SMA Bluetooth Repeater....22 Packing the SMA Bluetooth Repeater....23 Disposing of the SMA Bluetooth Repeater .
-
Page 9: About This Manual
The qualified personnel possess knowledge about the device and are aware of the dangers involved in installing electrical systems. 1.3 Additional Information You can download additional information about SMA Bluetooth Wireless Technology from the download area at www.SMA-America.com. Installation Guide... -
Page 10: Safety
The SMA Bluetooth Repeater uses Bluetooth Class 1 and has a maximum range in an open field of up to 330 ft. The SMA Bluetooth Repeater is compatible with all Bluetooth Devices made by SMA Solar Technology. -
Page 11: Safety Instructions
SMA Solar Technology AG Safety 2.2 Safety Instructions Bluetooth Possible communication faults via wireless technology. Certain ambient conditions can reduce the connection quality and data transmission speed between Bluetooth devices. • Install the Bluetooth device with a clearance of at least 4 ft. to the following devices: –... -
Page 12: Unpacking
The packing list represented here is dependent upon the order option. A 1 Plug-in power supply with country adapters Bluetooth 3.2 SMA Repeater identification You can identify the SMA Bluetooth Repeater from the type label. The type label is on the right side of the device. BTREPIN-IUS091910 Installation Guide... -
Page 13: Mounting
– Other devices that use the 2.4 GHz frequency band • The SMA Bluetooth Repeater is only suitable for the interior. • The SMA Bluetooth Repeater requires a power supply (see chapter.5 "Electrical Connection" (page 17)) • The maximum cable length for the power supply may not exceed 33 ft. -
Page 14: Mounting The Sma Bluetooth Repeater On The Wall
4.2 Mounting the SMA Repeater on the wall. Mounting accessories provided A 1 Bracket (Can be found on the back of the SMA Bluetooth Repeater when delivered) 1 Screw C 1 Screw anchor 1. Release the bracket on the backside of the SMA Bluetooth Repeater 2. - Page 15 8. Push the SMA Bluetooth Repeater from the top and onto the bracket. ☑ The SMA Bluetooth Repeater has been mounted. Detachment of the SMA Bluetooth Repeater from the wall is described in section 8.1 "Dismantling the SMA Bluetooth Repeater" (page 22). Installation Guide...
-
Page 16: Mounting The Sma Bluetooth Repeater On The Din Rail
Keep upward pressure on the SMA Bluetooth Repeater during the entire mounting process. 3. Hook the lower rail of the SMA Bluetooth Repeater onto the lower edge of the DIN rail. 4. Push the SMA Bluetooth Repeater onto the DIN Rail and push up and hold. -
Page 17: Electrical Connection
Electrical Connection 5 Electrical Connection ATTENTION! Dismounting of the SMA Bluetooth Repeater from the wall bracket due to careless pulling on the cable. Damage to the SMA Bluetooth Repeater or the wall bracket. • Hold the SMA Bluetooth Repeater in place when inserting or removing cables or plugs. - Page 18 The "RDY" LED is permanently on (green). Supply voltage is ok. The device is in operation. The LED "RDY" is out or is blinking. See section 9.1.1 "Power supply (RDY LED)" (page 24). ☑ The SMA Bluetooth Repeater is connected to the power supply. BTREPIN-IUS091910 Installation Guide...
-
Page 19: Settings
6.1 Setting the mode The "MODE" rotary switch serves for the setting of various modes. The rotary switch must always be set to "0" position (preset ex works). Other positions are not permitted and are intended for the SMA Service only. -
Page 20: Switching Bluetooth Off
Settings SMA Solar Technology AG Bluetooth 6.2.1 Switching If you would like to switch Bluetooth off for test purposes, proceed as follows: 1. Turn the arrow of the "NetID" rotary switch to position "0" using a screwdriver (2.5 mm). ☑ The last three Bluetooth LEDs are blinking (yellow). Bluetooth is switched off on this device. The position of the LED is covered in chapter 9.1 "LED Overview"... -
Page 21: Maintenance And Care
SMA Solar Technology AG Maintenance and Care 7 Maintenance and Care 7.1 Maintenance Conduct regular visual inspections of the SMA Bluetooth Repeater to check for visible external damage or dirt. 7.2 Care ATTENTION! Penetration of water during cleaning of the SMA Bluetooth Repeater. -
Page 22: Decommissioning
☑ The SMA Bluetooth Repeater is not working. Top hat rail 1. To release, use a screwdriver to press towards the wall on the clip on the bracket under the SMA Bluetooth Repeater. 2. Push the bracket upward with the screwdriver. -
Page 23: Packing The Sma Bluetooth Repeater
8.3 Disposing of the SMA Repeater Dispose of the SMA Bluetooth Repeater at the end of its service life in accordance with current disposal regulations for electronic waste that apply at the installation site, or alternatively, send it back to SMA Solar Technology with shipping paid by sender and labeled "FOR DISPOSAL ". -
Page 24: Troubleshooting
Supply voltage is Use only the plug-in power supply intended as an borderline. accessory for the SMA Bluetooth Repeater (12 V, min. 100 mA). The device is in operation. No supply voltage Check that the socket has power (e.g. plug a... -
Page 25: Connection-Quality (Bluetooth Leds)
SMA Solar Technology AG Troubleshooting Bluetooth 9.1.2 Connection-quality ( LEDs) The SMA Bluetooth Repeater can only display the connection quality, if it is integrated into an existing Bluetooth network. The Bluetooth network is only established by master devices (communication product). Bluetooth LEDs... -
Page 26: Technical Data
Technical Data SMA Solar Technology AG 10 Technical Data Communication Communication interface Bluetooth Connections Power supply jack plug Max. number of devices Bluetooth Max. communication range Bluetooth outdoors up to 330 ft. Power supply Power supply Plug-in power supply (AC) Input voltage typically 12 - 24 V AC ±... -
Page 27: Fcc Compliance Information
• Consult the dealer or an experienced radio/TV technician for help. • The user is cautioned that changes or modifications not expressly approved by SMA America, Inc. could void the user’s authority to operate this equipment. Contact SMA America for more information. -
Page 28: Accessories
Accessories SMA Solar Technology AG 11 Accessories 11.1 Plug-in power supply Order number: PWRSUPPLY The plug-in power supply with country adaptors serves as power supply to the SMA Bluetooth Repeater via a wall plug. BTREPIN-IUS091910 Installation Guide... -
Page 29: Contact
SMA Solar Technology AG Contact 12 Contact If you have technical problems concerning our products, contact the SMA Serviceline. We need the following information in order to provide you with the necessary assistance: • Inverter serial number and type • Serial number and firmware version of the communication device •... - Page 30 Contact SMA Solar Technology AG BTREPIN-IUS091910 Installation Guide...
- Page 31 SMA Solar Technology AG Installation Guide BTREPIN-IUS091910...
