VON DUPRIN

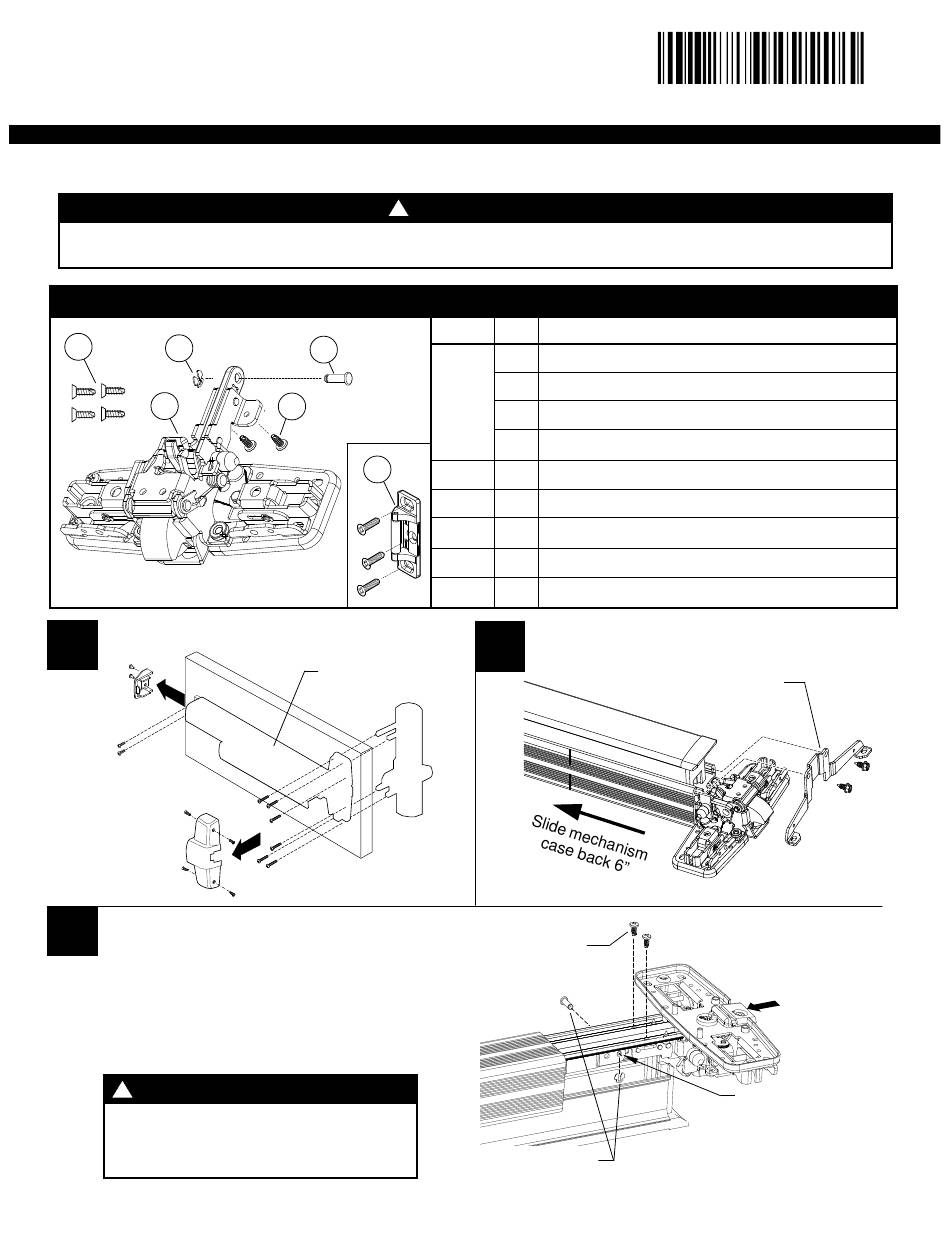

Installation Instructions
XP98/99 Series Center Case Replacement Kit Less Cover
This is a center case replacement kit for existing XP98/99 devices only. A different kit is required for retrofitting an XP98/99 center case
onto a standard 98/99 Rim device. That kit includes the XP98/99 center case plus additional required parts which this kit does not have.
A
B
D
Remove exit device from door.
1
3
Replace center case.
A. Remove two center case mounting screws.
B. Remove retaining ring and pin.
C. Remove old XP98/99 center case.
D. Attach new center case with new pin,
retaining ring and screws.
WARNING
!
New retaining ring and pin must be
installed securely. If pin comes out,
door will not open properly.
Continue with step 4 on other side of sheet
®
CAUTION
!
PARTS INCLUDED IN KIT
Item # QTY Description
C
A
E
F
B
C
D
E
F
Exit device
Trim
#8-18 x 3/8" Center Case Cover Screws (Bronze)
4
#8-18 x 3/8" Center Case Cover Screws (Stainless)
4
#8-18 x 3/8" Center Case Cover Screws (Brass)
4
#8-18 x 3/8" Center Case Cover Screws (Dark Bronze)
4
1
Retaining Ring
Control Link Pin
1
Center case assembly
1
#8-32 x 3/8" Mounting Screws
2
909 Strike Kit
1
Slide mechanism case back 6".
2
Remove two screws
Two new
mounting screws
New retaining ring
and pin
911007-00
and bracket
New XP
center case
Pin must go in front
hole as shown
Advertisement
Table of Contents
Related Manuals for Ingersoll-Rand Von Duprin XP98 Series
Summary of Contents for Ingersoll-Rand Von Duprin XP98 Series
- Page 1 VON DUPRIN ® Installation Instructions 911007-00 XP98/99 Series Center Case Replacement Kit Less Cover CAUTION This is a center case replacement kit for existing XP98/99 devices only. A different kit is required for retrofitting an XP98/99 center case onto a standard 98/99 Rim device. That kit includes the XP98/99 center case plus additional required parts which this kit does not have. PARTS INCLUDED IN KIT Item # QTY Description #8-18 x 3/8”...
- Page 2 IMPORTANT! Install new strike using existing strike holes. Verify gap between latch bolt and strike and adjust strike as needed. 909 Strike Strike MUST have some gap Strike Body (against door) (no more than 3/16”) IMPORTANT! When properly adjusted, secure strike with additional screw.
