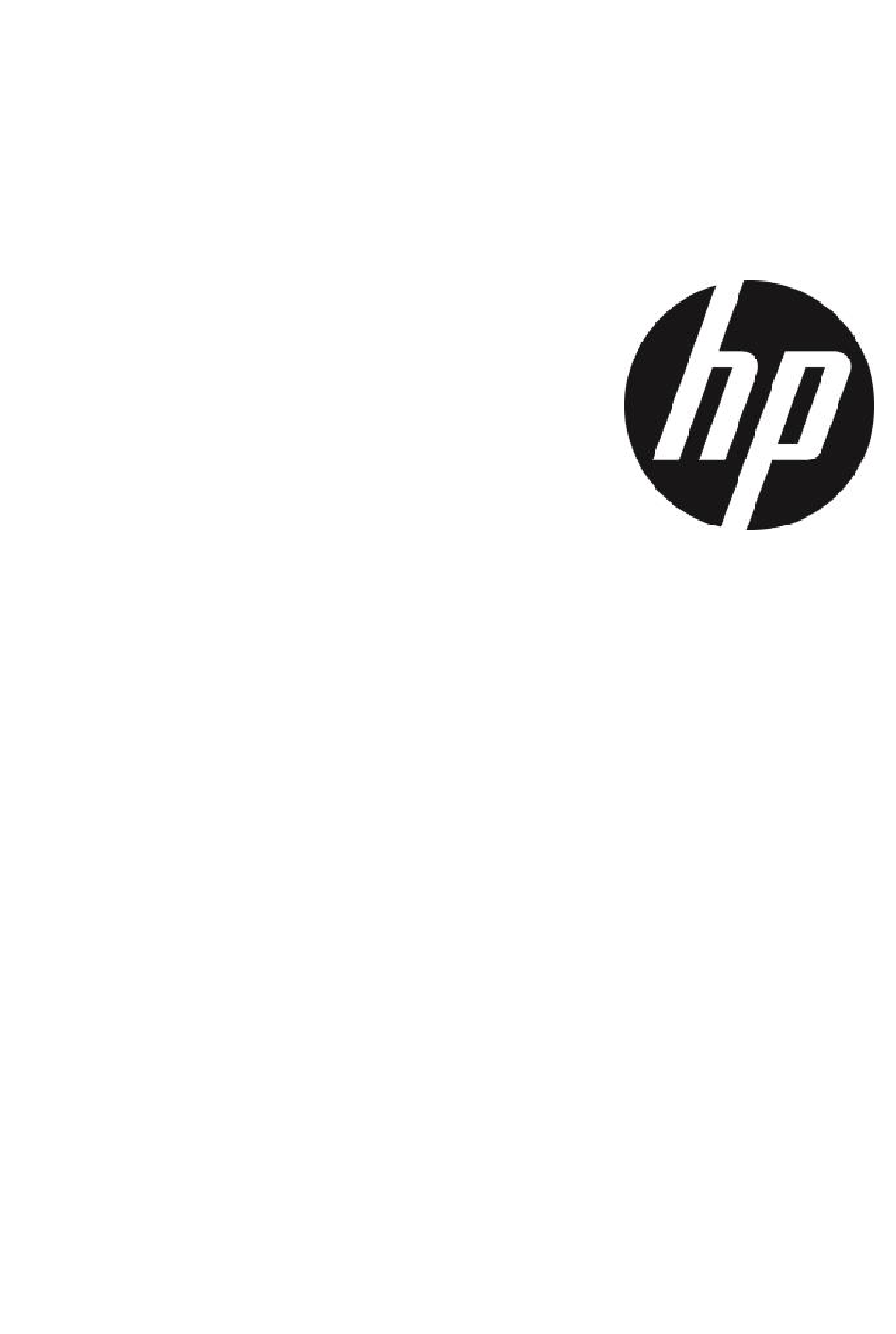

- Page 1 Car Camcorder User Manual...
-
Page 2: Table Of Contents
Contents Regulatory notices ................3 WEEE Notice ..................3 CE Regulatory Notice ................3 Notes on Installation ................3 Caution ....................4 Introduction ................6 Features ................... 6 Package Contents ..............6 Product Overview ..............7 Getting Started ..............8 Storage Media ................ - Page 3 Add Speed Point ..............18 Picture in Video ..............19 Driving Safety ................ 19 3.4.1 Speed Cam Alert ............20 3.4.2 Speed Limit Alert ............21 3.4.3 Driver Fatigue Alert ............ 22 3.4.4 LDWS ................22 3.4.5 FCWS ................24 3.4.6 Headlight Warning .............
-
Page 4: Regulatory Notices
About this Guide The content in this document is for information purpose and is subject to change without prior notice. We have made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors or omissions that may have occurred. -
Page 5: Caution
mirror (the central, higher right position of the front windshield). And we recommend that the sky and the land occupied by the screen 50%, fix the car holder and then adjust the camcorder so that the lane is aligned with the screen. Proper installation enables the camcorder to maximize the efficiency also can enhance the accuracy of LDWS. - Page 6 Improper use or operation of the product may result in damage of the product or its accessories and void the warranty. HP Inc. is NOT responsible for the loss of any data/content during operation. Before you start using the system, it is assumed that you...
-
Page 7: Introduction
1 Introduction Thank you for purchasing this advanced Car Camcorder. This product is specifically designed for real time video recording when driving. 1.1 Features Full HD 1920*1080 2.0" TFT-LCD color screen 150° Wide angle lens Collision Detection, when a collision is detected, the camcorder will automatically trigger the emergency recording ... -
Page 8: Product Overview
1.3 Product Overview Item Item LED Indicator Speaker LCD Color Screen Wide Angle Lens Menu / Back Button ( Microphone Add speed cam / Up Button ( Power Button Snapshot / Down Button ( Power Connector Port Memory Card Slot Emergency Recording / Confirm Button ( Bracket Knob... -
Page 9: Getting Started
2 Getting Started 2.1 Storage Media 2.1.1 Insert the Memory Card Insert memory card with the pins facing forward and the screen of the camcorder facing forward too, see the picture as below: 2.1.2 Remove the Memory Card If the camcorder is power on, please power off first and wait for the procedure of switching off the camcorder completed before removing the memory card. -
Page 10: Installing In Vehicles
2.2 Installing in Vehicles 2.2.1 Mount to Windshield Put the electrostatic sticker onto the suggested area on the windshield. Before putting the sticker, please wipe and clean the windshield. During the installation, please make sure the bubbles in between the sticker and the window are all gone. Peel off the protective plastic sheet from the adhesive pad. -
Page 11: Adjust The Camcorder
Place and press the bracket firmly onto the electrostatic sticker on the windshield window. Make sure the base is securely locked in place. 2.2.2 Adjust the Camcorder Loosen the knob to swivel the camcorder to adjust view angle. Then tighten the knob to make sure the camcorder is securely locked in place. -
Page 12: Connecting To Power
2.3 Connecting to Power Use only the supplied car charger to power up the camcorder. Connect one end of the car charger to the USB connector of the camcorder. USB port input: DC 5V / 1A. Plug the other end of the car charger to the cigarette lighter socket of your vehicle. -
Page 13: Powering The Camcorder On / Off
2.5 Powering the Camcorder On / Off 2.5.1 Auto Power On/Off Start the car engine, wait a few seconds to charge the camcorder, and then screen will light up and the camcorder will automatically power on and start recording. Once the vehicle engine shuts down, the camcorder automatically saves the recording and turns off the power. -
Page 14: Initial Settings
2.6 Initial Settings Before using the camcorder, we recommend you setup the correct Time zone, Date and Time. Note: Please note that if you press the button during recording, the system will stop recording and enter OSD menu. Make sure the recording is already stopped then continue operating the menu. 2.6.1 Set Time Zone To set the time zone, do the following: Press the... -
Page 15: Set The Date / Time
2.6.2 Set the Date / Time To set the correct date and time, do the following: Press the button to enter the OSD menu. Press the button to select Date / Time, and then press the button for entering function menu. -
Page 16: Using The Car Camcorder
3 Using the Car Camcorder 3.1 Automatic Record Start the car engine, wait a few seconds to charge the camcorder, and then screen will light up and the camcorder will automatically power on and start recording. Recording will automatically stop when the engine is switched off. Note: 1. -
Page 17: The Recording Screen
3.1.1 The Recording Screen Icon Item Description Recording Duration Indicates the video current duration. Indicates the current recording date Date / Time and time. During video recording, press the Menu Button button to enter the OSD menu. During video recording, press the Add Speed Point button to add a speed cam Button... - Page 18 Resolution Indicates the video resolution. icon Voice Record Indicates voice recording sets as off, the sound will not be recorded. icon Indicates the strength of satellite positioning. If the icon shows in red Satellite Positioning on screen, it indicates that the icon camcorder cannot complete the satellite positioning.
-
Page 19: Emergency Recording
3.1.2 Emergency Recording To Start the Emergency Recording, do the following: During Video Recording, press the button to enter emergency recording mode, the “Emergency” message will be shown immediately on the upper left corner of the screen, and the recorded file will be protected. -
Page 20: Picture In Video
3.3 Picture in Video You can also use this camcorder to take snapshots of the current scene. In recording status, press to capture recording screen shots from the front (and rear) lens. When the icon shows in the central of screen, it means the screenshots is completed. -
Page 21: Speed Cam Alert
3.4.1 Speed Cam Alert If the Speed Cam Alert function is enabled, once your car’s location is determined by GPS and approaches a speed cam, this product produces audible alert and screen message. To enable the Speed Cam Alert, do the following: Press the button to enter the OSD menu. -
Page 22: Speed Limit Alert
3.4.2 Speed Limit Alert If the Speed Limit Alert function is enabled, this product produces audible alert and screen message once your car’s location is determined by GPS and its running speed exceeds the set limit. To set the Speed Limit Alert, do the following: Press the button to enter the OSD menu. -
Page 23: Driver Fatigue Alert
3.4.3 Driver Fatigue Alert If the Driver Fatigue Alert function is enabled, this product produces audible alert and screen message one hour after it has begun recording and repeats the alerts every half hour afterwards. To enable the Driver Fatigue Alert, do the following: Press the button to enter the OSD menu. - Page 24 After enabling LDWS, the screen will display traffic lane align icon , please adjust the camcorder so that the horizontal line and the eye level are overlapped and the slash lines are centered in the driving lane. This product produces audible alert and screen message when LDWS is activates.
-
Page 25: Fcws
3.4.5 FCWS Once your car’s location is determined by GPS and the FCWS function is enabled, this camcorder produces audible alert and screen message when you drive at speeds over 60 km/h (37 mph) and are less than 20 m away from the car in front of you. -
Page 26: Headlight Warning
3.4.6 Headlight Warning The Headlight Warning function produces audible alert and screen message when it detects poor lighting conditions through the recording displays of this camcorder, including driving in rainy or cloudy weather, at night, and in basements, parking lots, and tunnels. To enable the Headlight Warning, do the following: Press the button to enter the OSD menu. - Page 27 3.4.7 FCMD If FCMD function is enabled, when the front car moves and you don’t start to drive forward, the camcorder will issue audible alert and screen message. To set the FCMD (Front Car Move Detection), do the following: Press the button to enter the OSD menu.
-
Page 28: Parking Mode
3.5 Parking Mode To monitor the vehicle when it is parked, you can activate Park Recording, or Motion and Collision Detection, or Timelapse. Before you activate Parking Mode, please install ACC cable through professional car service shop. Follow the steps below to change the settings for Parking Mode: Press the button to enter the OSD menu. - Page 29 3.5.2 Motion and Collision Detection - In normal loop recording mode, press and hold POWER key for 3 seconds, the screen will show message “Press OK to power off or enter Motion and Collision Detection after 10 sec.” Please wait for 10 seconds and the camcorder will enter Motion and Collision Detection automatically.
-
Page 30: Collision Detection
3.6 Collision Detection If the Collision Detection function is enabled, this camcorder begins emergency recording once it detects any collision. Sensitivity of the Collision Detection function is set to Normal by default, if user wants to change the settings of Collision Detection, do the following: Press the button to enter the OSD menu. -
Page 31: Playback Videos And Photos
3.7 Playback Videos and Photos If recording is in progress, press the button to stop recording and enter Menu. Press the button to select Playback and press the button. Press the button to select Video, Emergency or Picture category and press button. -
Page 32: The Playback Screen
3.8 The Playback Screen Item Description File name File name Duration/ Total Indicates the video elapse time/ Indicates total recorded recorded time time Press the button to return preview screen of Return video or picture. Press the button repetitively to return recording screen. -
Page 33: Deleting Files
3.9 Deleting Files To delete file(s), perform the following steps: Press the button to stop recording and enter the main Menu. Press the button to select File Deletion and press the button to confirm. Press the button to select folder and press the button to confirm. -
Page 34: Adjusting The Settings
4 Adjusting the Settings 4.1 Using the Menu You can customize the general settings via the on-screen display (OSD) menus. Press the button to enter the OSD menu. Press the button to select menu item, and then press button for entering function menu. Press the button to select or adjust the value, and then press the... - Page 35 Menu option Description Available option If the Speed Cam Alert function is enabled, once your car’s location is determined Speed Cam Alert by GPS and approaches a On / Off speed cam, this product produces audible alert and screen message. Add Speed Point: The satellite positioning will manually add speed camera...
- Page 36 Menu option Description Available option Press the button to Setting of exposure value. set the exposure value. It can be set between -2 ~ +2 Set LCD off time. Camcorder screen will be off after a set time if no operation is On/ Turn off after 7 sec / detected during the standby LCD Setting...
- Page 37 Menu option Description Available option When Headlight Warning is activated, camcorder will issue an audible alert and Headlight Warning On / Off screen message reminding that insufficient brightness is sensed on the recording face. Once your car’s location is determined by GPS and the LDWS function is enabled, this camcorder produces audible LDWS...
- Page 38 Menu option Description Available option Format the memory card inserted in the equipment. All Format Yes / No the files in the card will be erased. The system reverts to the Default Yes / No default setting. Indicates the current Firmware Version firmware version.
-
Page 39: Installing The Software
5 Installing the Software Place the attached CD ROM into the CD player. If the CD does not execute automatically, please use Windows File Manager to execute the Install_CD.exe file in the CD. The following screen will be shown up. Press the [Menu] item to start the installation process according to the instructions on-screen. -
Page 40: Supercar
6 SuperCar Item Item Video Player File Path Play / Pause Browser File Previous File List Next File Name Stop Volume Playback Duration / Total Electronic Map Duration Compass Signal Noise Ratio (SNR) Speed Meter G-Sensor Note: 1. To display the route on Electronic Map, please make sure the internet is connected before starting the video playback. -
Page 41: Specifications
7 Specifications Item Description Image sensor 1/2.7” CMOS sensor 1920 (H) x 1080 (V) Effective pixels Storage media Supports Micro SDHC, up to 32GB class 10 speed or greater LCD display 2” LCD color TFT Wide Angle Fixed Focus lens Lens Aperture: Up to F2.2 Focus range... - Page 42 Item Description Operating 0° ~ 45° C Temperature Operating Humidity 20 ~ 70% RH Storage -20° ~ 70° C Temperature Dimensions 58 x 43.5 x 45.3 mm Weight Approx. 82g...
