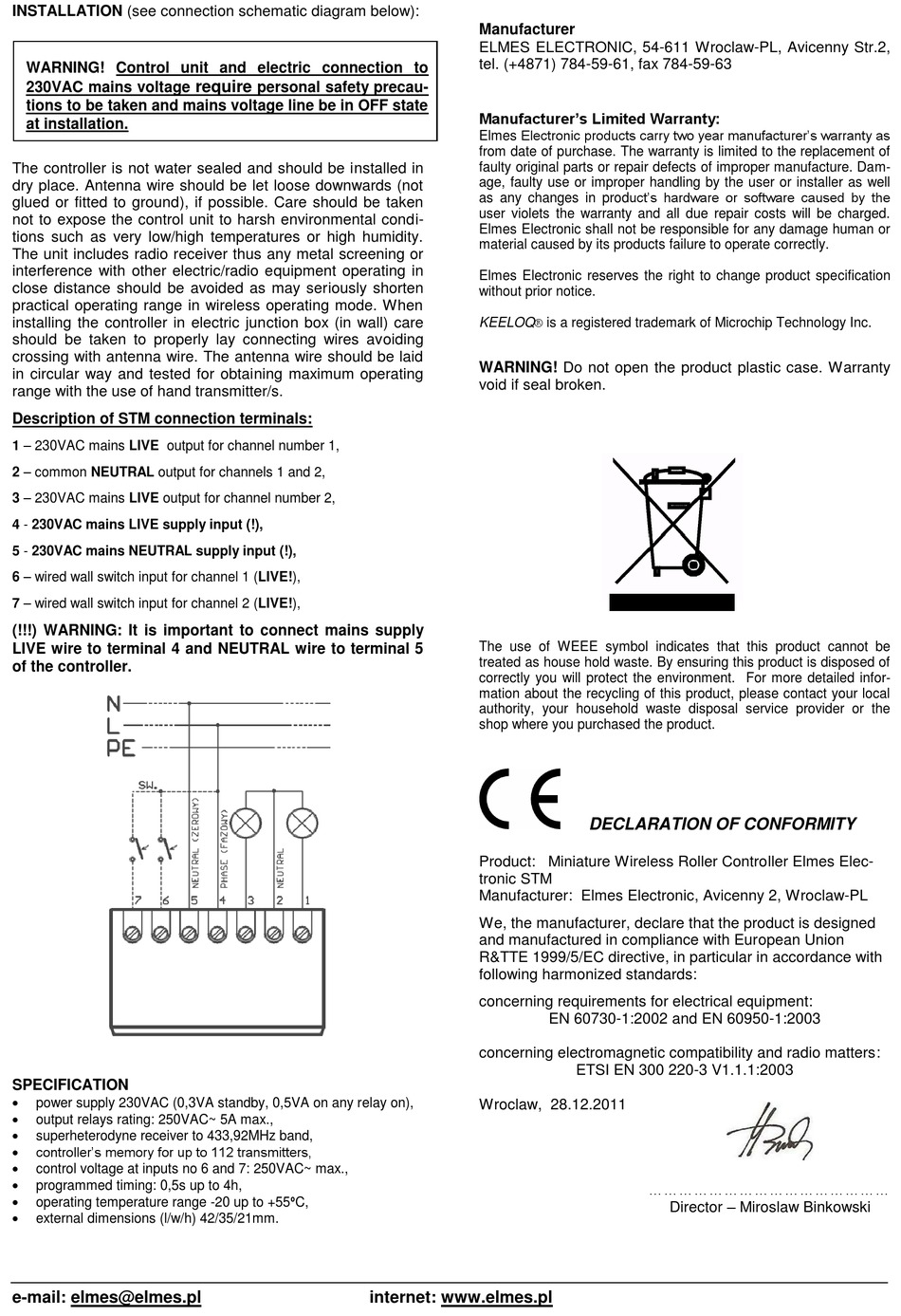

Elmes Electronic STM-2K Manual page 2

INSTALLATION (see connection schematic diagram below):
WARNING! Control unit and electric connection to
230VAC mains voltage
tions to be taken and mains voltage line be in OFF state
at installation.
The controller is not water sealed and should be installed in
dry place. Antenna wire should be let loose downwards (not
glued or fitted to ground), if possible. Care should be taken
not to expose the control unit to harsh environmental condi-
tions such as very low/high temperatures or high humidity.
The unit includes radio receiver thus any metal screening or
interference with other electric/radio equipment operating in
close distance should be avoided as may seriously shorten
practical operating range in wireless operating mode. When
installing the controller in electric junction box (in wall) care
should be taken to properly lay connecting wires avoiding
crossing with antenna wire. The antenna wire should be laid
in circular way and tested for obtaining maximum operating
range with the use of hand transmitter/s.
Description of STM connection terminals:
1 – 230VAC mains LIVE output for channel number 1,
2 – common NEUTRAL output for channels 1 and 2,
3 – 230VAC mains LIVE output for channel number 2,
4 - 230VAC mains LIVE supply input (!),
5 - 230VAC mains NEUTRAL supply input (!),
6 – wired wall switch input for channel 1 (LIVE!),
7 – wired wall switch input for channel 2 (LIVE!),
(!!!) WARNING: It is important to connect mains supply
LIVE wire to terminal 4 and NEUTRAL wire to terminal 5
of the controller.
SPECIFICATION

power supply 230VAC (0,3VA standby, 0,5VA on any relay on),

output relays rating: 250VAC~ 5A max.,

superheterodyne receiver to 433,92MHz band,

controller's memory for up to 112 transmitters,

control voltage at inputs no 6 and 7: 250VAC~ max.,

programmed timing: 0,5s up to 4h,

operating temperature range -20 up to +55ºC,

external dimensions (l/w/h) 42/35/21mm.
e-mail: elmes@elmes.pl
require
personal safety precau-
Manufacturer
ELMES ELECTRONIC, 54-611 Wroclaw-PL, Avicenny Str.2,
tel. (+4871) 784-59-61, fax 784-59-63
Manufacturer's Limited Warranty:
Elmes Electronic products carry two year manufacturer's warranty as
from date of purchase. The warranty is limited to the replacement of
faulty original parts or repair defects of improper manufacture. Dam-
age, faulty use or improper handling by the user or installer as well
as any changes in product's hardware or software caused by the
user violets the warranty and all due repair costs will be charged.
Elmes Electronic shall not be responsible for any damage human or
material caused by its products failure to operate correctly.
Elmes Electronic reserves the right to change product specification
without prior notice.
KEELOQ® is a registered trademark of Microchip Technology Inc.
WARNING! Do not open the product plastic case. Warranty
void if seal broken.
The use of WEEE symbol indicates that this product cannot be
treated as house hold waste. By ensuring this product is disposed of
correctly you will protect the environment. For more detailed infor-
mation about the recycling of this product, please contact your local
authority, your household waste disposal service provider or the
shop where you purchased the product.
Product: Miniature Wireless Roller Controller Elmes Elec-
tronic STM
Manufacturer: Elmes Electronic, Avicenny 2, Wroclaw-PL
We, the manufacturer, declare that the product is designed
and manufactured in compliance with European Union
R&TTE 1999/5/EC directive, in particular in accordance with
following harmonized standards:
concerning requirements for electrical equipment:
concerning electromagnetic compatibility and radio matters:
Wroclaw, 28.12.2011
internet: www.elmes.pl
DECLARATION OF CONFORMITY
EN 60730-1:2002 and EN 60950-1:2003
ETSI EN 300 220-3 V1.1.1:2003
................................................
Director – Miroslaw Binkowski
