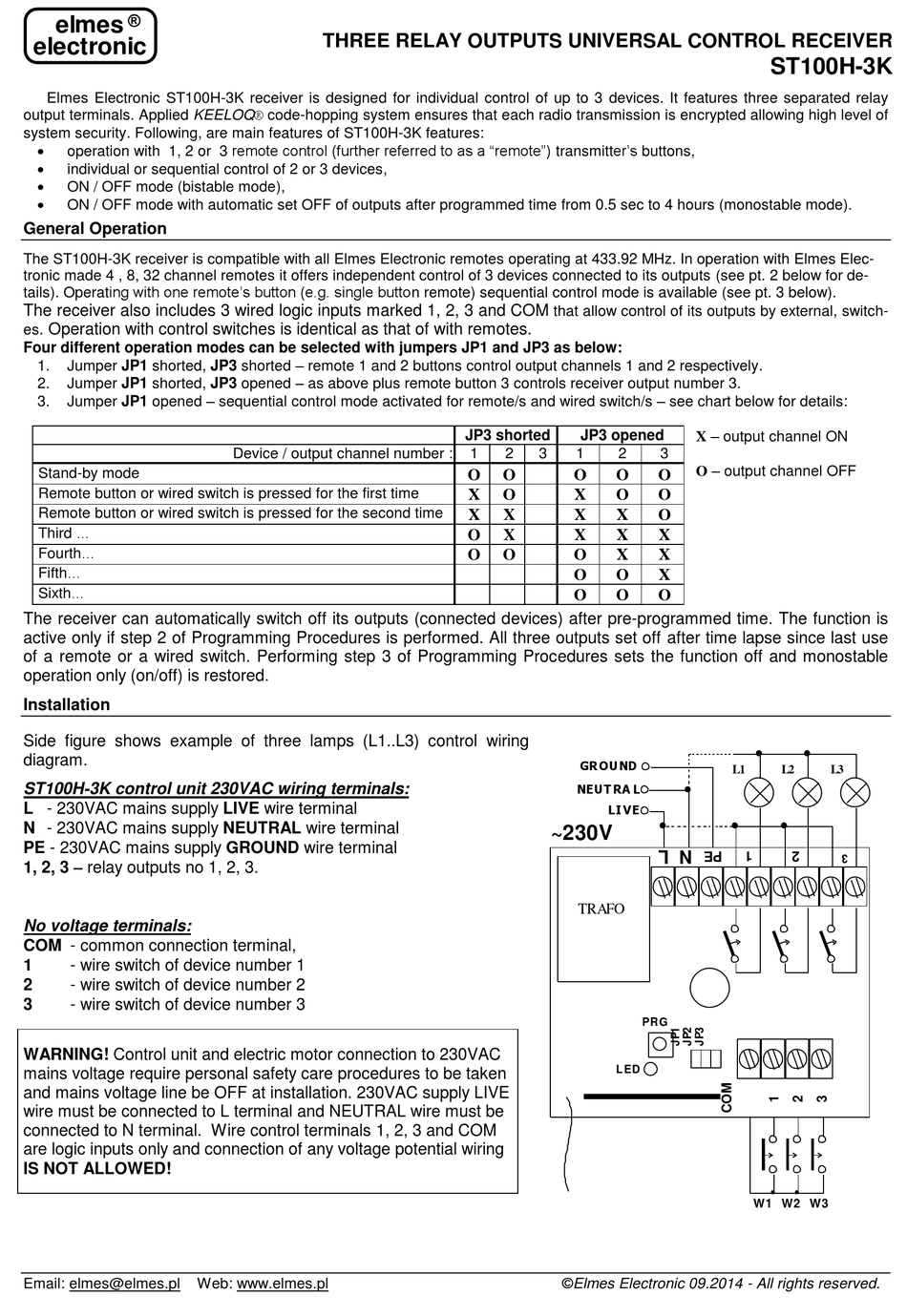

Elmes Electronic ST100H-3K Quick Start Manual

elmes
electronic

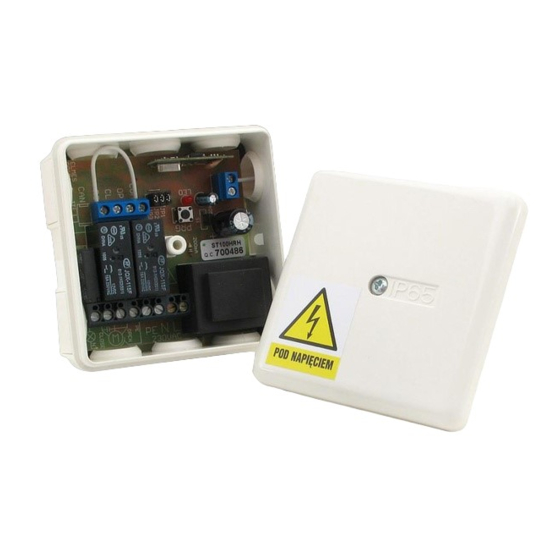

Elmes Electronic ST100H-3K receiver is designed for individual control of up to 3 devices. It features three separated relay
output terminals. Applied KEELOQ® code-hopping system ensures that each radio transmission is encrypted allowing high level of
system security. Following, are main features of ST100H-3K features:

operation with 1, 2 or 3 remote control (further referred to as a "remote") transmitter's buttons,

individual or sequential control of 2 or 3 devices,

ON / OFF mode (bistable mode),

ON / OFF mode with automatic set OFF of outputs after programmed time from 0.5 sec to 4 hours (monostable mode).

General Operation

The ST100H-3K receiver is compatible with all Elmes Electronic remotes operating at 433.92 MHz. In operation with Elmes Elec-
tronic made 4 , 8, 32 channel remotes it offers independent control of 3 devices connected to its outputs (see pt. 2 below for de-
tails). Operating with one remote's button (e.g. single button remote) sequential control mode is available (see pt. 3 below).
The receiver also includes 3 wired logic inputs marked 1, 2, 3 and COM
. Operation with control switches is identical as that of with remotes.
es
Four different operation modes can be selected with jumpers JP1 and JP3 as below:
Jumper JP1 shorted, JP3 shorted – remote 1 and 2 buttons control output channels 1 and 2 respectively.
1.
Jumper JP1 shorted, JP3 opened – as above plus remote button 3 controls receiver output number 3.
2.
Jumper JP1 opened – sequential control mode activated for remote/s and wired switch/s – see chart below for details:
3.
Stand-by mode
Remote button or wired switch is pressed for the first time
Remote button or wired switch is pressed for the second time
Third ...
Fourth...
Fifth...
Sixth...
The receiver can automatically switch off its outputs (connected devices) after pre-programmed time. The function is
active only if step 2 of Programming Procedures is performed. All three outputs set off after time lapse since last use
of a remote or a wired switch. Performing step 3 of Programming Procedures sets the function off and monostable
operation only (on/off) is restored.

Installation

Side figure shows example of three lamps (L1..L3) control wiring
diagram.
ST100H-3K control unit 230VAC wiring terminals:
L - 230VAC mains supply LIVE wire terminal
N - 230VAC mains supply NEUTRAL wire terminal
PE - 230VAC mains supply GROUND wire terminal
1, 2, 3 – relay outputs no 1, 2, 3.
No voltage terminals:
COM - common connection terminal,
1 - wire switch of device number 1
2 - wire switch of device number 2
3 - wire switch of device number 3
WARNING! Control unit and electric motor connection to 230VAC
mains voltage require personal safety care procedures to be taken
and mains voltage line be OFF at installation. 230VAC supply LIVE
wire must be connected to L terminal and NEUTRAL wire must be
connected to N terminal. Wire control terminals 1, 2, 3 and COM
are logic inputs only and connection of any voltage potential wiring
IS NOT ALLOWED!
Email: elmes@elmes.pl
THREE RELAY OUTPUTS UNIVERSAL CONTROL RECEIVER
Device / output channel number :
Web: www.elmes.pl
that allow control of its outputs by external, switch-
JP3 shorted JP3 opened
1 2 3 1 2
O O O O
X O X O
X X X X
O X X X
O O O X
O O
O O
GR OUND
NEUT RA L
LIVE
~230V
TRAFO
L ED
©Elmes Electronic 09.2014 - All rights reserved.
ST100H-3K
X – output channel ON
3
O – output channel OFF
O
O
O
X
X
X
O
L1 L2
PRG
W1 W2 W3
L3
