AdMore Lighting LED470-KAW-T-TS Installation Instructions

Light kit

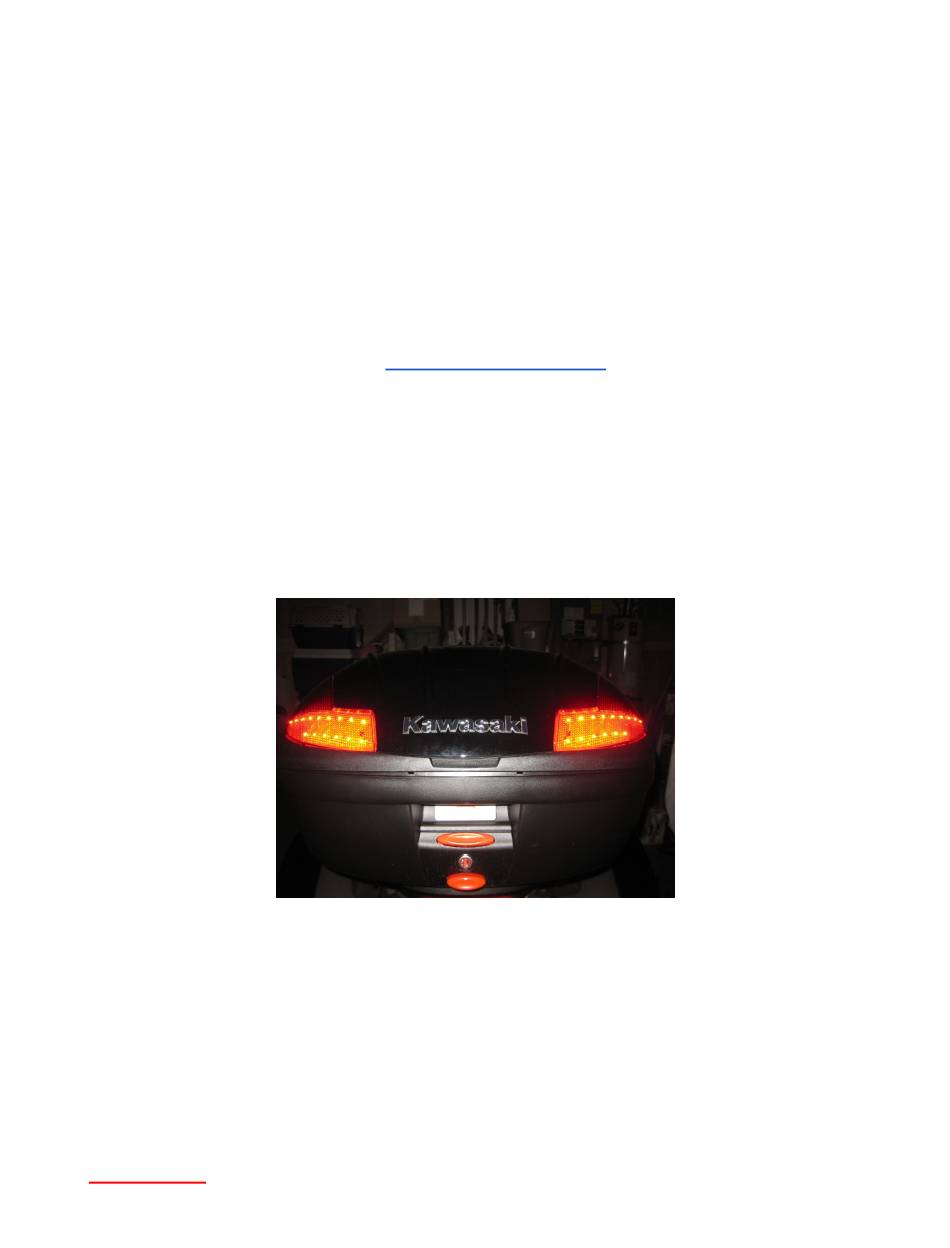

Congratulations on your purchase of the LED470-KAW-T-TS LIGHT KIT!

The LED470-KAW-T-TS LIGHT KIT will work on your motorcycle fitted with a top-

mounted Kawasaki 47L case. The kit is easy to install and significantly enhances your

visibility on the road and the good looks of your Kawasaki 47L case. Each kit contains

LED lighting that fits perfectly behind the original red lenses of the case. The embedded

mini controller fits neatly under your seat or behind the tail light assembly. The mini

controller allows you to connect the light kit to your bike's tail light, brake light and turn

signals. Your case lights will always be on when riding, the lights will brighten when you

apply your brakes, and the right or left case lights will flash with your turn signals.

This instruction set is available at

www.admorelighting.com

on this product's page under

the "Documentation" tab.

Please note: We make no guarantee that the LED470-KAW-T-TS LIGHT KIT is

legal for street use in your area. You should never rely on your LED470-KAW-T-

TS LIGHT KIT alone – always ensure that your stock brake light and turn signals

are functioning properly. The LED470-KAW-T-TS LIGHT KIT is intended to

complement your bike's original safety lights for added safety.

Rev.

AdMore Lighting Inc. (2017)

Table of Contents

Need help?

Do you have a question about the LED470-KAW-T-TS and is the answer not in the manual?

Page 1 Congratulations on your purchase of the LED470-KAW-T-TS LIGHT KIT! The LED470-KAW-T-TS LIGHT KIT will work on your motorcycle fitted with a top- mounted Kawasaki 47L case. The kit is easy to install and significantly enhances your visibility on the road and the good looks of your Kawasaki 47L case. Each kit contains LED lighting that fits perfectly behind the original red lenses of the case.
Page 2 Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Rev. AdMore Lighting Inc. (2017)
Page 3 LED470-KAW-T-TS LIGHT KIT with turn signal function Installation Instructions Please read all instructions fully BEFORE beginning installation! Remove the screws that hold the red lenses and cover in place. Working one side at a time, remove the white insert from behind the red lens.
Page 4 LED470-KAW-T-TS LIGHT KIT Wiring Instructions Your AdMore Light Kit has been designed to operate with the tail, brake and turn signal light functions of your motorcycle or scooter. Using the supplied wire tap connectors, look as close to the rear taillight as possible to locate the indicated wires:...
