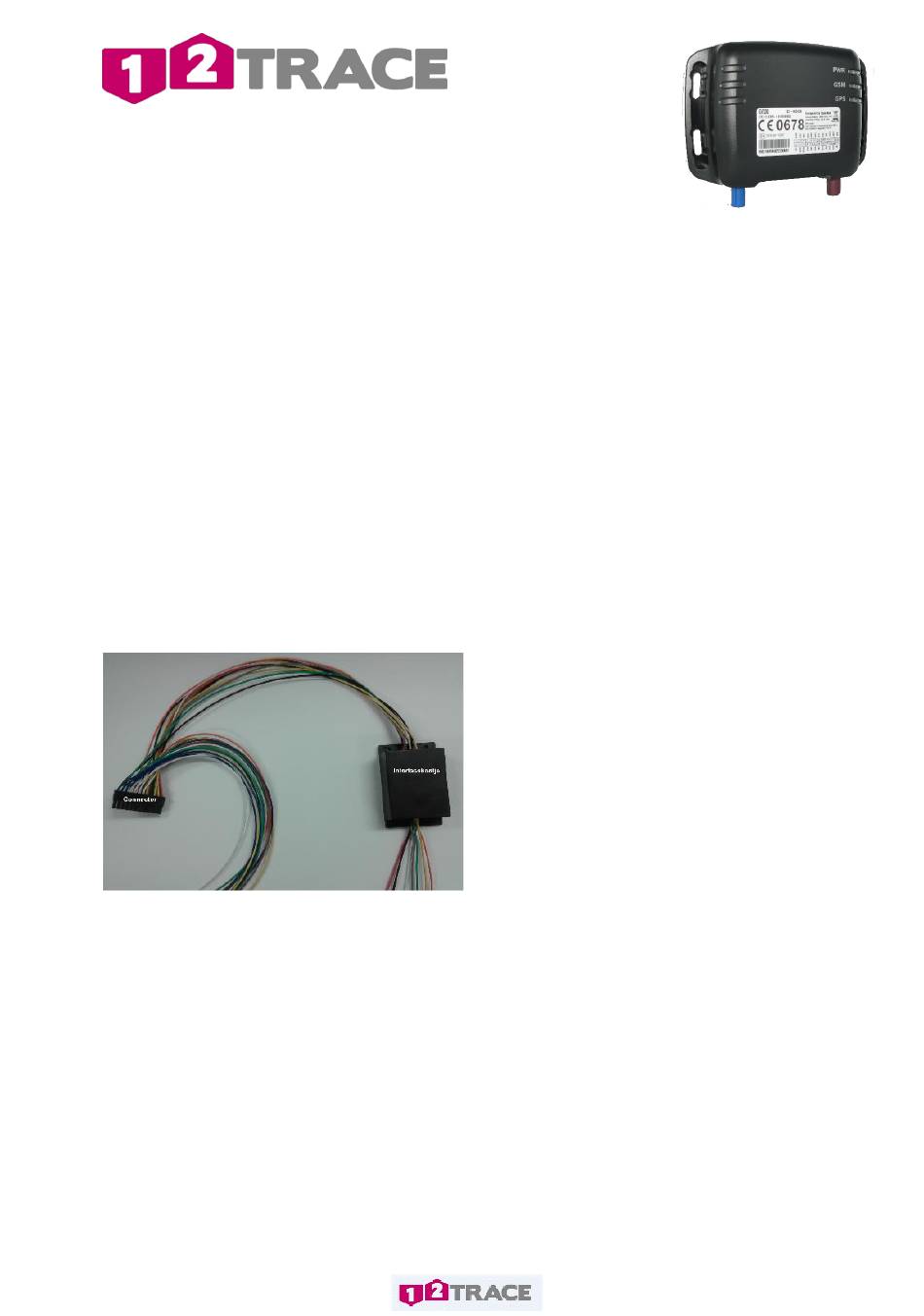

User manual GeoChaser Control
1.Introduction

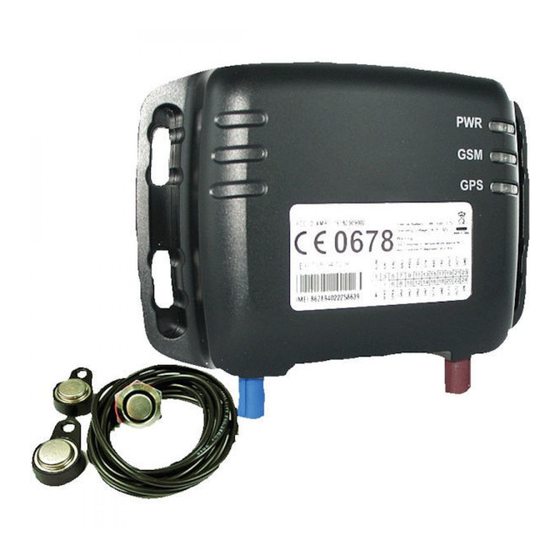

The GeoControle is a GPS tracking system designed for vehicle tracking. The device has
superior reception sensitivity, fast positioning and supports four-band GSM frequencies
850/900/1800/1900, the location can be viewed in real time on your personal 12Trace
page. The GeoControle has several inputs / outputs that can be used for the control or
control of external devices. The GeoControls communicate via the GPRS / GSM network
and can alert you when a virtual fence, low back-up battery or shortage of
communication credit is exceeded.
• Your GeoControle uses the Global Positioning System (GPS). The GPS system is
maintained by the US government. Changes in the availability and accuracy of the
system can adversely affect the operation of the GeoControl. 12Trace cannot take
responsibility for the reliability, availability and accuracy of the GPS system, as a result of
third parties. You will find more information in the disclaimer of 12Trace.
• Tall buildings and metal structures can adversely affect the determination of the
position by the GeoControl.
2. Interface Definities:
The definition is shown in the following table.
Color
Description
Red
Battery voltage
Black
Mass
Orange Contact input
Green
Release
Yellow Ibutton indication
Gray
Ibutton Signal
White
Ibutton mass
Engels V1.7
The connector with wires must be used to
connect the GeoControl. For the basic
connections you can use the wires that
come out of the pre-assembled interface
box.
Note
External supply voltage 8-32V
Connect to the vehicle's ground
Connect to contact-switched supply voltage
Release Start Lock
Connect to the Yellow wire to the Ibutton reader
Connect to the Gray wire on the Ibutton reader
Connect to the White wire on the Ibutton reader
Pagina 1 van 7
laatste wijziging: 12-47-2019
Advertisement
Table of Contents
Related Manuals for 12trace GeoChaser
Summary of Contents for 12trace GeoChaser
- Page 1 The GeoControle is a GPS tracking system designed for vehicle tracking. The device has superior reception sensitivity, fast positioning and supports four-band GSM frequencies 850/900/1800/1900, the location can be viewed in real time on your personal 12Trace page. The GeoControle has several inputs / outputs that can be used for the control or control of external devices.
- Page 2 4.1 New user New users must first create an account on www.12trace.nl. Go to the site, click on the "login" button and then on "create account". You will be asked to enter a number of details.
- Page 3 SIM card. It is not possible to insert a different SIM card, this leads to device failure. 4.2 Existing user If you already have a 12Trace account, you can add the GeoControle to your account. Log in to your account with the "log in" button and then click on "Add GeoControl", and enter the requested information.
- Page 4 6.3 Digitaleuitgangen The digital outputs are the yellow wires. This output can e.g. control a siren or horn with a maximum control current of 200mA. The output switches to the ground. Pagina 4 van 7 Engels V1.7 laatste wijziging: 12-47-2019...
- Page 5 7. Set up the GeoControl After logging in and logging in to the website, you will get an overview of the GeoLockers, GeoChasers and GeoControles known on your account. After selecting the device you will enter the main screen of your device. From here you can change settings, see what the current position is and what routes you have traveled, request the current location and top up your credit.
- Page 6 External connections: Your GeoControl has options for communicating with peripheral equipment. Various settings can be made for this here. Milage and hour values: change mileage and working hours Keys: Here you can enter the keys for the immobilizer. Product information: Here you see some basic data and you can delete the history of your GeoControl.
- Page 7 Apart from the automated administration by 12Trace, account remains for which journeys are private or business with private part for the user. Also the detour and the reason for it is up to the user and can be noted in the comments column. The tax authorities will ask for the locations and proof of the address designated as business at check.
