- Page 1 Microtech User Manual 2018 TC Auto Open Heat Press with Double Stations Manual Model No: TC-15/20A Page 1 of 7...
-
Page 2: Table Of Contents
Microtech User Manual 2018 Contents Assembly Drawing ........................2 Technical parameters ....................... 3 Operation Process ........................3 Setting Required Temperature ..................... 3 Setting Required Time ......................4 Temperature offset calibration and Heat safety Settings ..........4 Printing Guidance ........................5 Maintenance .......................... -
Page 3: Technical Parameters

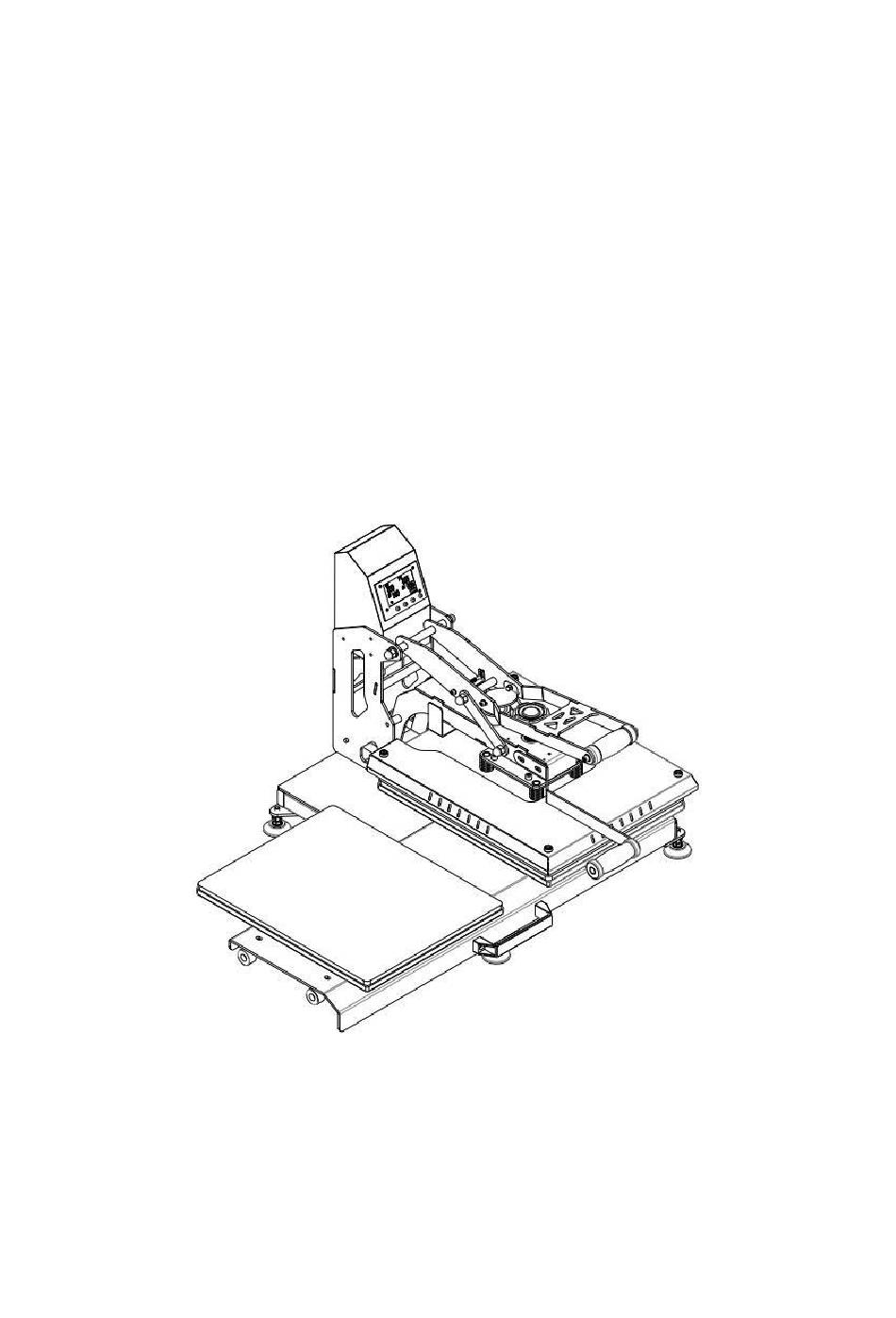

Microtech User Manual 2018 1. Electrical Case 2. Handle 3. Heat platen 4. Crane 5. Base 6. Exchangeable heat platen 2. Technical parameters 1. Model No. TC-20A 2. Machine Size: 1084*778.9*607mm 3. Print Articles Max Size: 400*500*10mm 4. Voltage: 220v/1... -
Page 4: Setting Required Time
Microtech User Manual 2018 Turn on machine via power switch, After setting your reading, press the Press button, the focused when the temperature light is ON. measurement is button, when the temp light is on. The digital display shows as above. -
Page 5: Printing Guidance
Microtech User Manual 2018 When there is temperature difference between The machine is already pre-set to 003 before shipment. SV (current heating temperature shows on the This setting is there as a safety measure, if your display screen) and actual temperature of heat setting temperature is 200°C, it will slow down... -
Page 6: Maintenance
Microtech User Manual 2018 Step 4: The timer will be active during the transfer, once the transfer time is up, the upper heat platen will auto open and swing away to another side automatically. Step 5: Consult the Transfer Paper instructions on whether to peel cold or hot, here are suggested Pressing time guidelines for different transfer paper (Rough values). -
Page 7: Troubleshooting Print Transfer Quality
Microtech User Manual 2018 3. The heat platen works well, but suddenly the display screen show 255℃. 1). Check whether the thermocouple of the heat platen is connected well. 2). If the thermocouple is connected well but still the display still shows 255℃, then it is faulty.
