Microtech User Manual
Digital Mug Heat Press Manual Model No
Contents
1.
Assembly Drawing .................................................................................................................... 2
2.
Technical Parameters ............................................................................................................... 2
3.
Operating Process .................................................................................................................... 3
Model No: MP-60
2018
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Microtech MP-60
Summary of Contents for Microtech MP-60
- Page 1 Microtech User Manual 2018 Digital Mug Heat Press Manual Model No Model No: MP-60 Contents Assembly Drawing ........................2 Technical Parameters ....................... 2 Operating Process ........................3 Page 1 of 6...
-
Page 2: Assembly Drawing

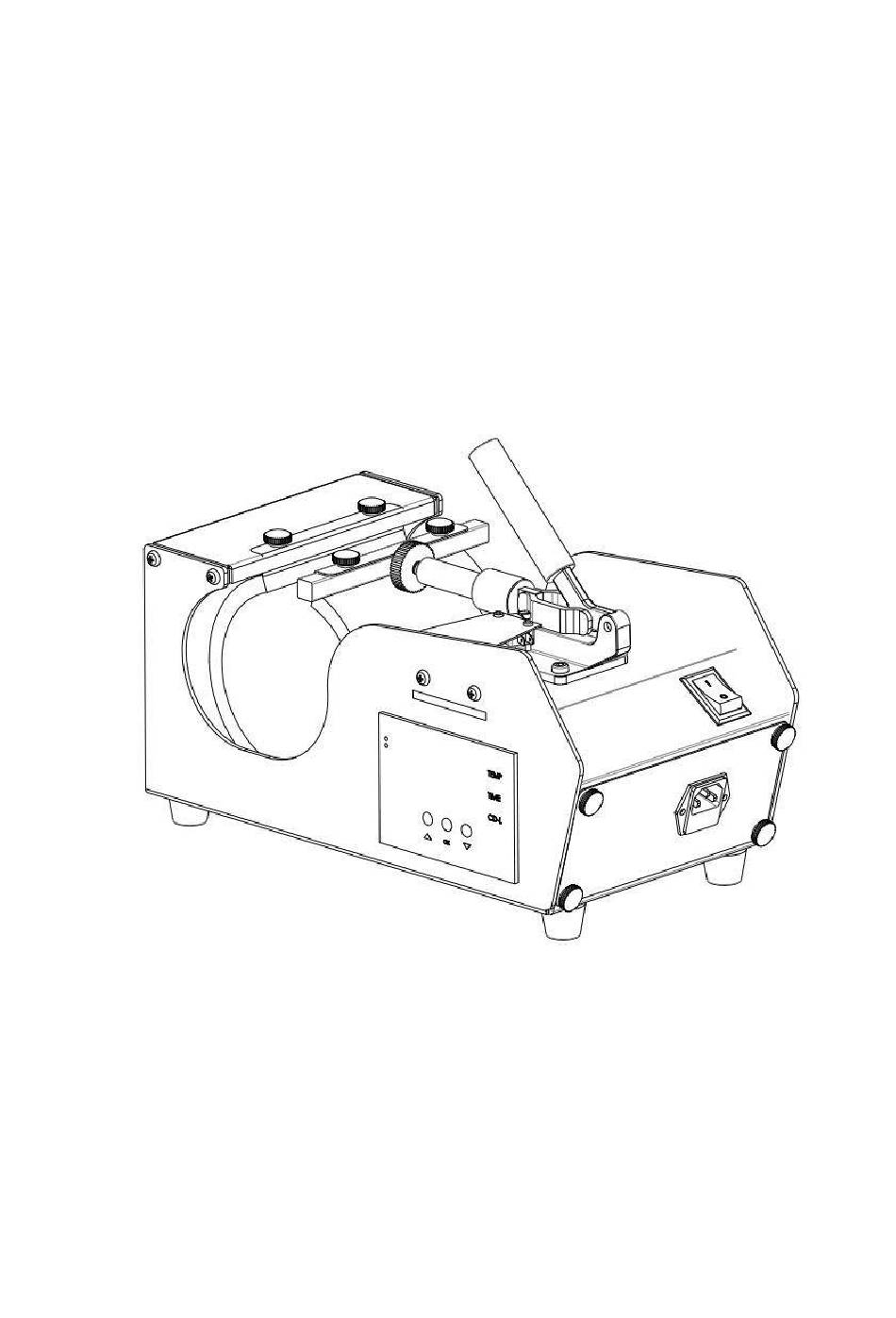

1. Assembly Drawing 1. GY-04 Digital Controller 2. Power Socket 3.Power Switch 4. Handle toggle 5. Pressure Adjustment Screw 6. M5 Screw 7. Mug heater 8. Machine Feet 2. Technical Parameters MP-60 Technical Parameters Model No: MP-60 Page 2 of 6... - Page 3 Microtech User Manual 2018 Machine Dimensions: 350*220*256mm Printable Articles Max Size: 100*200mm Voltage: 220v/Phase 1;120v/Phase 1 Power: 0.2KW Time Rage:0-999s Recommended Setting: 30-280s, 180-210°C Packing Size: 460*300*355mm 3. Operating Process 1. Set temperature required Switch on the machine via the...
- Page 4 Microtech User Manual 2018 Press the OK button after setting Press the OK button after setting the Note: When the temperature showing on the display is not the the temperature and the time is time; the display shows the temperature starts to rise. The “CD-L”...
- Page 5 Microtech User Manual 2018 5. Maintenance 1. No action after turn on the machine 1). Check the plug as to whether it connects well enough to the wall socket or whether it is broken. 2). Check the power switch or the digital controller whether it is broken.
-
Page 6: Circuit Diagram
Microtech User Manual 2018 4). The mug heater is identified as a consumable. You will need to change this for a a new one after doing transfer prints for roughly 700 cycles. If you use our Grade A mug heater, then you may change the mug heater after 2000 transfer cycles.
