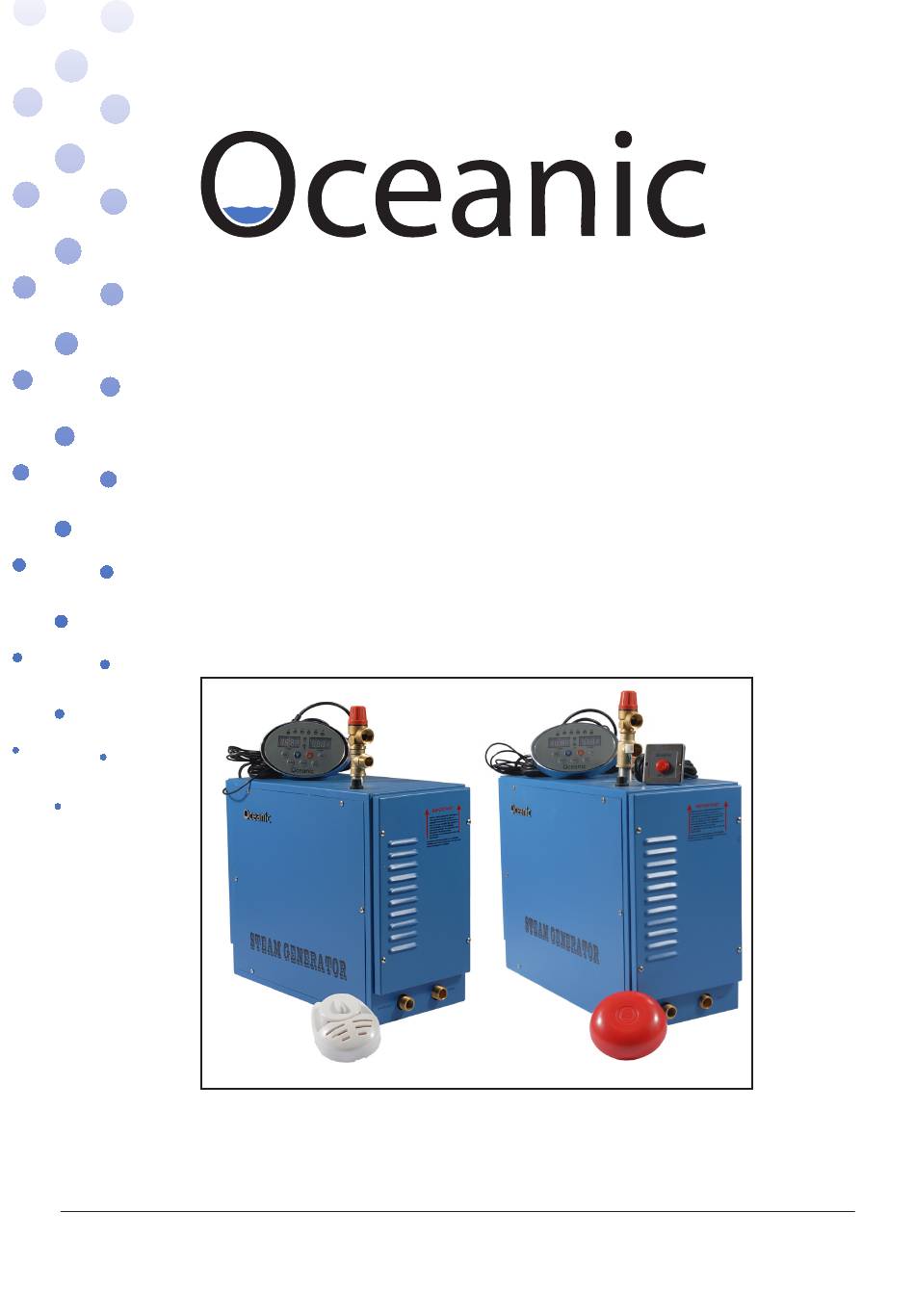

- Page 1 S a u n a & S t e a m STEAM GENERATOR (Domestic & Light Commercial) Assembly and operating manual PRODUCT IMAGE 21.02.18 Oceanic Ltd, Pountney Street, Wolverhampton, WV2 4HX Phone: 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 2: Table Of Contents
13. Guarantee ..........19 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 3: Introduction
S a u n a & S t e a m Steam Generator Manual Introduction Thank you for choosing to buy our Oceanic steam generator, please take the time to read these instructions before you begin as they contain important information about the installation and maintenance requirements. -
Page 4: Specification
4kw machine. See circuit diagram on page 15. Domestic unit Steam On-Demand unit 3/4” 3/4” White Steam Chrome steam Steam On Demand 1/2” Steam outlet Steam inlet nozzle nozzle button Steam outlet Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 5: Wiring Multiple Steam Generators
12kw steam generator or three 10kw steam generators. Temperature sensor Multiple steam generators wiring schematic OC-A controller Slave Slave Master To next slave Pressure release valve Steam Outlet To drain Water Inlet Pressure reducing Multiple steam generators plumbing valve Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 6: Steam Generator Frame Sizes
Clearance distances >300mm >500mm >200mm >400mm 5.4. Ventilation Ensure air flow into area where steam generator is housed. For commercial use ensure good ventilation from at least two ducts within the housing of the generator Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 7: Steam Generator Parts Description
Control center Accessory circuit board Connect and control the heat element Terminal Connection for power supply Earth wire plug Connection for earth wire Water inlet Water inlet to the boiler Elements Electrical heating elements Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 8: Temperature Sensor Parameters
5.7. Temperature Sensor Parameters MODEL Detected Scope Max Cut out Size (mm) Temperature OC-S 0-110 32-230 Minimum distances for temperature sensor installation Temperature sensor 1800mm >500mm Steam nozzle 300mm Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 9: Oc-A Controller Description
It will switch on. Indicates the detected temperature is lower than the preset temperature and steam generator is heating. Indicates the detected temperature is higher than the preset temperature and the steam generator is idling. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 10: Installation
The following table is given as a guide; ambient air temperatures and frequency of use (number of door openings) can also affect the power requirements. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 11: Steam Generator Location
• Do not reduce size of steam pipe at any point • the steam pipe must not go down and then up, as this will create a trap and damage the steam generator. <10m Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 12: Water And Steam Connections
Connect the drain outlet to a suitable drain via a copper pipe with the appropriate fittings. Pressure release valve Steam outlet nozzle 300mm Steam pipe 10m max insulated above 5m Pressure reducer valve To drain Water inlet Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 13: Installation For Controller And Temperature Probe
230v connection on the main circuit board upto 100watts in power. ii. - Use the supplied grey connector with two blue wires to connect to the light empty output on the circuit board labelled “LIGHT” Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 14: Steam On Demand Function (Only Supplied With Commercial Generators)
30 minutes then stop until activated again. To set STEAM ON DEMAND – hold the drain button for 10 seconds until the screen says LONG and L4 goes red. Circuit Diagrams Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... - Page 15 S a u n a & S t e a m Steam Generator Manual Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
-
Page 16: Testing And Operation
(note this isn’t the same as setting the time to long). iv. Your generator is now ready for steam on demand, push the button and it will steam for 30 minutes until pressed again when it will go for another 30 minutes. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 17: Troubleshooting Guide
2. If runs while machine is on try above if fails clean water probe and check connection to circuit board. Generator works when Relays 1. Replace relay PCB. switched off on the control panel. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 18: Maintenance
Clean the filter net in the magnetic valve according to the water quality in the location. The condition of the wiring and electrical integrity of the generator should be checked regularly - for commercial operators this should be at least once a year. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 19: Guarantee
If you encounter any difficulty with this assembly procedure or think we could have explained anything more clearly we would welcome your comments, please call T: 01902 450550 or T: 01902 871127 technical help line. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
