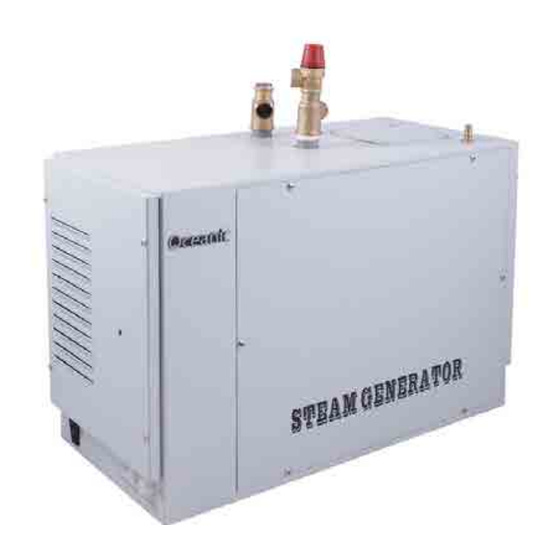

- Page 1 S a u n a & S t e a m Heavy Duty Commercial STEAM GENERATOR PRODUCT IMAGE 15.06.17 Oceanic Ltd, Pountney Street, Wolverhampton, WV2 4HX Phone: 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 2: Table Of Contents
13. Guarantee ..........19 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 3: Introduction
S a u n a & S t e a m Steam Generator Manual Introduction Thank you for choosing to buy our Oceanic steam generator, please take the time to read these instructions before you begin as they contain important information about the installation and maintenance requirements. - Page 4 S a u n a & S t e a m Steam Generator Manual Steam Generator Parts Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
- Page 5 Water In Connection 1/2 Male Brass Acid Inlet Hose Nipple for Silicone Descaling Tube Secure with cable tie Water Probe Access Water Probe Access Plate Steam Outlets 3/4” male steam outlets. Use brass fittings supplied Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
- Page 6 260 380 3/4 (2of ) 1/2” 1/2” Temperature Sensor 5m DIN cable main circuit board to controller OC-D Controller Descaler Pump 3/4” Steam Inlet Nozzles 3/4” Pressure relief Steam On Demand Steam outlet valve button Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
- Page 7 230V cable to lighting circuit (optional) Not supplied Mains input Single or Three phase supply Not supplied Isolator Switch Mains isolator Not supplied Power to descaler pump 230V power cable for descaler pump Supplied Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
- Page 8 S a u n a & S t e a m Steam Generator Manual Jubilee clip / cable tie Jubilee clip / cable tie Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
-
Page 9: Electrical Connection
Refer the the circuit diagram on the following page for further details. Controller 230V lighting circuit Low voltage to temperature sensor Low voltage to Controller Mains in Isolator 230V ~ 1N switch 400V ~ 3N Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 10: Wiring Multiple Steam Generators
Water Inlet Water Inlet Valve Switch C/ F Valve Valve OC-S Switch C/ F OC-S OC-S Descale Liquid Descale Liquid Descale Liquid Controller Controller Inlet Pump Controller Controller Controller AC230V/1N Inlet Pump Inlet Pump Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 11: Steam Generator Frame Sizes
Clearance distances >300mm >500mm >200mm >400mm 6.3. Ventilation Ensure air flow into area where steam generator is housed. For commercial use ensure good ventilation from at least two ducts within the housing of the generator Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 12: Temperature Sensor Parameters
6.5. Temperature Sensor Parameters MODEL Detected Scope Max Cut out Size (mm) Temperature OC-S 0-110 32-230 Diagram to show location of temperature sensor and steam inlet nozzle Temperature sensor 1800mm >500mm Steam nozzle 300mm Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 13: Installation
2KW per cubic meter of air. Hot air rises so restricting the height to around 2 meters will ensure the user is sitting in the steam for higher ceilings you may need to increase the power requirement. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 14: Steam Generator Location
• Do not reduce size of steam pipe at any point • the steam pipe must not go down and then up, as this will create a trap and damage the steam generator. <10m Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 15: Water And Steam Connections
1.2 to 1.5 meters high and away from the steam outlet. Use a 4mm screw fix it in place and then connect to the wire from the controller. vi. Fix protective cover (supplied) over the temperature Temperature Sensor 4mm Screw Cover to protect the temperature sensor Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 16: Installations For Power Supply And Control Cable
The diagram on pages 6 and 7 show how the descaling solution should be connected via the pump. Ensure the the ends of the hose are held in place with cable ties. iv. Both descaling crystals and 120 litre container can be purchased from Oceanic-Saunas.co.uk Steam on Demand Function... - Page 17 When power has been switched on to the machine the keypad will sound a short beep to indicate that it has been powered up. To turn on push You should now see the default display which should look like this. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
- Page 18 C and when you are comfortable with this temperature start to increase slowly by 1 C between each bathing session. Increase Push Push Push to enter to enter to save temperature setting settings Decrease Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
-
Page 19: Steam On Demand
12 noon to 23:55 at night. viii. Once setup the home screen should look like this. ix. If you isolate power to the machine it will forget your settings and go back to default. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... - Page 20 To drain the machine you first need the screen to be off, so if it is already on push the On/off button to turn it off. Now push the Drain button, scree will illuminate and indicate the drain symbol as shown below on the right. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
-
Page 21: Troubleshooting Guide
Overheat symbol Overheat sensor tripped Reset Overheat button manually on the side of within generator the generator (see page 4 - part No.10) using small screwdriver through hole. If in doubt remove casing to reset Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 22: Maintenance
If you encounter any difficulty with this assembly procedure or think we could have explained anything more clearly we would welcome your comments, please call T: 01902 655425 or T: 01902 871127 technical help line. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk...
