Porto-Power Blackhawk Automotive is a licensed trademark

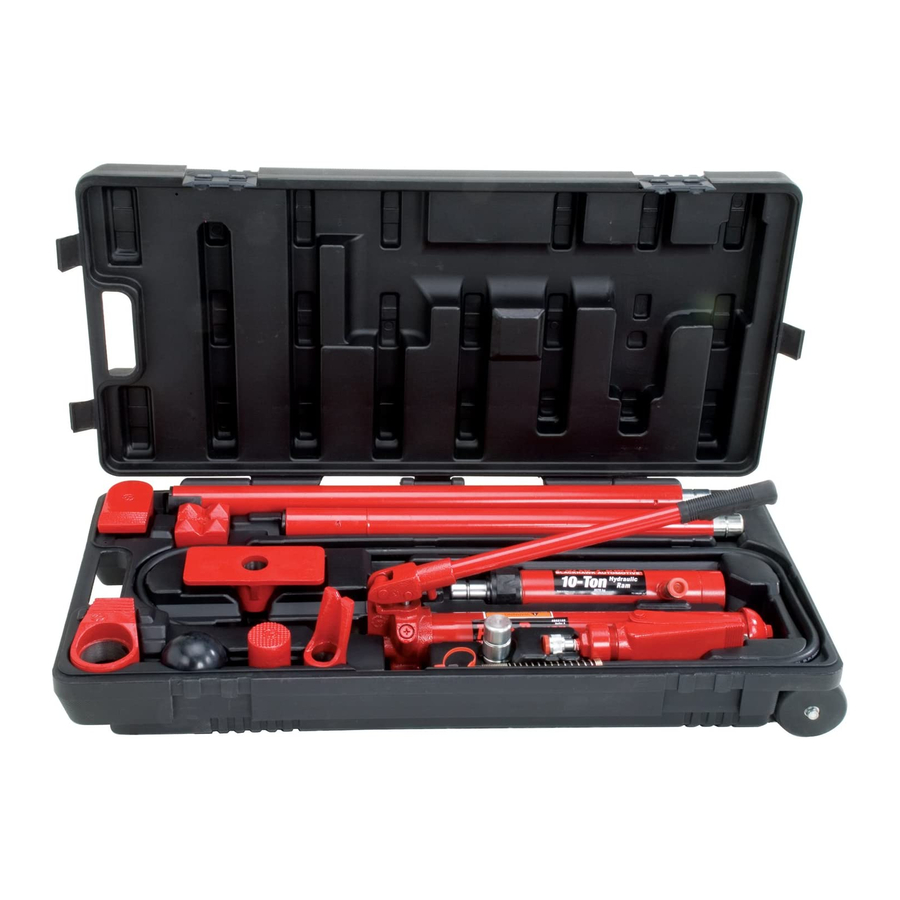

Porto-Power Kit
Operating Instructions & Parts Manual
U.S. PATENT 5,520,400
Model Number
Capacity
B65114
4 Ton
B65115
10 Ton
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
816-891-6390
sales@blackhawk-automotive.com
- Before using this product, read this manual and follow all its Safety Rules and Operating Instructions
Made in China
B65114-M0 rev 11/05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Porto-Power PORTO-POWER B65114
Summary of Contents for Porto-Power PORTO-POWER B65114
- Page 1 Porto-Power Blackhawk Automotive is a licensed trademark Porto-Power Kit Operating Instructions & Parts Manual U.S. PATENT 5,520,400 Model Number Capacity B65114 4 Ton B65115 10 Ton SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 816-891-6390 sales@blackhawk-automotive.com - Before using this product, read this manual and follow all its Safety Rules and Operating Instructions Made in China B65114-M0 rev 11/05...
-
Page 2: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy. -
Page 3: Product Description
SAVE THESE INSTRUCTIONS For your safety, read and understand the information contained within. The owner and operator shall have an under- standing of this product and safe operating procedures before attempting to use this product. Instructions and Safety information shall be conveyed in the operator's native language before use of this product is authorized. Make certain that the operator thoroughly understands the inherent dangers associated with the use and misuse of the product. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS BEFORE USE (Refer to Figure 1 on page 3) 1. Study, understand, and follow all instructions provided with and on this device before use. 2. Inspect before each use. Do not use if bent, broken, leaking or damaged components are noted. 3. - Page 5 WARNING Hydraulic Hoses and Fluid Transmission Lines • Avoid short runs of straight line tubing. Straight line runs do not provide for expansion and contraction due to pressure and/or temperature changes. • Reduce stress in tube lines. Long tubing runs should be supported by brackets or clips.
-
Page 6: Operation
OPERATION Note: Inspect before each use for evidence of fluid leaks, damaged hydraulic fittings, bent or broken attachments and missing parts. 1. Locate and close release valve by turning it clockwise until firmly closed. (Do not over tighten) 2. Operate by pumping handle. This will send fluid from the pump reservoir into the high pressure hose assembly and into the ram assembly. -
Page 7: Basic Setup
Basic Setup The capacity of the Porto-Power Kit can be significantly affected by the number of attachments used and the type of load applied. The approximate load capacity of each function setup is illustrated below. When two or more extension tubes are used together, be sure to position the shortest tube further away from the ram. -
Page 8: Troubleshooting
TROUBLESHOOTING Symptom Ram will not extend Ram will not lift to full extension Spongy effect Ram *bleeds off after lift Handle kick-back Ram will not lower after unloading Poor performance "Bleeds off" means that ram begins to slowly retract rather than maintain position How to remove faulty coupler If ram does not retract, secure load by other means. - Page 9 Replacement Parts for Model B65114 Item # Part # B65161 B65160 B65159 B65158 B65157 B65177 B65153 B65151 B65156 B65154 B65155 B65178 B65152 B65123 434-6-3313-101 434-6-3312-109 B69478 B69477 B65187 426-3-1301-203 431-6-1702-404 B65291 324-4-1900-208 B65186 B65067 B65114-L0 B65114-M0 Description Extension Tube (19-1/2") Extension Tube (16-1/2") Extension Tube (8-1/2") Extension Tube (6-1/8")
- Page 10 Replacement Parts for Model B65115 Item# Part# B65162 B65163 B65164 B65165 B65179 B65166 B65167 B65168 B65172 B65169 B65180 B65173 B65123 434-6-3313-101 434-6-3312-109 B69478 B69477 B65189 426-3-1301-203 430-6-1702-407 B65291 324-4-1900-208 B65188 B65068 B65115-L0 B65114-M0 Figure 6 - Replacement Parts Illustration for Model B65115 Description Extension Tube (27") Extension Tube (18")
- Page 11 Load - Pressure Correlation For Model B65114 & B65115 Always monitor the force applied to workpiece by using a load cell and indicator or you may monitor pressure developed in the ram by using an inline pressure gauge, then calculate the applied force using the formula: F = P x A For model B65114, A = 0.998 in²...
- Page 12 memo.
