Porto-Power Blackhawk Automotive is a licensed trademark
Porto-Power Kit
Operating Instructions & Parts Manual
Model Number
B65114
B65115

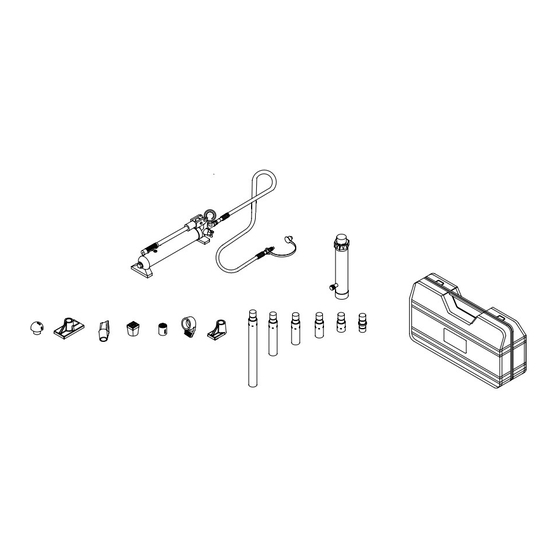

Model B65114
Model B65115
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
• Leer, comprender, y seguir las instrucciónes antes de utilizar el aparato.
• El manual de instrucciónes y la información de seguridad deben estar comunicado en lengua del operador
antes del uso.
• No seguir estas indicaciónes puede causar daños personales o materiales.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Capacity
4 Ton
10 Ton
!
ADVERTENCIA
10939 N. Pomona Ave. Kansas City, MO 64153
sales@blackhawk-automotive.com
SFA Companies
B65114-M0_102017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Porto-Power B65114
Summary of Contents for Porto-Power B65114
- Page 1 Porto-Power Blackhawk Automotive is a licensed trademark Porto-Power Kit Operating Instructions & Parts Manual Model Number Capacity B65114 4 Ton B65115 10 Ton Model B65114 Model B65115 This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
Page 2: Safety And General Information
Labels and Operator's Manuals are available from manufacturer. PRODUCT DESCRIPTION Porto-Power Kits are designed to be used for pushing, spreading, and pressing of vehicle body panels as well as various component parts and assemblies. A variety of attachments are included. B65114 is rated at 8,000 PSI;... -
Page 3: Specifications
10,000 psi. refer repairs to qualified, authorized personal. • Do not connect a ram to a pump with higher Contact Porto-power tech service for authorized pressure rating. service center. • Do not subject ram to a shock loads, a load... -
Page 4: Before Use
A = effective ram area in in become pressurized. This increases burst hazard. Ram Area of Model B65114 is: 0.998 in Damage may occur to pump and its components. Ram Area of Model B65115 is: 2.411 in Refer to Load-Pressure correlation chart on page 11. - Page 5 The approximate load capacity of each function setup is illustrated below. When two or more extension tubes are used together, be sure to position the shortest tube further away from the ram. Note: Not all accessories in the illustrations provided in the Porto-Power Kits. A. Push & Stretch...
-
Page 6: Maintenance
MAINTENANCE Cleaning 1. Inspect hoses and connections daily. Replace Periodically check the pump piston and ram for signs damaged components immediately with Porto-Power of rust or corrosion. Clean as needed and wipe with Automotive Replacement Parts only. an oily cloth. -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following information is intended as an aid in determining if problem exists. Pump and ram should be repaired only by authorized Porto-Power Service Center. For repair service, contact service center in your area. Symptom Possible Causes Corrective Action Erratic action •... -
Page 8: Replacement Parts
REPLACEMENT PARTS Not all components of the porto-power kit are replacement items, but are illustrated as a convenient reference of loca- tion and position in the assembly sequence. When ordering parts, give Model number, serial number and description below. Call or write for current pricing: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. - Page 9 Oil Filler Screw B69478 Hose Coupler, Male B69477 Ram Coupler Assy, Female F040-20012-000 Dust Cover - Hose F100-90009-K01 Pump Handle F100-80001-000 Gauge F1000S-85 Repair Kit B65115-L0 Label ( not shown) B65114-M0 Manual Figure 5 - Replacement Parts Illustration for Model B65115...
-
Page 10: One-Year Limited Warranty
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 816-891-6390 sales@blackhawk-automotive.com Porto-Power Blackhawk Automotive is a licensed trademark... - Page 11 Load - Pressure Correlation For Model B65114 & B65115 Always monitor the force applied to workpiece by using a load cell and indicator or you may monitor pressure developed in the ram by using an inline pressure gauge, then calculate the applied force using the formula: where F = Force/ Load (lb);...
- Page 12 Load - Combination Correlation For Model B65114 & B65115 Always consider the number of attachements that you are using and follow the combonation load suggestions in the Basic Setup section on page 5. Follow the below table for correlation between percentage, load and pressure.
