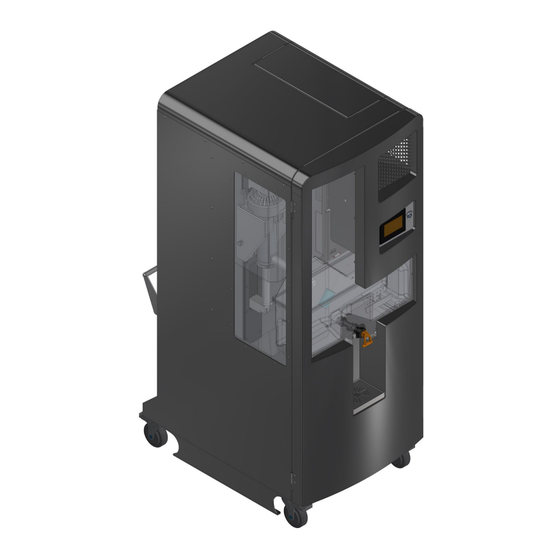

JBT Fresh'n Squeeze 2nd Generation Multi-Fruit Juicer Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

2nd Generation
Multi-Fruit Juicer
Operator Manual
June 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fresh'n Squeeze 2nd Generation Multi-Fruit Juicer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JBT Fresh'n Squeeze 2nd Generation Multi-Fruit Juicer

Summary of Contents for JBT Fresh'n Squeeze 2nd Generation Multi-Fruit Juicer

  • Page 1 2nd Generation Multi-Fruit Juicer Operator Manual June 2019...
  • Page 2 Generation Multi-Fruit Juicer Operator Manual Copyright © John Bean Technologies Corporation 2019 JBT Corporation 400 Fairway Avenue Lakeland, FL 33801 (863) 683-5411 Manual No. FNS-0012-060-EN FNS-0012-060-EN June 2019 Rev A...

  • Page 3: Table Of Contents

    Table of Contents Important Safety Information ······································ 4 Specifications ··························································· 6 General Information ·················································· 7 Operating Instructions ·············································· 9 Cleaning Instructions ················································ 19 Self Service Operating Instructions ···························· 23 Self Service Cleaning Instructions ····························· 25 Operator Do's and Don'ts ··········································· 29 Operator Maintenance ···············································...

  • Page 4: Important Safety Information

    DO NOT attempt any operation until you understand exactly how the machine functions. If uncertainty remains after studying this manual, please contact John Bean Technologies Corporation. We're here to help. With proper handling, the JBT Multi-Fruit Juicer will provide safe, efficient and convenient service for years to come. North America...
  • Page 5 Please, for your safety: FOLLOW THOSE INSTRUCTIONS AT ALL TIMES. Should the Juicer safety labels become damaged or unreadable, contact JBT Corporation for replacement labels. Safety Instructions Carefully review the following safety instructions.

  • Page 6: Specifications

    Specifications Technical Specifications Fruit size: 2 1/2" to 3 3/4" diameter (6.5 cm to 9.5 cm) Oranges — FL: ·································· 125 to 50 count Oranges — CA: ································· 138 to 48 count Grapefruit — FL: ································ 56 to 48 count Hopper capacity: ································...

  • Page 7: General Information

    General Information The JBT Corporation Juicer is designed to provide years of dependable service. It uses a unique patented design to extract every available amount of juice from the fruit with the least amount of peel oil. The peel is completely separated from the juice and juice sacs before being compressed and strained.
  • Page 8 Figure 2. Juicing Components Assembly FNS-0012-060-EN June 2019 Rev A...

  • Page 9: Operating Instructions

    Operating Instructions Equipment Check Before plugging the Multi-Fruit Juicer into an electrical outlet, the following steps must be performed: Locate the Multi-Fruit Juicer on a level surface. This will prevent fruit feed problems. CAUTION: WHEN MOVING JUICER, ALWAYS TRANSPORT ON LEVEL SURFACE. USE RAMPS IF NECESSARY.
  • Page 10 Juicing Turn on Juicer. Push the ON-OFF button. Light on button turns on. Feed fruit into the Juicer. Open the hopper door. Dump carton of fruit into hopper. If necessary, place fruit individually into hopper. Close the hopper door. CAUTION: TO AVOID PHYSICAL INJURY, USE CAUTION WHEN LIFTING HEAVY WEIGHTS OVERHEAD.
  • Page 11 Touch Screen Juicer Operation Early models of this juicer used word labels instead of symbols, however, the location of the buttons and their functions remain the same. Standard Start Screen Self-Service Start Screen A. Start Button – Starts Juicing n self-service machines, pulling down on the handle starts juicing) B.
  • Page 12 Processing Screens These screens appear when the juicer is actively running. There are two animations available which can be chosen on the settings page. A. Stop Button – Juicer will continue to run until it reaches the point when the cups are farthest apart. NOTE: In self-service tap mode, the tap handle must be held down for this to function.
  • Page 13 Juice Tank Full When this screen appears, it indicates that the juice tank is full and the juicer has stopped. The juicer will not run again until juice is removed from the tank. FNS-0012-060-EN June 2019 Rev A...
  • Page 14 Settings Screen A. Speed setting - The juicer can run at 25, 29, or 33 fruit per minute. Be aware that some harder or larger fruit may not process at the higher speeds. If excessive stalling or mis-feeding is observed, switch speed to a lower setting to improve performance. B.
  • Page 15 Status Screen A. Total Cycles – indicates the total number of cycles the juicer has run. B. Cycles since last service – shows how many cycles have run since the last time the juicer was serviced C. Last Service Date – shows what the date of the last service was for the juicer. The format for this date is: Month Day Year D.
  • Page 16 Informational Screens Front Door Open This screen indicates that the front door is not properly closed. The juicer will not run until the door is fully closed Hopper Door Open This screen indicates that the hopper door or fruit loading door on top is open. The juicer will not run while this door is open FNS-0012-060-EN June 2019...
  • Page 17 Position Sensor Error This error message occurs because the juicer is operating, but the position sensor has not been detected. The juicer is still capable of running, but the following features will be disabled or not function properly: speed setting, stop button, cycle counting. Motor Fault If this screen appears it indicates that the motor has stopped.
  • Page 18 Safety Circuit When this message occurs, it indicates that there is a problem with one of the safety sensors. The juicer will not run until the problem has been fixed. Battery Warning If this error message occurs, it indicates that the battery in the touch screen is running low. As the message states, if the battery dies completely the machine may not run at all.

  • Page 19: Cleaning Instructions

    DO NOT use abrasive pads such as green scrub pads or steel wool. The recommended cleaner is JBT Corporation brand CorKlean. CorKlean is a low-foaming alkaline equipment cleaner. It is safe on aluminum, 100% water soluble and free rinsing.
  • Page 20 Remove juicing components (see Figure 6). a. Cups should be separated. (Juicer should have been turned off using the STOP button on the touch screen, see Step 1.) b. Remove reservoir and juice nozzle, then lift splash shield off mounting brackets. CAUTION: DO NOT PLACE HANDS OR FINGERS BETWEEN CUPS.
  • Page 21 Cleaning Instructions (continued) 11. If possible, hose down juicing area and cover. If location prohibits using a hose to clean juicing area and cover, ensure waste container is in place. Wash down the exposed juicing area and cover with a sponge or spray applicator using the recommended cleaning solution.
  • Page 22 Figure 6. Removing/Replacing Juicing Components FNS-0012-060-EN June 2019 Rev A...

  • Page 23: Self Service Operating Instructions

    Self-Service Option Operating Instructions Equipment Check Before plugging the Multi-Fruit Juicer into an electrical outlet, the following steps must be performed: 1. Locate the Multi-Fruit Juicer on a level surface. This will prevent fruit feed problems. CAUTION: WHEN MOVING JUICER, ALWAYS TRANSPORT ON LEVEL SURFACE. USE RAMPS IF NECESSARY.
  • Page 24 Juicing 1. Turn on Juicer. Push the ON-OFF button. Circle on button will illuminate. 2. Feed fruit into the Juicer. a. Open the hopper door. b. Dispense carton of fruit into hopper. If necessary, place fruit individually into hopper. c. Close the hopper door. CAUTION: TO AVOID PHYSICAL INJURY, USE CAUTION WHEN LIFTING HEAVY WEIGHTS OVERHEAD.

  • Page 25: Self Service Cleaning Instructions

    DO NOT use abrasive pads such as green scrub pads or steel wool. The recommended cleaner is JBT Corporation brand CorKlean. CorKlean is a low-foaming alkaline equipment cleaner. It is safe on aluminum, 100% water soluble and free rinsing. CorKlean has been especially formulated for cleaning food processing equipment and is USDA accepted.
  • Page 26 Place juicing components into waste container. 7. Prepare cleaning solution. JBT Corporation brand CorKlean is recommended, see Operator Manual Page 19. Read the product label. Follow the manufacturer's mixing directions and safety precautions. 8. Immerse all components in cleaning solution.
  • Page 27 Self Service Option Cleaning Instructions (continued) 11. If possible, hose down juicing area and cover. If location prohibits using a hose to clean juicing area and cover, ensure waste container is in place. Wash down the exposed juicing area and cover with a sponge or spray applicator using the recommended cleaning solution.
  • Page 28 Figure 1. Removing/Replacing Self-Service Juicing Components FNS-0012-060-EN June 2019 Rev A...

  • Page 29: Operator Do's And Don'ts

    Operator Do's and Don'ts Do's Don'ts DO NOT remove juicing components or panels before Unplug juicer before removing splash shields or panels unplugging Use light water spray when rinsing juicer DO NOT use high pressure or volume water when rinsing juicer Wipe off touch screen and electrical connections with DO NOT spray water with hose to clean touch screen or...
  • Page 30 Figure 7. Proper Orifice Tube Installation FNS-0012-060-EN June 2019 Rev A...

  • Page 31: Operator Maintenance

    Operator Maintenance Before performing any maintenance, DISCONNECT ELECTRICAL PLUG. LOCK FRONT AND REAR CASTER WHEELS. After every juice run: Check cutter and knives for sharpness. Refer to Figure 8 to determine condition of cutter. If dull, sharpen with a whetstone provided. Refer to Figure 8 to sharpen cutter.
  • Page 32 Figure 8. Sharpening Cutter FNS-0012-060-EN June 2019 Rev A...
  • Page 33 Check for loose or missing nuts and bolts. a. Tighten or replace nuts and bolts as necessary. b. DO NOT exceed torque ranges specified. c. ALWAYS use JBT Corporation recommended spare parts. Periodic Inspection Perform the following steps every week.

  • Page 34: Troubleshooting

    Troubleshooting Condition Corrective Action Reset breaker • Juicer will not run Power cord plugged in? • Doors and covers closed and locked? • • Orifice tube installed incorrectly Orifice tube stuck in strainer tube • Excess pulp in strainer, thoroughly clean out pulp from strainer •...
  • Page 35 Troubleshooting (continued) Juicer will not start • Juicer is not plugged into electrical outlet. Building circuit breaker or GFI has tripped (reset). Covers are not completely closed. Open and close both doors, make sure the sensors are securely fastened and then ensure the doors are firmly closed.
  • Page 36 Troubleshooting (continued) Juicer stalls trying to squeeze fruit • 1. Fruit has part of stem on it. Turn off Juicer and unplug . Remove fruit from the Juicer and restart. 2. Peel is too thick. Turn off Juicer and unplug. Remove fruit from the Juicer and restart. 3.

  • Page 37: Illustrated Parts Lists

    Juicing Components Item Qty Part Number Description 004220037 Pin, Quick Release, Ring Grip 004406003 Screw, Machine, Round, #4-40 X 3/16" Lg, 304SS 06000004 Cup, Lower, Machined 06000022 Nozzle, Straight, FDA Grade 06000027 Cup, Upper, Assembly 06000225 Cutter and Knives, Machined 06000098 Nut, Spanner 06000108...
  • Page 38 Self-Service Specific Juicing Components Item Qty Part Number Description 06010494 Handle Momentary 06010495 Handle Continuous 06010485 Spout Cap 06010482 Spout Body 06010479 Self-Service Housing 06010442 Manifold with Vent 06010429 Drip Tray Cover 009210043 Seat Cup 009210042 Stem 009210041 Spring 007486119 O-Ring Nozzle Figure 11.
  • Page 39 Splash Shield, Waste Bin, Tools and Accessories Item Qty Part Number Description 003091001-2 Cleaner, Corklean, 2 lbs 009080327 Brush, Dish 009080328 Brush, Tube, 1" 009092018 Cap, Cover 009092023 Waste Container, 21" X 17" X 12", Polyethylene, Grey 009710031 Stone, Sharpening, Half Round 06000077 Tool, Wrench, 5/16"...
  • Page 40 FNS-0012-060-EN June 2019 Rev A...
