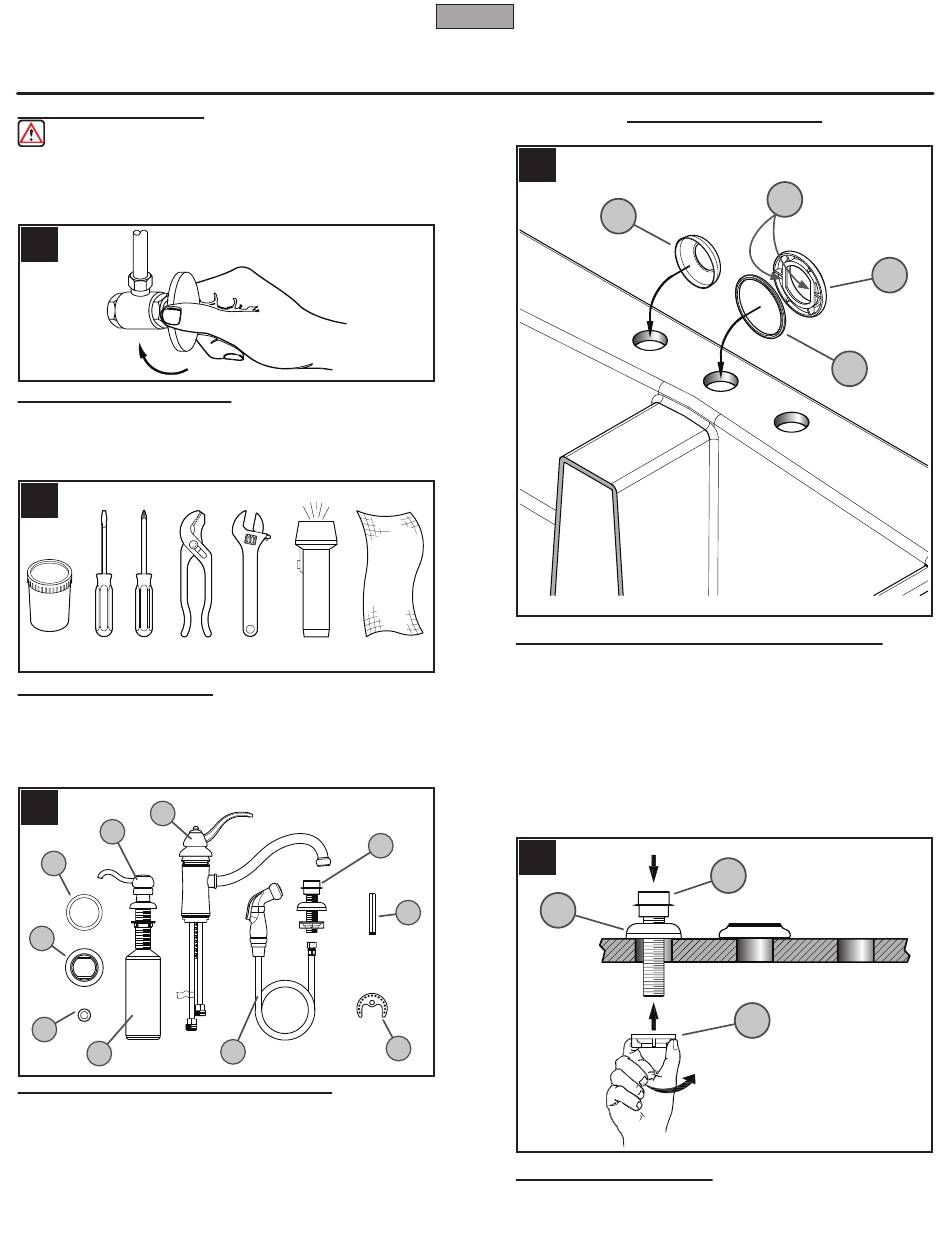

Installation Steps - Black & Decker Price Pfister Marielle 34 Series Manual

Thank you for purchasing this Price Pfister kitchen faucet. All Price Pfister products are carefully engineered, and factory tested to provide long
trouble-free use under normal conditions. This kitchen faucet is easy to install using basic tools and our easy to follow illustrated instructions.
If you have any questions regarding your kitchen faucet installation call 1-800-Pfaucet (1-800-732-8238)
1 BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding. Price
Pfister recommends calling a professional if you are uncertain about installing
this product!
This product should be installed in accordance with all local and state plumbing and
building codes.
2
2 SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are
usually found under the sink or near the water meter. If you are replacing an
existing faucet, remove the faucet from the sink and clean the sink surface
thoroughly.
3
3 TOOLS RECOMMENDED
• Plumber's putty • Slotted screwdriver
• Pliers • Adjustable wrench
• Cloth
Your installation may require new supply lines and / or shut-off valves or other
additional tools.
4
A
K
D
B
C
J
4 CHECKING THE CONTENTS OF THE BOX
Upon opening the box, check to ensure that all of the following items are
included:
A Faucet Assembly
C Optional Decorative Handle Cap
E Long Nut with
G Side Spray
J Soap Dispenser
If any of these items are missing, please contact Price Pfister Consumer
Services at 1-800-Pfaucet (1-800-732-8238).
• Phillips head screwdriver
• Flashlight
H
E
F
G
B Mounting Ring
D Gasket
F Metal Washer
H Hose Guide with Flange
K Soap Dispenser Head
ENGLISH
5
5C
5 INSTALLING MOUNTING RING & GUIDE FLANGE
Place Mounting Ring (5A) over Plastic Gasket (5B) and sink hole. If desired,
place a small bead of plumber's putty to the underside of the Hose Guide Flange
(5C). Align both Mounting Ring (5A) and Hose Guide Flange (5C) to the center
of sink holes. Ensure that Mounting Ring (5A) sits with the Flats (5D) parallel
with the outer sink holes.
6
6B
6 SECURING HOSE GUIDE
Insert Hose Guide (6A) into Hose Guide Flange (6B) and onto the sink hole.
From underneath sink, secure the Hose Guide (6A) by screwing the Plastic
Locknut (6C). Hand tighten.
2
.

INSTALLATION STEPS

5D
6A
6C
5A
5B
