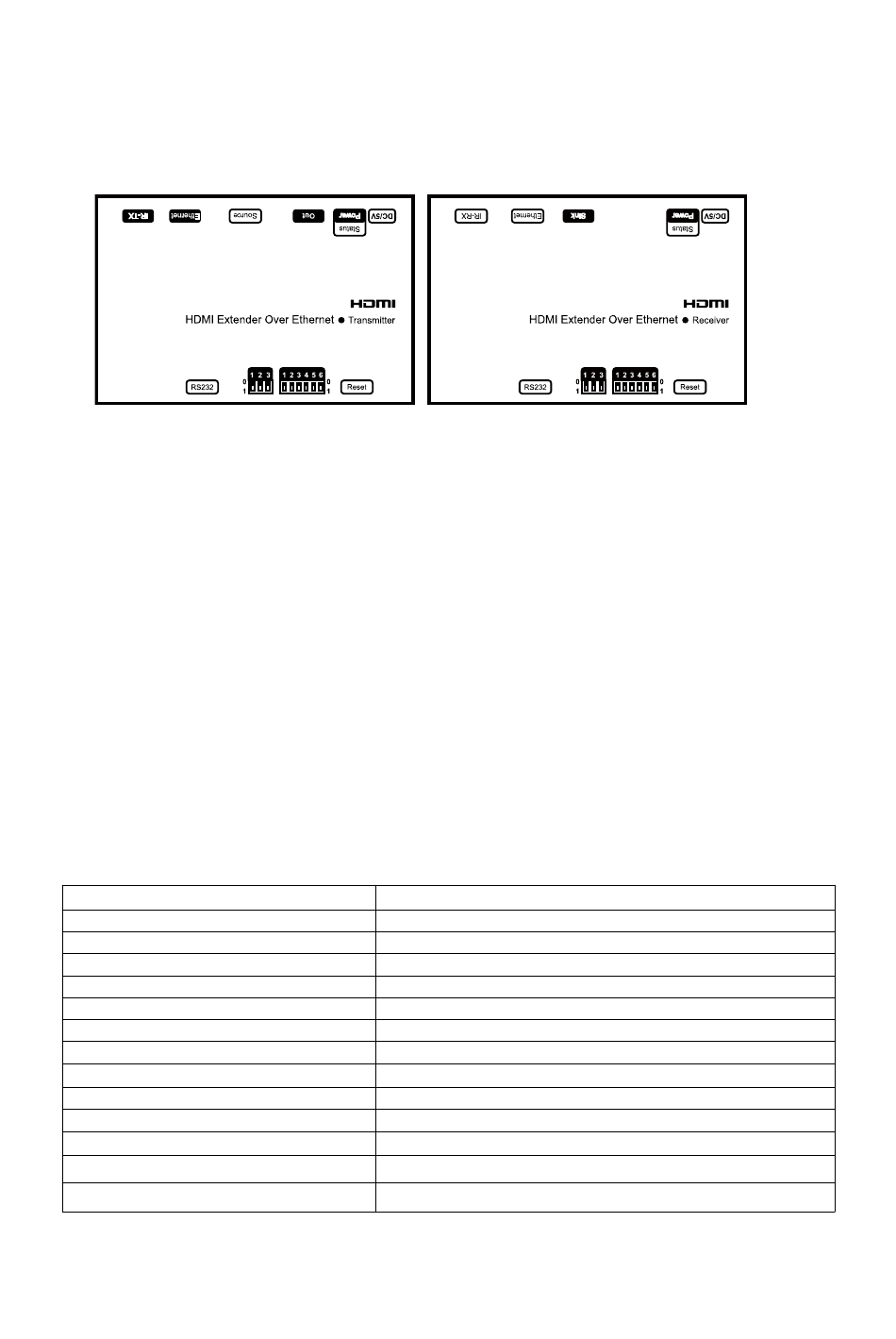

120m HDMI Extender over Ethernet with H.264
Support many to many broadcasting and IR control
1. Features
1). Use H.264 as compression method
2). Audio and Video transmission Synchronously
3). Support resolution up to 1080p @ 60HZ, data transmission speed is 2.25 Gbps
4). Support LPCM audio format, sample rate is 48KHZ
5). Comply with TCP/IP protocol for transmission, occupy 15M bandwidth on Ethernet.
6). Compliant HDCP
7). Support RS232 pass through
8). Support IR control to the source
9). Support point to point, point to many, many to many broadcasting network configuration
10).Support IGMP switch
11). Support DHCP, switch assign IP for the Transmitter and Receiver automatically
12). With 3 Bit DIP to choose baud rate
13). With 6 Bit DIP to manage group ID
14). Support web browser and DIP to switch the sources
15). With HDMI output for local display on Transmitter
16). One button for recovery
17). DC 5V 2A power supply, power consumption less than 3 W
2. Specifications
Operating temperature
Operating Humidity Range
Data compression
Data transmission protocol
Support Video format
Support Audio format
Bandwidth required
HDCP
IR
RS232 Baud rate
Switch request
Group ID
TX default IP
RX default IP
-5 to +35℃(+23 to +95℉)
5 to 90%RH (No Condensation)
Comply to H.264
Comply to TCP / IP
480i/480p/576i/576p/720p/1080i/1080p@60HZ
LPCM, Audio sampling rate 48KHZ
15 Mb
Compliant HDCP 1.3
Support IR control, IR frequency 20 ~ 60 KHZ
Default 2400 HZ, total 8 kinds optional
Support IGMP, support DHCP
Group 00 ~ group 63
192.168.1.11
192.168.1.12
