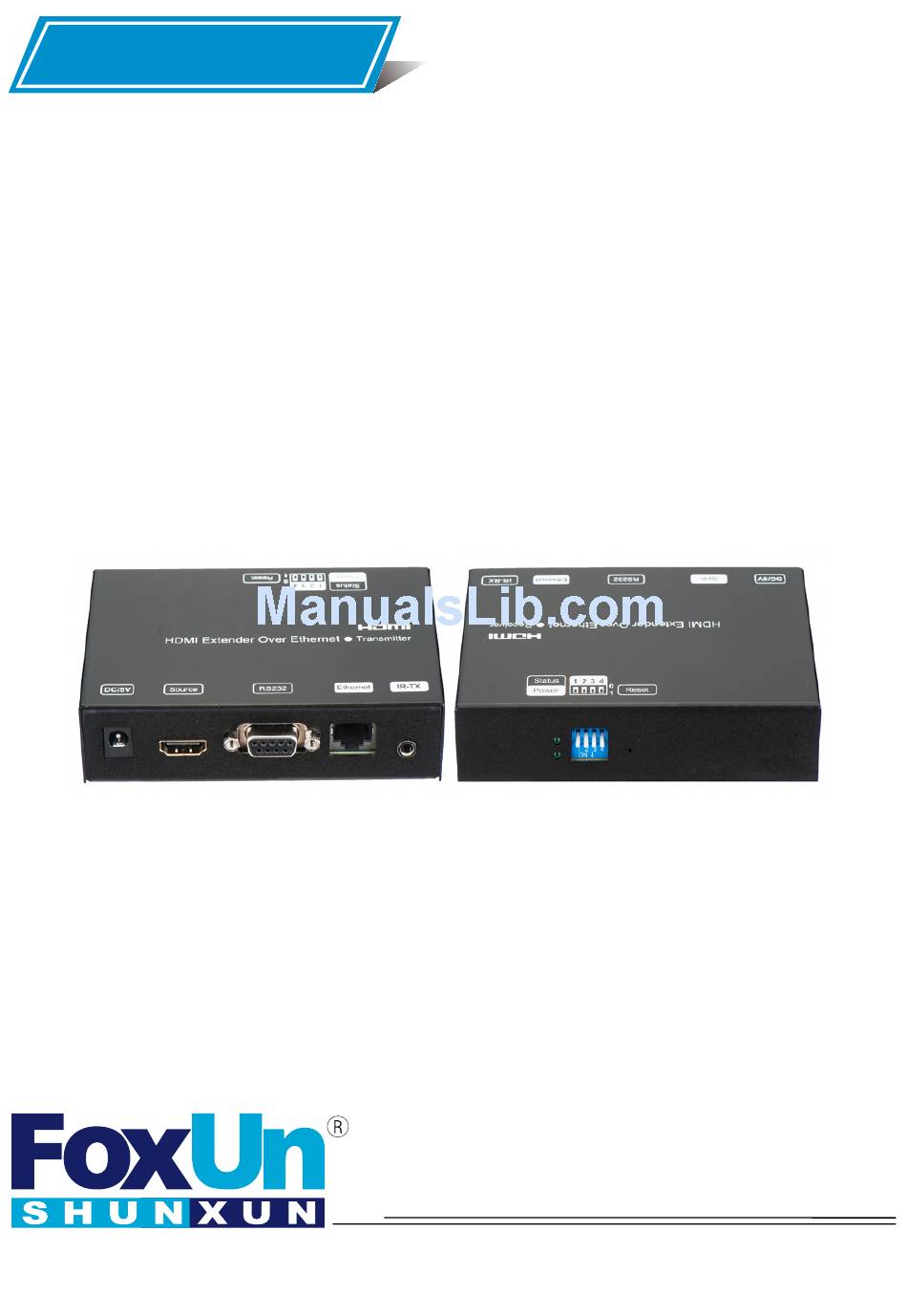

- Page 1 Operating Instructions Operating Instructions 120m HDMI Extender over Ethernet with RS232, POE, IR Model: SX-EP25 www.foxun.com SHENZHEN SHUNXUN ELECTRONICS CO.,LTD...
- Page 2 Dual power input: 802.3af compliant POE & DC 5V. HDCP Compatible. Supports RS232. Size:L94xW93.5xH24.6mm. TABLE OF CONTENTS Speci cations Package Contents Panel Descriptions Connecting and Operating Typical Application Maintenance Product Service Warranty SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 3 Note2: IP and MAC address must be different for one TX to many RX or many TX to many RX con guration. PACKING CONTENTS 1) Main Unit. Transmitter & Receiver HDMI Extender 2) Power adapter DC 5V 1A x2PCS 3) IR-TX cable & IR-RX cable 4) Operating Instruction SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 4 Use 4bits DIP switch to select 16 groups ID ( such as 0001,0010,0101 etc,) Default TX unicast IP address is 192.168.168.55 , it can be configured from webpage. TX Group IP address: 239.168.168.xx, (xx is the value of bits[2:0]) SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 5 120m HDMI Extender over Ethernet, with RS232, POE, IR Receiver Panel ① ② ③ HDMI Output DIP switch Indicator of power input ④ ⑤ ⑥ Status of signal connection Power input port HDMI Output ⑦ ⑧ RS232 Ethernet port ⑨IR-RX port SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 6 Please make sure power on the transmitter and receiver first, then power on the source! HDMI cable HDMI cable HDMI cable IR-TX cable HDMI Source Transmitter Receiver IR-RX cable HDMI Display DVD or STB remote Free rotate camera SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 7 DVD or STB remote Free rotate camera Free rotate camera Free rotate camera Free rotate camera Modify the TX and all RX for a different IP & MAC address in LAN (local area network）to avoid conflict. SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 8 When you set up the group ID for each transmitter just like this : TX1 (0001) TX2 (0101) TX3 (0100) Now, If you need display Source2 on TV1, then just set Group ID of RX1 0101,same as TX2: 0101 (refer to Diagram). SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 9 Free rotate camera Free rotate camera DVD or STB remote Free rotate camera Free rotate camera Modify all TX and all RX for a different IP & MAC address in LAN (local area network）to avoid conflict. SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 10 10 seconds, the green LED light starts working, at this time to press the reset button about 5-10 seconds, then the green light will go out, you have successfully restored IP address to factory IP address now. SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
- Page 11 (eg: If you need send “5A”, the IP address of transmitter is 192.168.168.55, “CO A8 A8 37” is the Hex format of IP address 192.168.168.55, then you should send “CO A8 A8 37 5A”). SHENZHEN SHUNXUN ELECTRONICS CO.,LTD www.foxun.com...
