Genie 38647R.S Replacement Instructions

Control Board Replacement Instructions

!
WARNING
BE SURE ELECTRICAL POWER HAS BEEN DISCONNECTED FROM THE INPUT POWER LINES PRIOR TO REMOVING ANY ELECTRICAL
COMPONENT COVER.
!
WARNING
ANY AND ALL REPAIRS MADE TO THIS UNIT MUST BE PERFORMED WITH THE DOOR DISCONNECTED FROM THE UNIT AND IN THE
CLOSED POSITION.
NOTE: Rail not shown, rail removal is not necessary for this repair.
These instructions are written assuming that you will have ample room around unit to perform this repair. Some rare instances will
require removal of the unit from it's mounting hardware and repair made on a bench or floor. Refer to your owners manual and/or instal-
lation poster for proper assembly and/or programming and carefully read and understand all warnings and cautions pertaining to your
unit. Manuals/instructions can be downloaded from our websites. Refer to your unit label for website information.
Parts Included in this kit: Control board assembly, 2 mounting screws.
Tools Required: 1/4" nut driver, small common screwdriver.
Approximate Time Required: 30 Minutes.
1. Remove power from operator.
2. Press down on tabs to remove lens. FIG-1
3. Remove light bulb.
4. Note locations and remove BWC (Basic Wall Control) and STB (Safe-T-Beam
on orange tabs to remove wires. FIG-2
5. Using a 1/4" nut driver or common screw driver, remove the 3 opener cover screws and opener cover. FIG-2

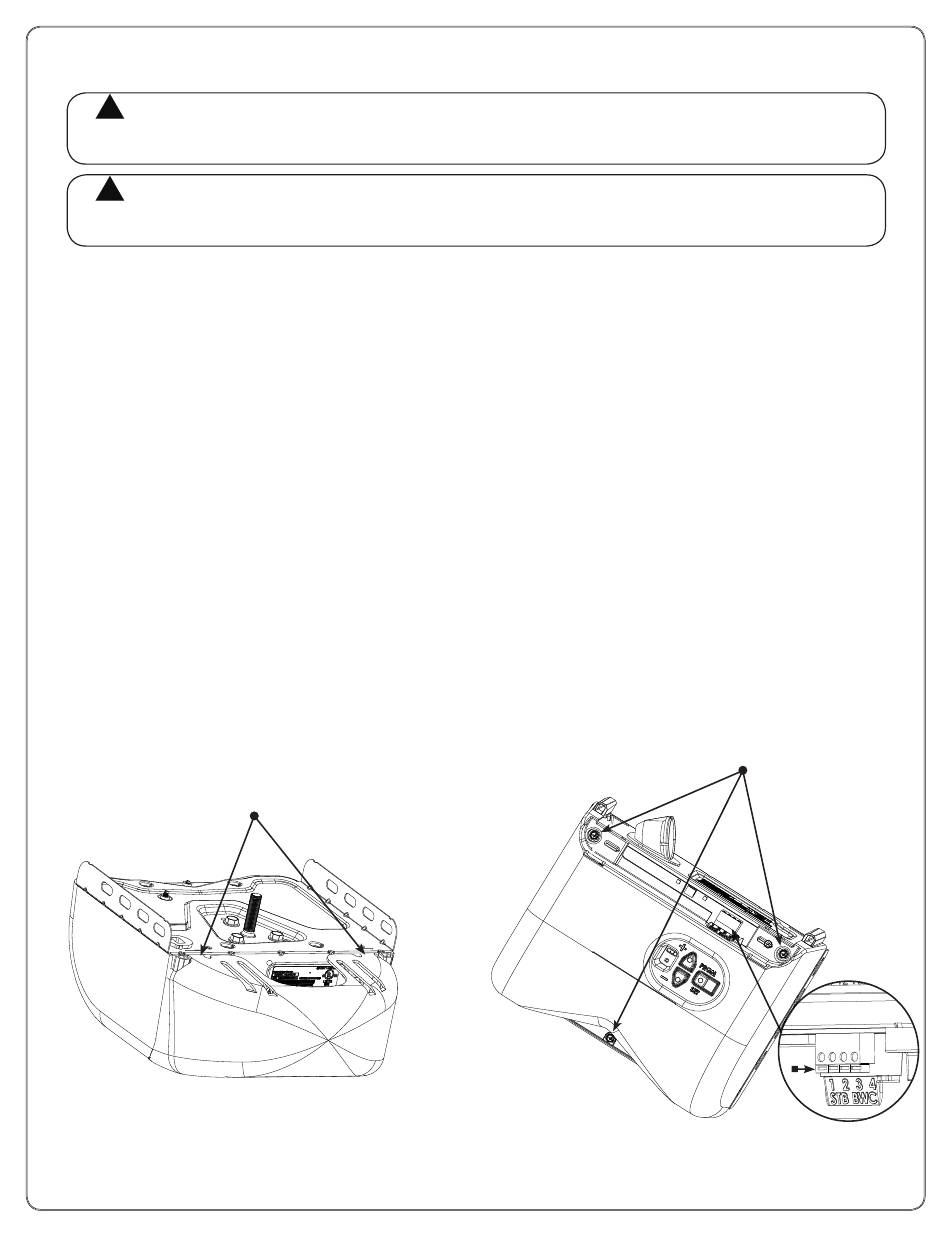

FIG. 1
Lens
38653502325 10/13
Tabs
) wires. Use small screwdriver to press in
®
FIG. 2
Cover Screws
